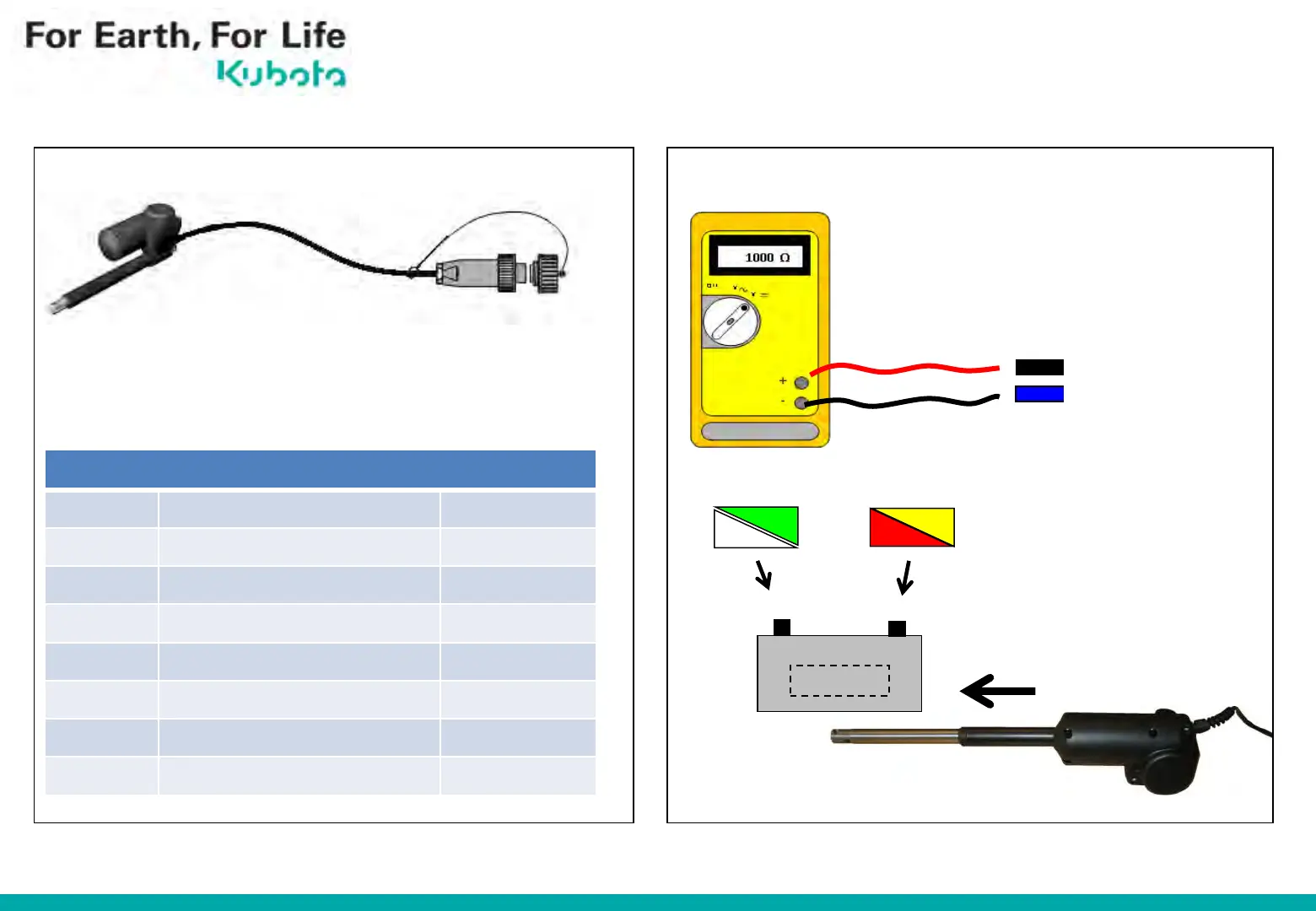

Actuator with connector
Contact Colour Signal
1 Brown Pot +
2 Blue Pot S
3 Black Pot -
4 Green M+
5 Red M-
6 Yellow M-
7 White (orange) M+
Measuring and testing actuator opening
Accu (-)
Accu (+)
12 V
4 and 7
5 and 6
Connect the contact 4 and 7 (green white) to the “-”
and the contact 5 and 6 (red yellow) to the “+“ the
actuator will open.
The resistance, of the potential meter, between the
connector 3 and 2 will increase until +/-l 1000 Ohm
Measure with a resistance
meter between black and
blue.
6 Varimeter PS EDII
6.4 In- and output
Actuator connections
6.5 Measure actuators
60
