[3] DISASSEMBLING
Universal Joint and Covers

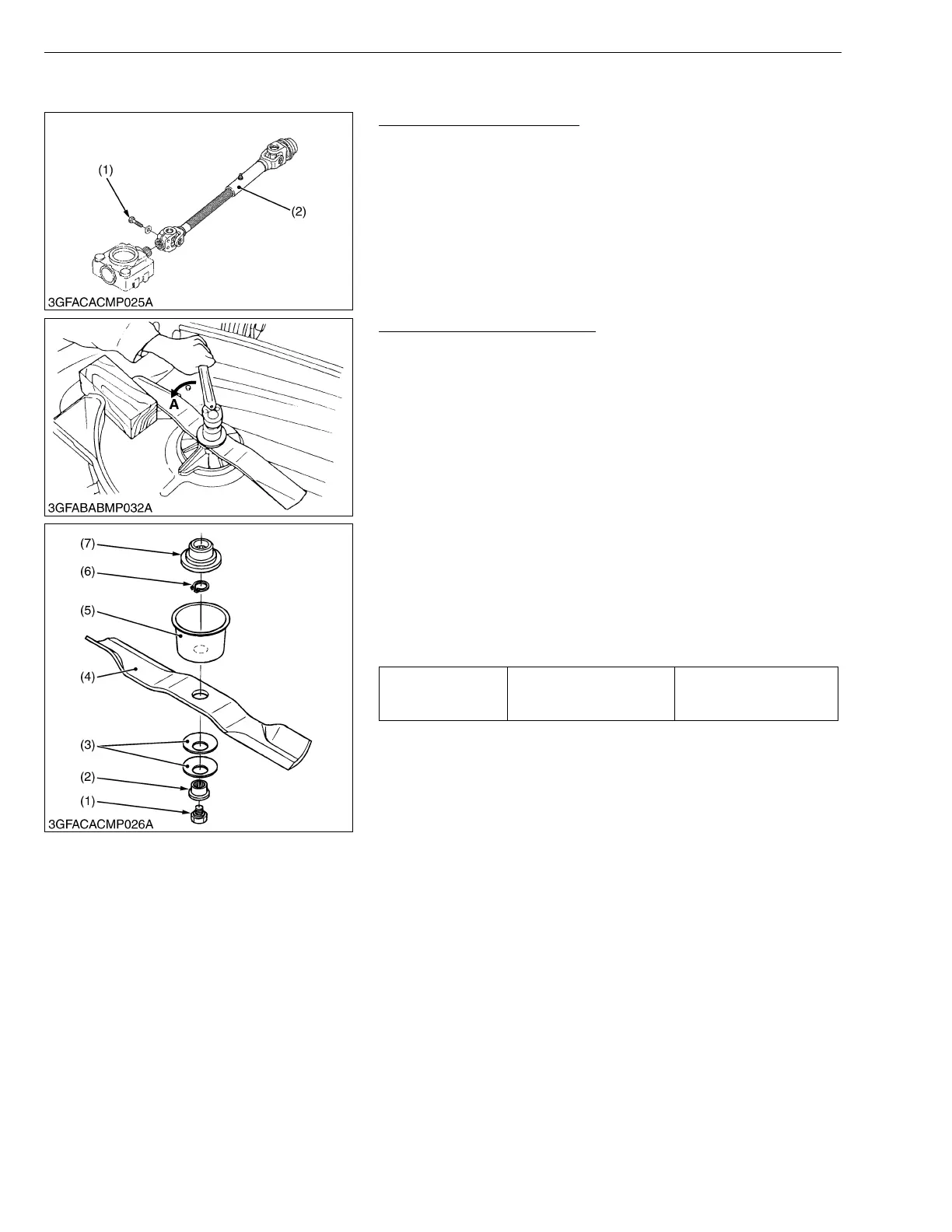

1. Remove the screw (1), and remove the universal joint (2).
2. Remove the left and right covers.
W1021193
Mower Blade and Blade Boss
1. Turn over the mower.
2. Unscrew the mower blade mounting screw (1), and remove the
spline boss (2), two cup washers (3), mower blade (4) and dust
cover (5).
3. Remove the external snap ring (6).
4. Remove the blade boss (7).
NOTE
■
• Wedge a block of wood between the mower blade and
mower deck that it will hold the mower blade safely while
loosing or tightening the mower blade mounting screw (1).
(When reassembling)
• Be sure to assemble two cup washers between the mower blade
(4) and spline boss (2).
IMPORTANT
■
• Make sure the cup washers (3) are not flattened out or worn,
causing mower blade to slip easily.
Replace the cup washer (3) if it is damaged.
W1021356
(1) Screw (2) Universal Joint
Tightening torque
Mower blade mounting
screw
98.1 to 117.7 N·m
10.0 to 12.0 kgf·m
72.2 to 86.8 ft-lbs
(1) Mower Blade Mounting Screw
(2) Spline Boss
(3) Cup Washer
(4) Mower Blade
(5) Dust Cover
(6) External Snap RIng
(7) Blades Boss
A : Loosen
