ZD18
(
F
)
,ZD21
(
F
),
ZD25F,ZD28
(
F
)

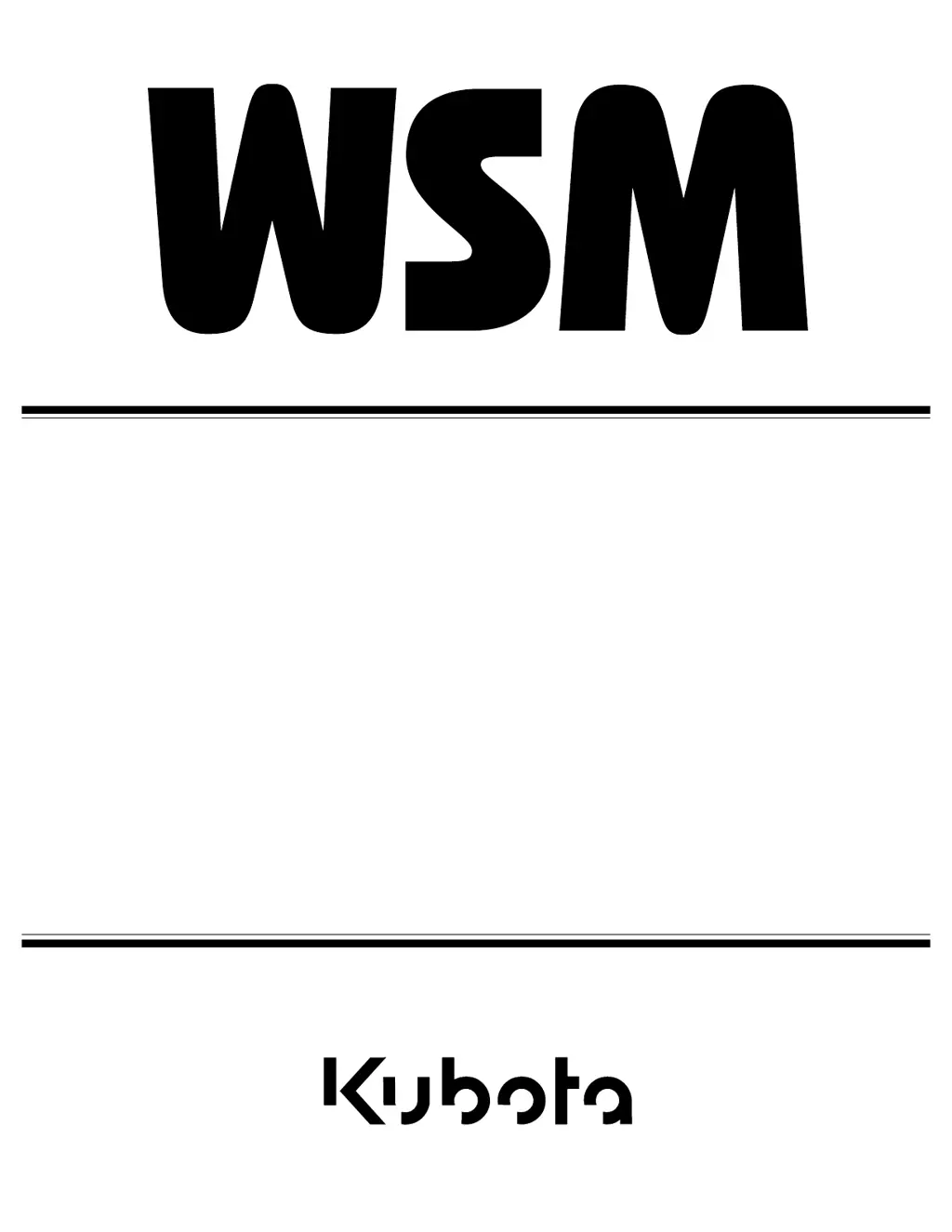

WORKSHOP MANUAL
ZERO TURN MOWER
KiSC issued 04, 2009 A

Table of Contents

Questions and Answers

  • A
    adam45Aug 20, 2025
    What to do if Kubota WSM Lawn Mower has low oil pressure?
    • W
      William DuarteAug 20, 2025
      If you're experiencing low oil pressure, you can replenish the engine oil, clean the oil strainer, change the engine oil filter cartridge, clean or replace the relief valve, replace the relief valve spring, replace the main bearings, metals, or crankshaft, replace the crankpin bearings, replace the rocker arms, rocker arm brackets, or rocker arm shaft, clean the oil passage, use the specified type of oil, or repair or replace the oil pump.
  • C
    charles43Aug 22, 2025
    What to do if Kubota WSM engine overheated?
    • M
      Mark WolfAug 22, 2025
      If your engine is overheating, try these solutions: Replenish engine oil, replace the fan belt or adjust the fan belt tension, replenish coolant, clean the radiator net and radiator fin, clean inside of radiator or replace radiator, clean or replace coolant flow route or replace the radiator cap. Also, loosen the load, replace the head gasket, adjust the injection timing, or use the specified fuel.
  • S
    Sheri DiazAug 26, 2025
    What to do if Kubota WSM Lawn Mower has deficient output?
    • C
      calvin26Aug 26, 2025
      If you notice deficient output, you can adjust the injection timing, repair or replace the engine’s moving parts, repair or replace the injection pump, repair or replace the nozzle, or replace the head gasket and tighten the cylinder head screws, glow plugs, and nozzle holders.
  • R
    richardsonmatthewAug 28, 2025
    What to do if Kubota WSM engine revolution is not smooth?
    • P
      paynemaryAug 28, 2025
      If the engine revolution isn't smooth, try replacing the fuel filter, cleaning or replacing the air cleaner element, tightening the retaining nut, repairing or replacing the injection pump, adjusting the nozzle injection pressure, repairing or replacing the injection nozzle, or repairing the governor.
  • K
    Katrina WheelerAug 31, 2025
    Why Kubota Lawn Mower has excessive lubricant oil consumption?
    • B
      Brian KellyAug 31, 2025
      If there is excessive lubricant oil consumption, consider shifting the ring gap direction, replacing the oil ring, replacing the piston, replacing the valve and valve guide, or replacing defective seals or packing.
  • S
    Scott ParkerSep 2, 2025
    What to do if Kubota WSM emits black or dark gray exhaust gas?
    • S
      Sydney VanceSep 2, 2025
      If you observe black or dark gray exhaust gas, you can lessen the load, use the specified fuel, replace the fuel filter, clean or replace the air cleaner element or repair or replace the nozzle.
  • W
    William HarringtonSep 5, 2025
    What to do if Kubota WSM has fuel mixed into lubricant oil?
    • J
      jessicahullSep 5, 2025
      If fuel is mixed into the lubricant oil, you can replace the pump element or injection pump, repair or replace the nozzle, or replace the injection pump.
  • F
    fspenceSep 8, 2025
    What to do if Kubota WSM Lawn Mower emits white or blue exhaust gas?
    • K
      Kenneth HallSep 8, 2025
      If you observe white or blue exhaust gas, you can reduce to the specified engine oil level, repair the piston ring and bore oversize piston, adjust the injection timing, or replace each bearings.
  • R
    rsmithSep 12, 2025
    What to do if Kubota WSM has high oil pressure?
    • E
      Erica HansenSep 12, 2025
      If there is high oil pressure, you can use the specified type of oil or replace the relief valve.
  • B
    bdelgadoSep 13, 2025
    What to do if Kubota WSM has water mixed into lubricant oil?
    • S
      Steven HarrisonSep 14, 2025
      If water is mixed into the lubricant oil, you can replace the head gasket or replace the cylinder block or cylinder head.

Summary

SAFETY INSTRUCTIONS

BEFORE SERVICING AND REPAIRING

Essential safety checklist and procedures before starting maintenance.

SAFETY WORKING

General guidelines for safe operation and maintenance practices.

PREPARE FOR EMERGENCIES

Recommendations for keeping first aid and emergency contacts ready.

SAFETY DECALS

Information on identifying, maintaining, and replacing safety labels.

SPECIFICATIONS

Engine Specifications

Detailed technical specifications for the engine models (ZD18, ZD21, ZD28).

Capacities

Information on fuel tank, engine oil, coolant, and transmission fluid capacities.

Dimensions

Physical measurements including length, width, height, and wheel base.

G. GENERAL

1. IDENTIFICATION

Guide to locating machine, engine, and mower serial numbers for reference.

4. LUBRICANTS, FUEL AND COOLANT

Details on recommended lubricants, fuel types, and coolant specifications.

5. TIGHTENING TORQUES

Specified torque values for various screws, bolts, and nuts.

6. MAINTENANCE CHECK LIST

A periodic maintenance schedule outlining checks and replacements.

ENGINE

1. TROUBLESHOOTING

Guide to diagnosing and resolving common engine operational issues.

5. CHECKING, DISASSEMBLING AND SERVICING

Detailed procedures for engine disassembly, assembly, and servicing.

TRANSAXLE

2. TRAVELLING SYSTEM

Details the hydrostatic transmission, including structure, pump, motor, and operation.

4. CHECKING AND ADJUSTING

Procedures for checking and adjusting neutral position, creep speed, and maximum speed.

5. DISASSEMBLING AND ASSEMBLING

Step-by-step instructions for separating and reassembling the transaxle.

FRONT AXLE

1. STRUCTURE

Describes the construction and support mechanism of the front axle.

4. CHECKING, DISASSEMBLING AND SERVICING

Procedures for checking and adjusting the front axle pivot.

HYDRAULIC SYSTEM

1. HYDRAULIC CIRCUIT

Diagram and explanation of the overall hydraulic system operation.

5. MOWER LINKAGE

Describes the mechanism for lifting and adjusting the mower deck height.

ELECTRICAL SYSTEM

1. WIRING DIAGRAM

Electrical schematics for the tractor's electrical system.

2. STARTING SYSTEM

Explanation of the starting system operation and troubleshooting.

5. CHECKING, DISASSEMBLING AND SERVICING

Procedures for checking and servicing battery, starting, charging, lighting, and gauges.

ROTARY MOWER

1. POWER TRANSMISSION

Explains how power is transmitted from the PTO to the mower blades.

4. CHECKING, DISASSEMBLING AND ASSEMBLING

Procedures for adjusting anti-scalp rollers and cutting height.
