1-S29
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
ENGINE

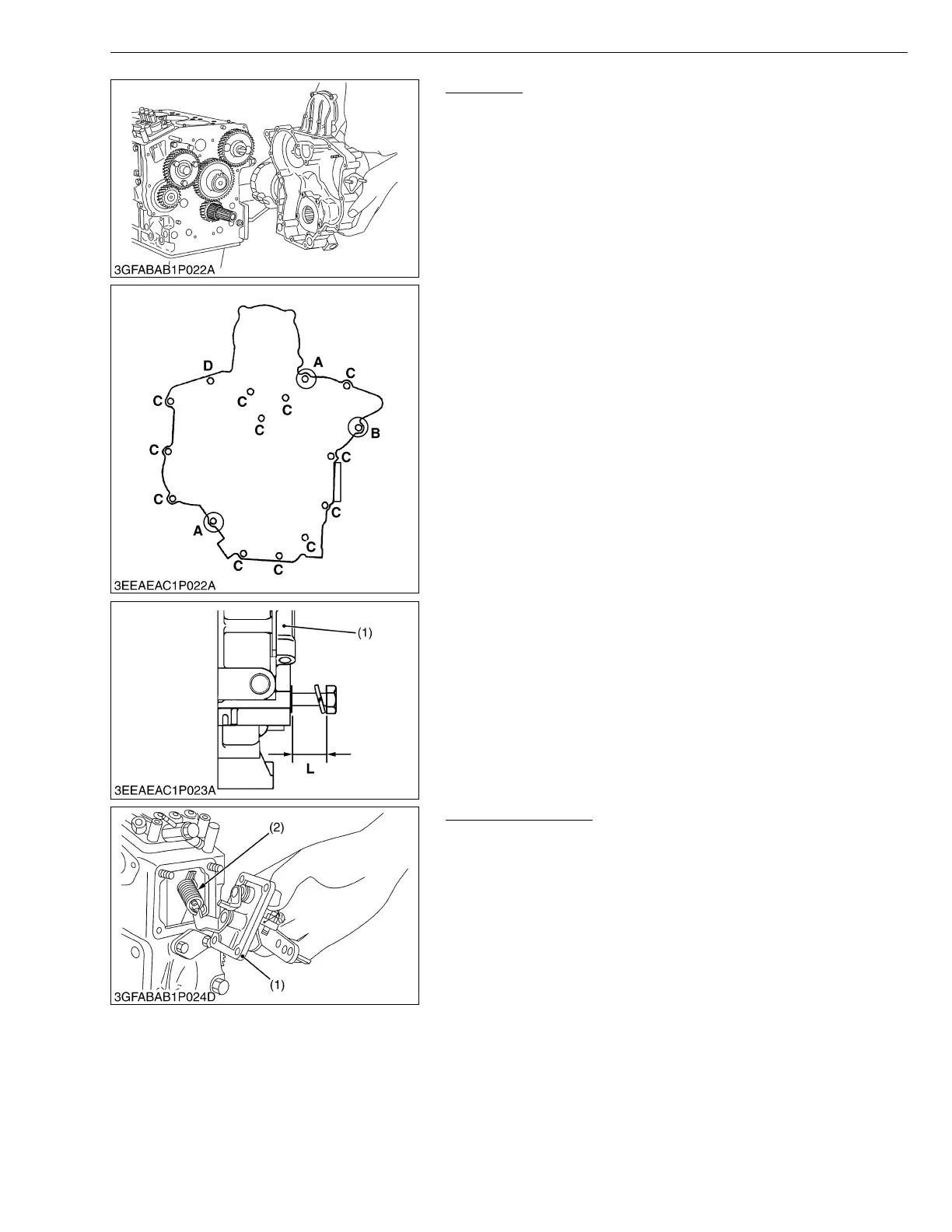

Gear Case
1. Remove the gear case.
(When reassembling)
• Apply a thin coat of grease to the oil seal, and install it, ensuring
the lip does not get cut or rolled.
•Measure (L) when the gear case mounting bolt is inserted in the
gear case bolt hole and judge the installation position of the
mounting bolt when you do not understand the installation
position of the mounting bolt.
A : L = 18 mm (0.71 in.) (Pipe Pin Position)
B : L = 13 mm (0.51 in.) (Water Pipe Mounting)
C : L = 10 mm (0.39 in.)
D : Nut
W1030917
Speed Control Plate
1. Remove the engine stop solenoid.
2. Remove the speed control plate (1).
3. Remove the governor spring (2). Be careful not to drop spring
into crankcase.
(When reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) to both
sides of the solenoid cover gasket and control plate gasket.
• Be careful not to drop the governor spring (2) into the crankcase.
W1031942
(1) Gear Case
(1) Speed Control Plate (2) Governor Spring
To Next Page
