5 of 17
SERIES: KM-O(ST) & KM-T(ST)
Operating and maintenance instructions

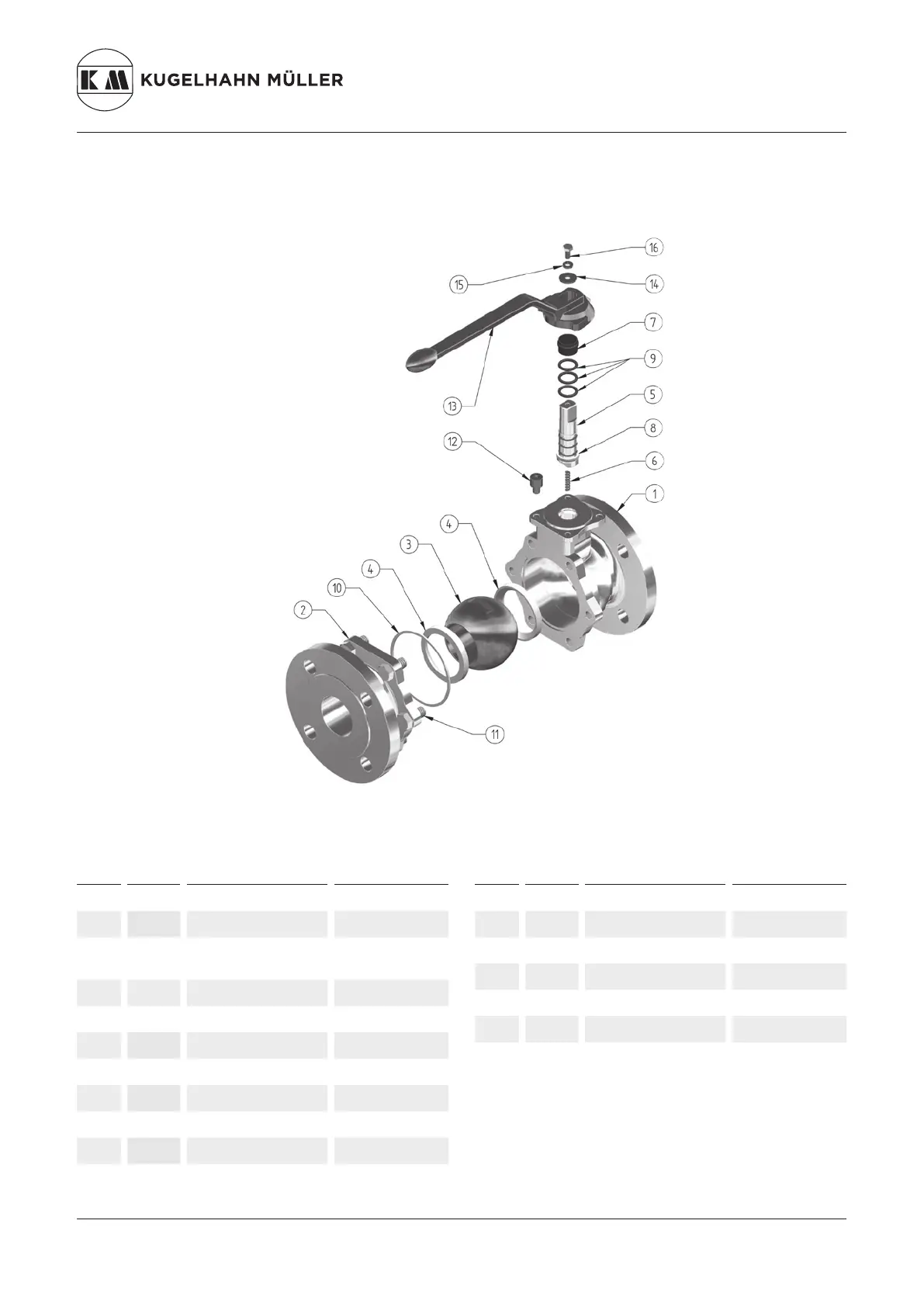

1.2 BILL OF MATERIAL · O-RING DESIGN
DN 15 – DN 200
PN 10/16 – PN 40
Item Qty Designation Materials
1 1 Valve body 1.4408/1.0619
2 1
Counter flange
F1/F27
1.4408/1.0619
3 1 Ball 1.4404/1.4408
4 2 Ball seat PTFE/25% Glass
5 1 Shaft 1.4571/1.4404
6 1 Spring 1.4401
7 1 Guide bushing PTFE-P
8 1 Slide ring PTFE
9 3 O-ring Viton
10 1 Valve body seal PTFE
Item Qty Designation Materials
11 Hexagon screw A4-70
12 1 Stop pin 1.4305
13 1 Hand lever 1.4308
14 1 Disk Stainless steel
15 1 Spring washer DIN 127 A4-70
16 1
Cylinder screws DIN
912
A4-70
PRODUCT INFORMATION
TYP KM-OXST-F1/F27
STAINLESS STEEL
TYP KM-OAST-F1/F27
STEEL
