INSTALLATION INSTRUCTIONS
-CONTINUED-
PRISM COMPONENTS L.E.D. COUNT
HEADLIGHT 7” 48
HEADLIGHT 5-3/4” 36
PASSING LIGHT 4-1/2” 24
ROULETTE 16
FLARE 8
4” STRIP 8
8” STRIP 16
POD*
8 L.E.D. COUNT
(*4 CONTROLLER READ COUNT)
*The bluetooth controller reads a pod light as 4 L.E.D.s, even though they have
a total of 8 L.E.D.s.

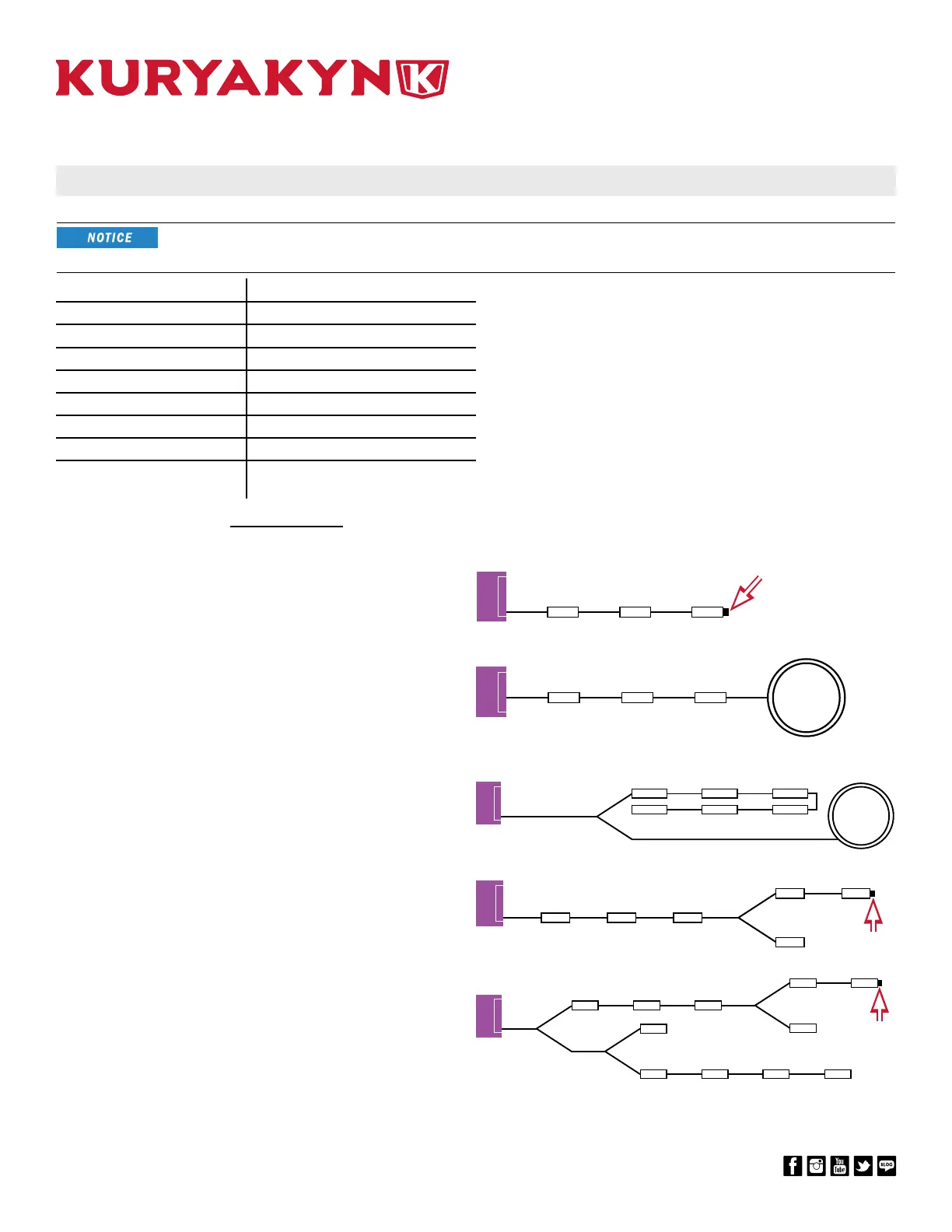

CREATING A SINGLE CHAIN OF PODS AND/OR STRIP LIGHTS:
Refer to FIG 1.1. Do not exceed the 100 L.E.D. maximum
capacity per channel. Place a loop connector on the very end of
the chain of lights.
LF
1
RF
2
LR
3
RR
4
444
CREATING A SINGLE CHAIN OF PODS AND/OR STRIP LIGHTS
WITH A HEADLIGHT OR ROULETTE WHEEL:
Refer to FIG 2.1. Do not exceed the 100 L.E.D. maximum
capacity per channel. Place Headlight or Roulette Wheel on the
end of the chain.
LF
1
RF
2
LR
3
RR
4
4 4 4 48
USING A Y-CONNECTOR WITH A HEADLIGHT, THE PASSING
LIGHTS, A ROULETTE WHEEL, OR THE FLARE LIGHTS:
Refer to FIG 3.1. When Y-Connectors are used with a Headlight,
the Passing Lights, a Roulette Wheel, or the Flare Lights, each
branch of the Y-Connector needs to have the same amount
of L.E.D.s to function properly. Lights can be placed before a
Y-Connector as long as the 100 L.E.D. maximum capacity per
channel is not exceeded.
When balancing a branch using Pod Lights the controller reads
them as 4 L.E.D.s, but the actual count is 8 L.E.D.s per Pod. The
8 count is used in the overall total of L.E.D.s on a channel. Make
sure not to exceed the 100 L.E.D. maximum capacity
per channel.
LF
1
RF
2
LR
3
RR
4
8 8 8
8 8 8
48
LF
1
RF
2
LR
3
RR
4
4 4 4
4
4
4
LF
1
RF
2
LR
3
RR
4
4 4 4
4
4 4 4 4
4
4 4
USING A Y-CONNECTOR WITH PODS AND/OR STRIP
LIGHTS ONLY:
Refer to FIG 4.1 and 4.2. When using Y-Connectors, the branch
with the most L.E.D.s on it needs to have a loop connector
added to the end of it.
REFER TO THE L.E.D. COUNT TABLE FOR EACH VARIATION OF PRISM+ LIGHTS. BLUETOOTH CONTROLLERS HAVE A
MAX CAPACITY OF 250 L.E.D.S CONNECTED TO IT AT A TIME. MAX CAPACITY PER CHANNEL IS 100 L.E.D.S, BUT THE
CONTROLLER SHOULD NEVER EXCEED A TOTAL OF 250 L.E.D.S CONNECTED TO IT.
FIG 1.1
FIG 2.1
FIG 3.1
FIG 4.1
FIG 4.2
LOOP
CONNECTOR
LOOP
CONNECTOR
LOOP
CONNECTOR
SINGULAR Y-CONNECTOR EXAMPLE
MULTIPLE Y-CONNECTORS EXAMPLE
96 L.E.D.S ON
ONE CHANNEL
SHOWN
6x 4” STRIPS = 1 HEADLIGHT
