Kurzweil Artis Getting Started Guide

Setting up the Artis
Using the Artis
GS-3
GETTING STARTED GUIDE
5. Plug the Switch Pedal into the marked SW1 (Sustain) Pedal jack on the Artis rear panel.
6. Connect stereo headphones to the headphone jack on the front left panel (Artis7 rear
panel) or connect the audio outputs to your mixer or amplier inputs using standard (1/4-
inch) audio cables (use the Left out for mono). Balanced (“TRS” or “Stereo”) cables are
recommended if your mixer or amp supports balanced inputs.
7. Make sure your sound system is at a safe volume level. Also make sure that the Artis
Master Volume slider (on the far left side of the front panel) is all the way down.
Using the Artis
1. Power up the Artis using the power switch on the rear left side of the instrument, and then
raise the Master Volume slider, and mixer/amp volume. Your Artis keyboard starts up in
Program Mode by default. Press one of the buttons under the “Mode” label to the right
of the display to switch Modes.
Master Volume Slider Mode Selection
2. If you are connected to a mixing board and hear distortion, reduce the gain level on your
mixing board, or use the pad (a switch that decreases the input audio signal level, typically by 20dB)
if it has one.

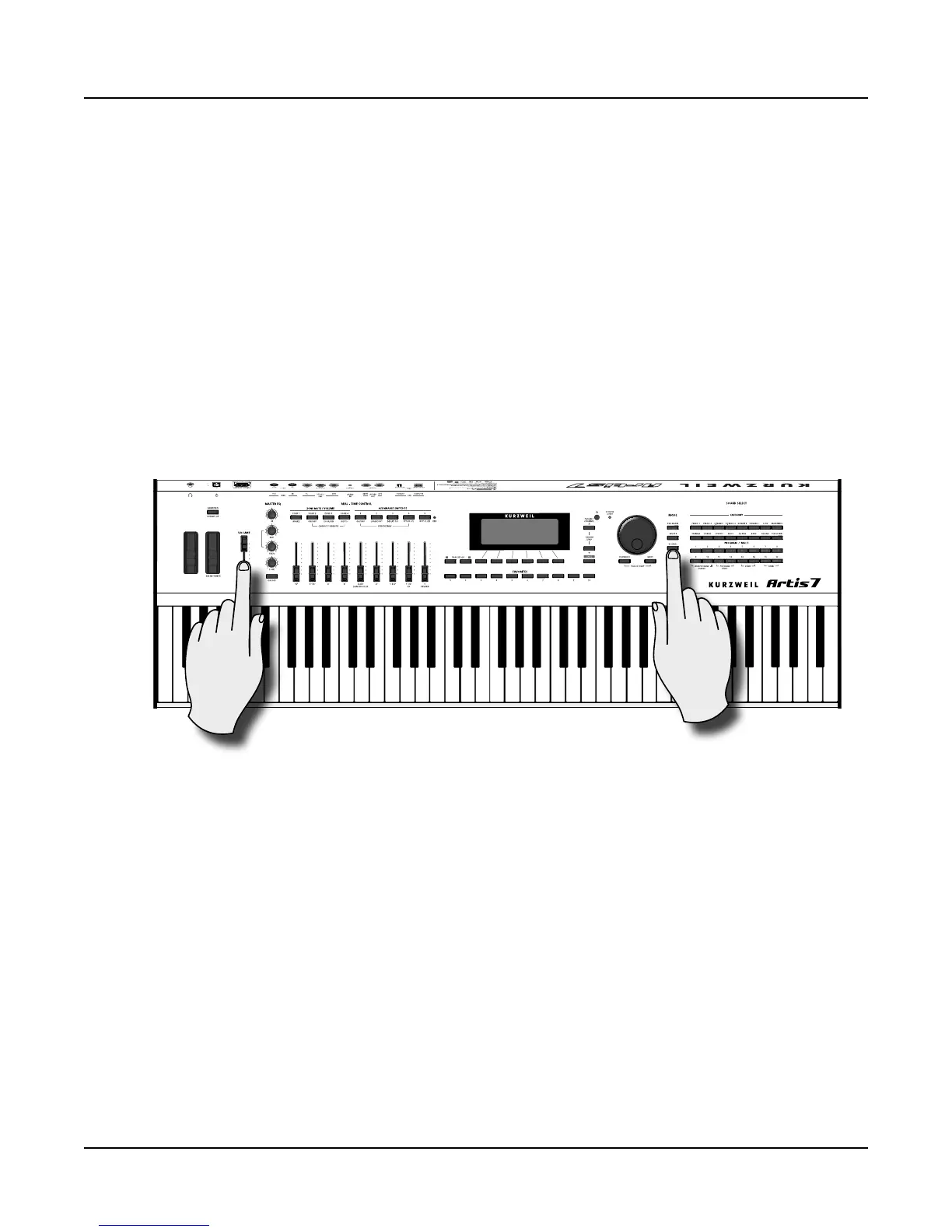

3. To hear the capabilities of the Artis, you can play the demo songs. Press the 13 & 14
Program/Multi buttons simultaneously to listen to a demo song.
4. In Program Mode, scroll through the Programs using the Alpha Wheel, the Previous and
Next buttons, or press a Category button to audition the sounds in the Artis. The Artis has
short demos for each of the factory Programs. To hear a Program Demo for the current
Program, press the 11 & 12 Program/Multi buttons simultaneously.

Kurzweil Artis Specifications

General

Sound effects	Chorus
Output impedance	400 Ω
Maximum polyphony (notes)	128
Number of transpose switches	2
Number of front panel sliders	9
Keyboard name	Fatar TP100
Keys quantity	88 keys
Headphone outputs	1
Product color	Black
Display resolution	240 x 64 pixels
AC input voltage	90-256 V
AC input frequency	50 - 60 Hz
Power consumption (max)	10 W
General MIDI	No
FX units quantity	16
Effect chains quantity	1000
User programs quantity	256
Number of relative volume zones	4
Cables included	AC, USB

Weight and Dimensions

Depth	395 mm
Width	1385 mm
Height	140 mm
Weight	21000 g
