Installing in Rack-Mount Models
17
Installing in Rack-Mount Models
Removing the Top Panel
1. Make sure that the PC2R is disconnected from its
power supply, and that you’ve discharged any residual
static electricity by touching a conductive object (like
the metal casing of the PC2R itself).
2. Position the PC2R on your work surface—right side
up, with the front panel facing away from you.
3. Using a #1Phillips screwdriver, remove the seven
screws that secure the top panel (see Figure 10).

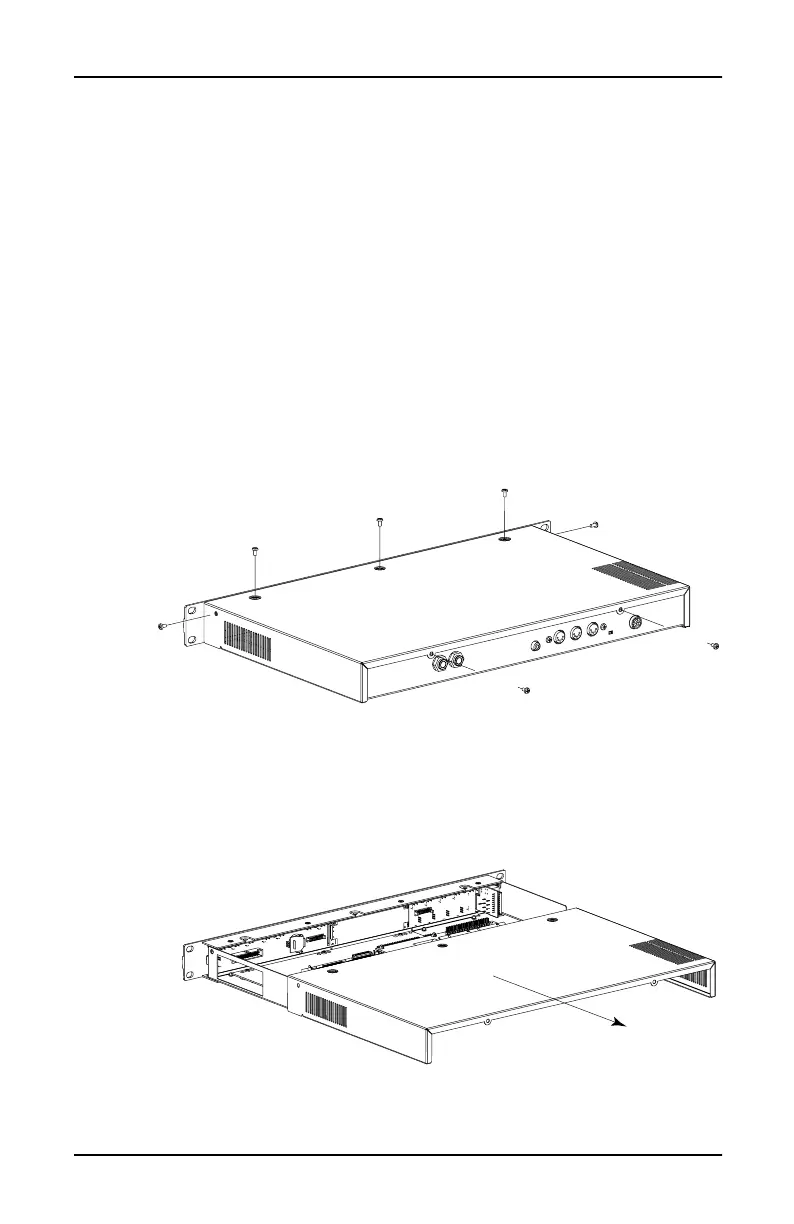

Figure 10 Removing the retaining screws
4. Grasp the front of the PC2R and slide the top panel
straight back until it’s free from the body of the PC2R
(see Figure 11).
Figure 11 Removing the top panel
