KVANT Laser System - User Interlock Connection; Integrating User Interlocks

Page 10

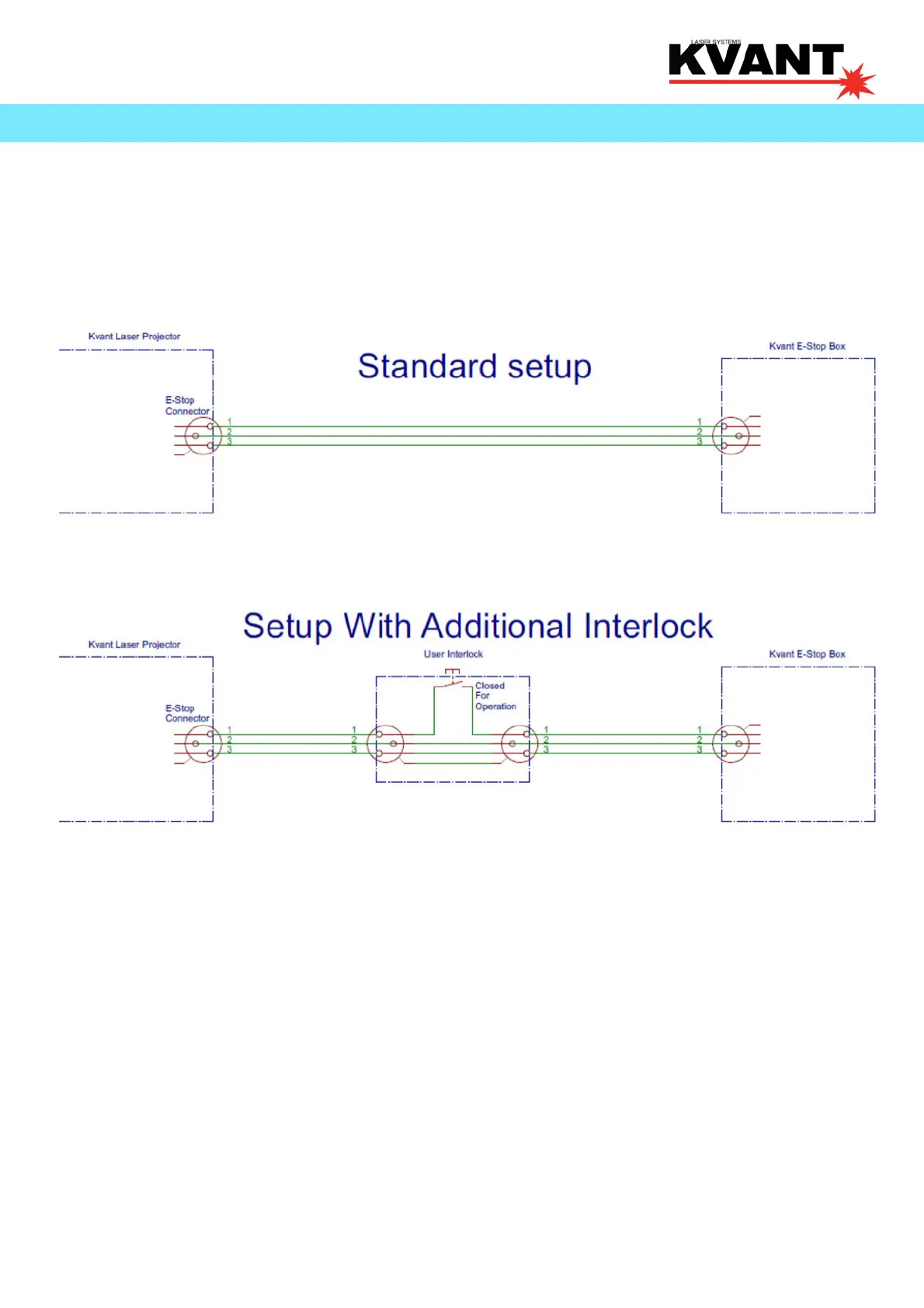

Connection Diagram - User Interlock
A user Remote Interlock Connection (RIC) may be inserted into the system between the laser
projector's REMOTE IN connection and the E-STOP Remote. The user RIC should consist of a
passive mechanical contact inserted in series on line 1 of the cable connection with lines 2 and 3
passing straight through.
