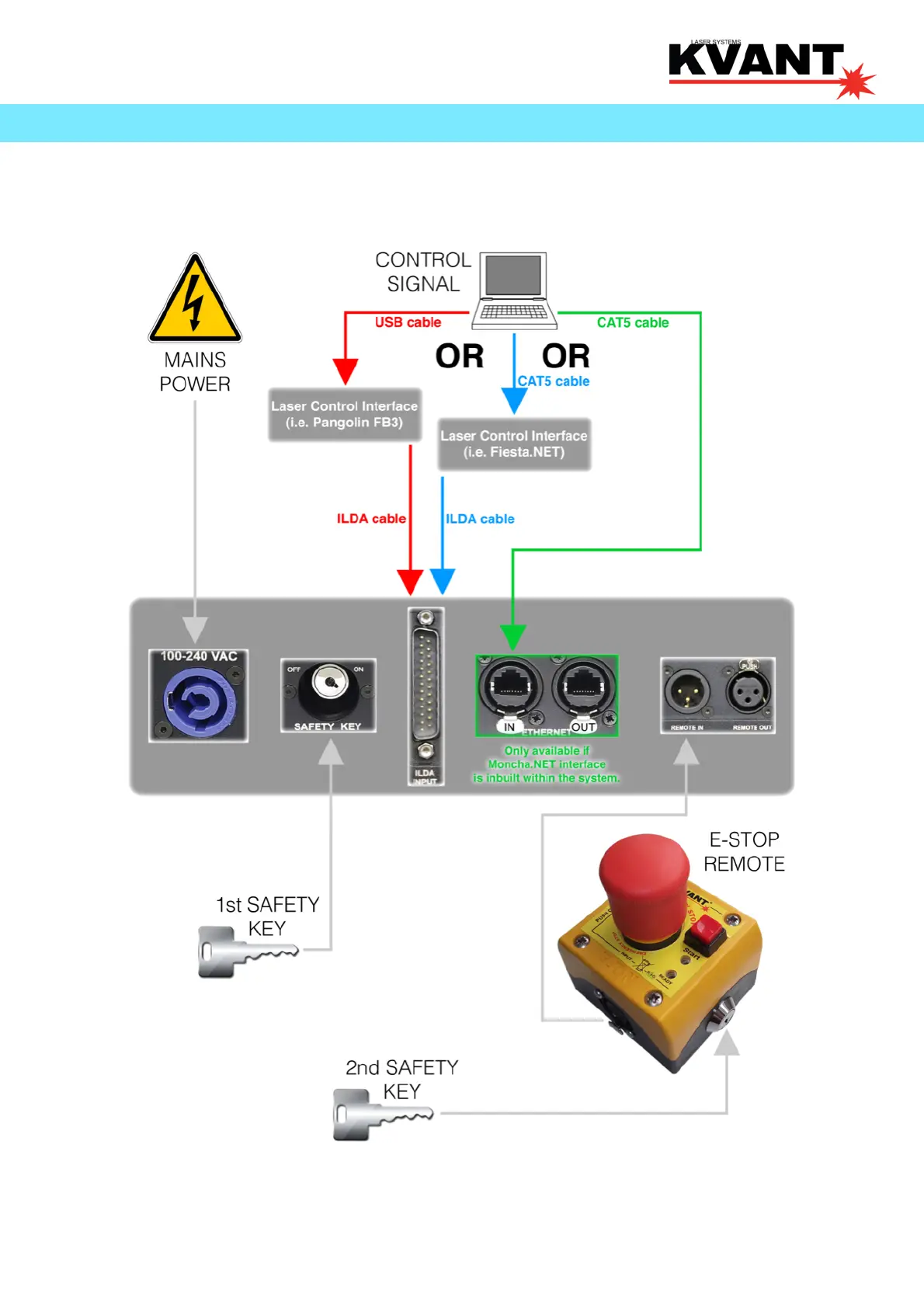

Connection Diagram
Please check carefully that all the signal and power leads are correctly attached and Safety keys in
their positions. Please note that the CAT5 connection is available ONLY if your system has inbuilt
Moncha.NET or Pangolin FB4 control interface.
If you are using the E-STOP Remote you must insert the 2nd Safety Key into the E-STOP Remote
and turn it to ON position in order to disable the interlock.
