Linear Wiring
Follow these steps to connect linear receivers to
the TracVision system (linear universal quad LNB
required).
Connecting 1-4 Linear Receivers
a. Connect an RF cable from the “Receiver” jack
on the TV-Hub to the “Satellite In” jack on the
first receiver (see Figure 21). This receiver will
be able to control satellite selection in Automatic
satellite switching mode.
b. When connecting multiple receivers, connect
a grounding block in-line with each RF cable
from the antenna (see Figure 22 and
“Grounding Requirements” on page 23).
c. Connect the other end of the RF1 cable to the
“Antenna” jack on the TV-Hub.
d. Connect any other RF cables from the
antenna (RF2, RF3, and RF4) to the “Satellite
In” jack on each additional receiver (see
Figure 22).

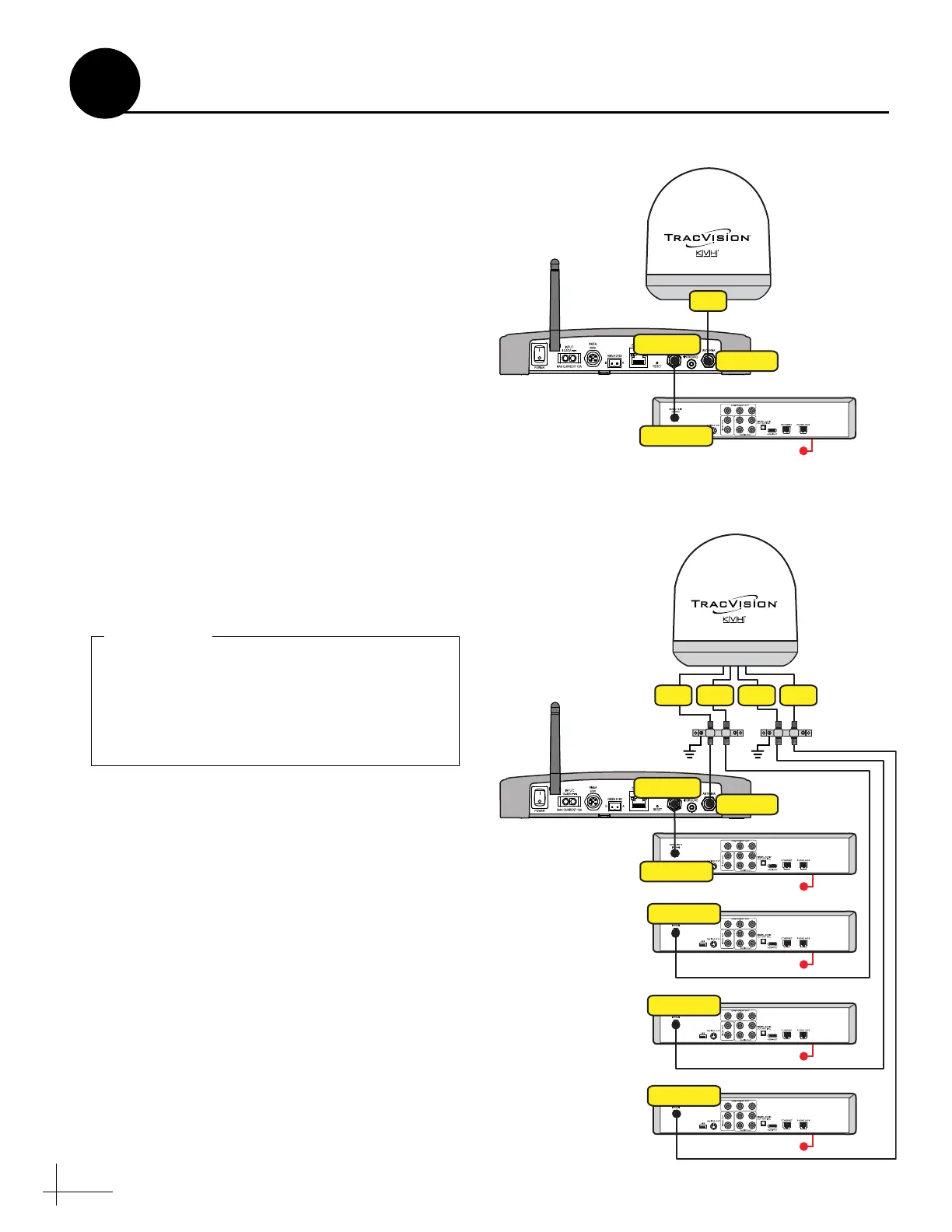

Figure 21: Wiring 1 Linear Receiver
TV-Hub
Antenna
Receiver
AC Power
Satellite In
Receiver
RF1
TV-Hub
Antenna
Receiver
AC Power
Satellite In
Receiver
RF1
Receiver
AC Power
Satellite In
Receiver
AC Power
Satellite In
Receiver
AC Power
Satellite In
RF4RF3RF2
Grounding
Blocks
Figure 22: Wiring 2 to 4 Linear Receivers
To enable any of the additional receivers to
control satellite selection, install an optional IP
AutoSwitch (KVH part no. 72-0634) in-line
with the receiver’s RF input. See Appendix A
on page 34 for details.
IMPORTANT!
Continued Wire the Receivers
11

KVH Industries TracVision TV5 Specifications

General

Frequency Band	Ku-band
Wind Survival	100 knots
Dish Diameter	45 cm (17.7 inches)
Antenna Diameter	45 cm (17.7 inches)
Radome Diameter	53 cm (20.8 inches)
Radome Height	22.4 in (56.9 cm)
Operating Temperature	-13°F to +131°F (-25°C to +55°C) - Antenna Unit
Elevation Range	0° to +90°
Ship’s Motion	Up to 15° roll/pitch
Power	DC
Compatibility	DVB-S2
Mounting	Base Mount
Operating Voltage	12-24 VDC
Humidity	95% non-condensing
