Connecting 5 or More Linear Receivers
a. Connect an RF cable from the “Receiver” jack
on the TV-Hub to the “18V” jack on the
multiswitch (see Figure 23).
NOTE: If the desired satellite TV service is limited to
channels carried on high-band transponders (for
example, Sky Mexico), connect the RF cable from the
TV-Hub to one of the “22KHz” tone inputs on the
multiswitch, instead of the “18V” input. In addition,
since you do not need the “18V” and “13V” inputs for
high-band transponders, you only need to connect the
RF1 and RF2 cables to the multiswitch; RF3 and RF4
are unnecessary.
b. Connect a grounding block in-line with each
RF cable from the antenna (see Figure 23 and
“Grounding Requirements” on page 23).
c. Connect the other end of the RF1 cable to the
“Antenna” jack on the TV-Hub.
d. Connect the RF2, RF3, and RF4 cables to the
multiswitch, as shown in Figure 23.
e. Connect each multiswitch output to the
“Satellite In” jack on each receiver.
f. Terminate any unused outputs on the
multiswitch with 75terminators and verify
all connections are tight.

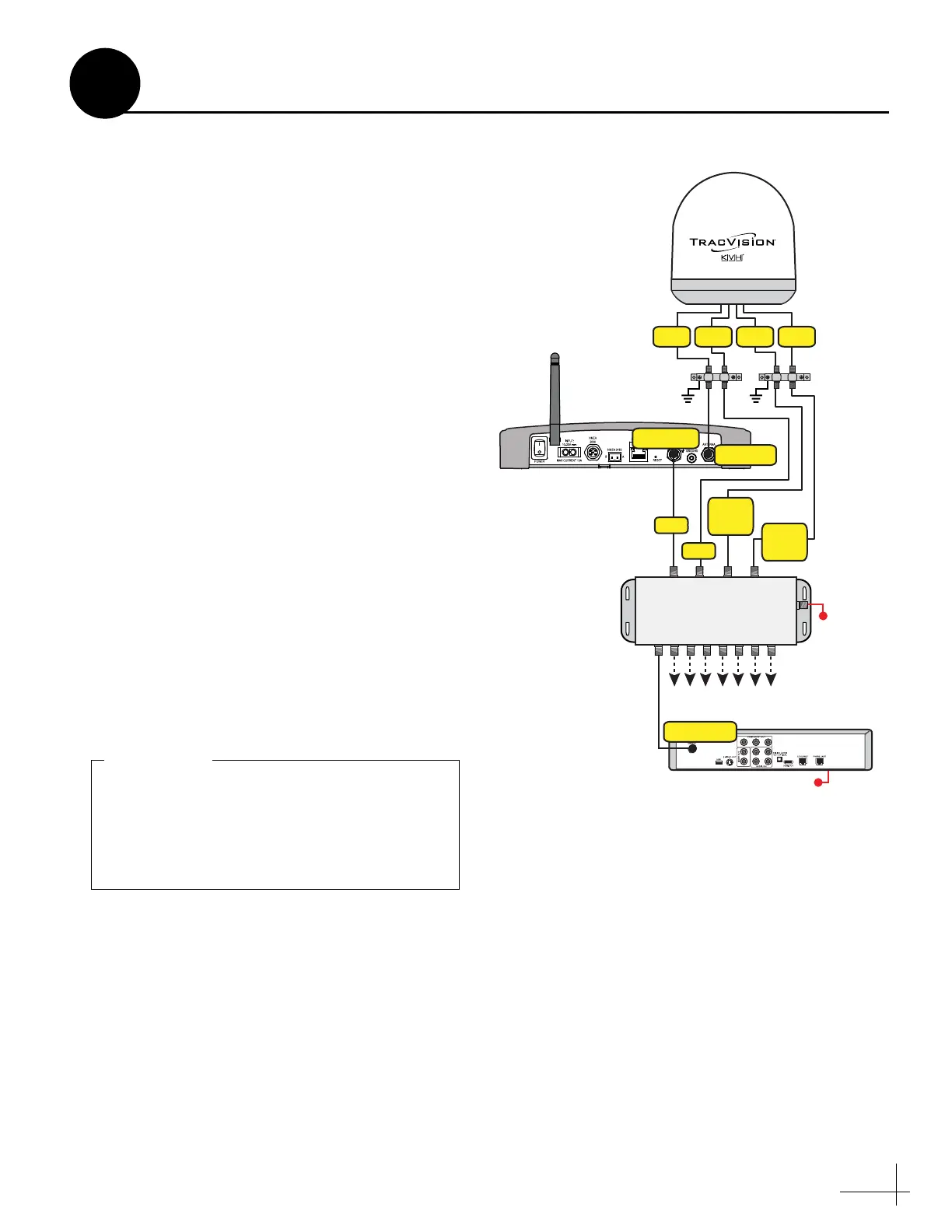

Figure 23: Wiring 5+ Linear Receivers
TV-Hub
Antenna
Receiver
RF1 RF4RF3RF2
Receiver
AC Power
Satellite In
Connect up to 8 receivers
18V
13V
13V/
22
KHz
18V/
22
KHz
AC Power
13V 18V/
22KHz
13V/
22KHz
18V
Multiswitch
Grounding
Blocks
To enable any of the receivers to control
satellite selection, install an optional IP
AutoSwitch (KVH part no. 72-0634) in-line
with the receiver’s RF input. See Appendix A
on page 34 for details.
