Section 4.0 - Rules
Work Safely. Always wear safety glasses near the machine.
Standard Job Setup Description
File Name:
Must be 8 characters or less. No spaces or math symbols. This will be saved to the CF card on the machine.
EX: PART_123
Normal Line Type:
Any numbers and characters and symbols available on the keyboard.
Maximum of 20 characters per line.
EX: Abcd !@#4576**(0!7>:
Serial Line Type:
Sequential number marking function is dened by a starting number and the increment.
EX: Starting: 1000 Increment: 1
This will mark every cycle:
1000
1001
1002…
The serial number may also be embedded into any regular text line by placing 2 percent (%%) signs before and
after the number denition.
EX: PART %%1000.1%% CODE
This will mark every cycle:
PART 1000 CODE
PART 1001 CODE
PART 1002 CODE

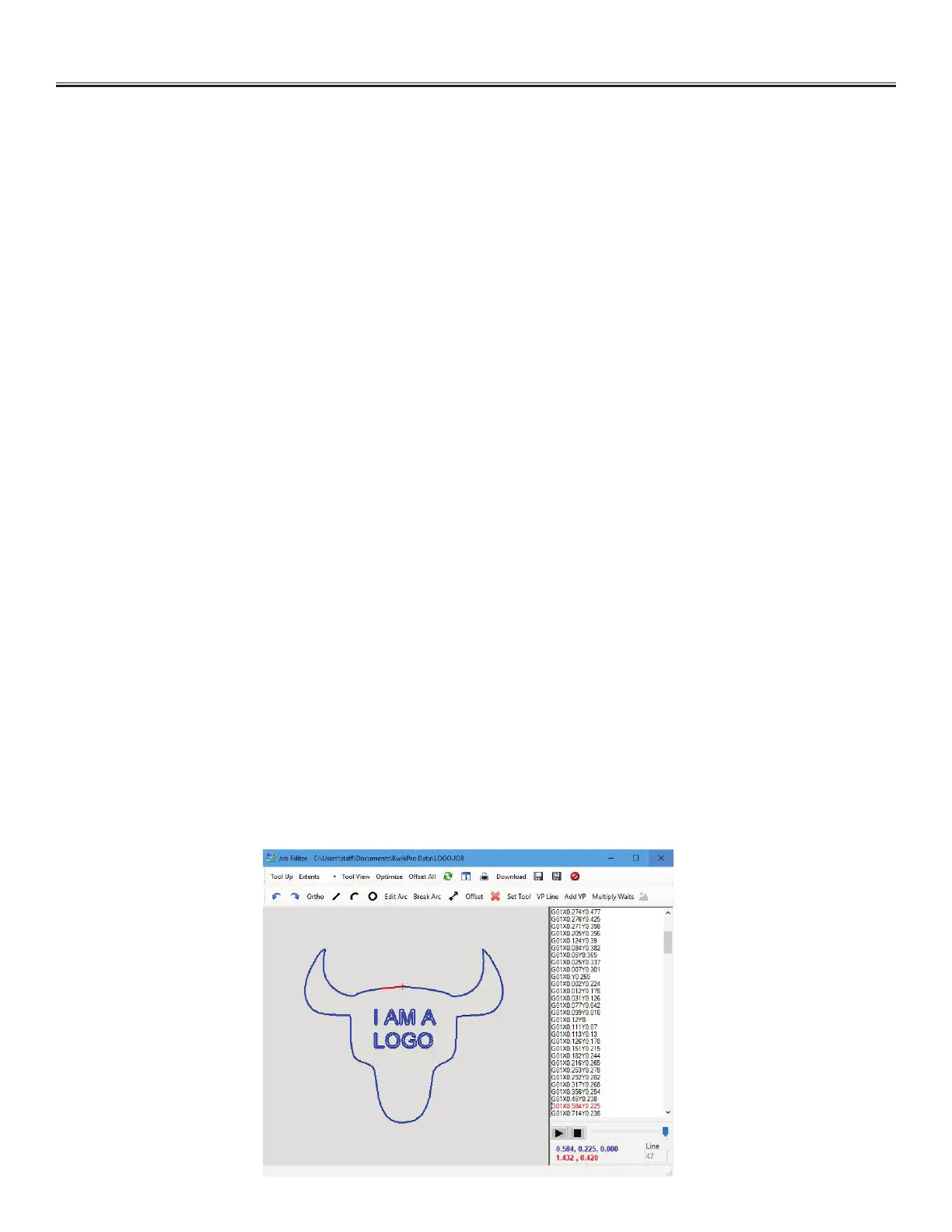

Graphic Line Type:
G Code leS (.JOB) supporting the following commands: G00, G01, G02, G03, G04, G05
EX: LOGO.JOB
