5. FUEL SYSTEM
5-5
AGILITY CITY 125

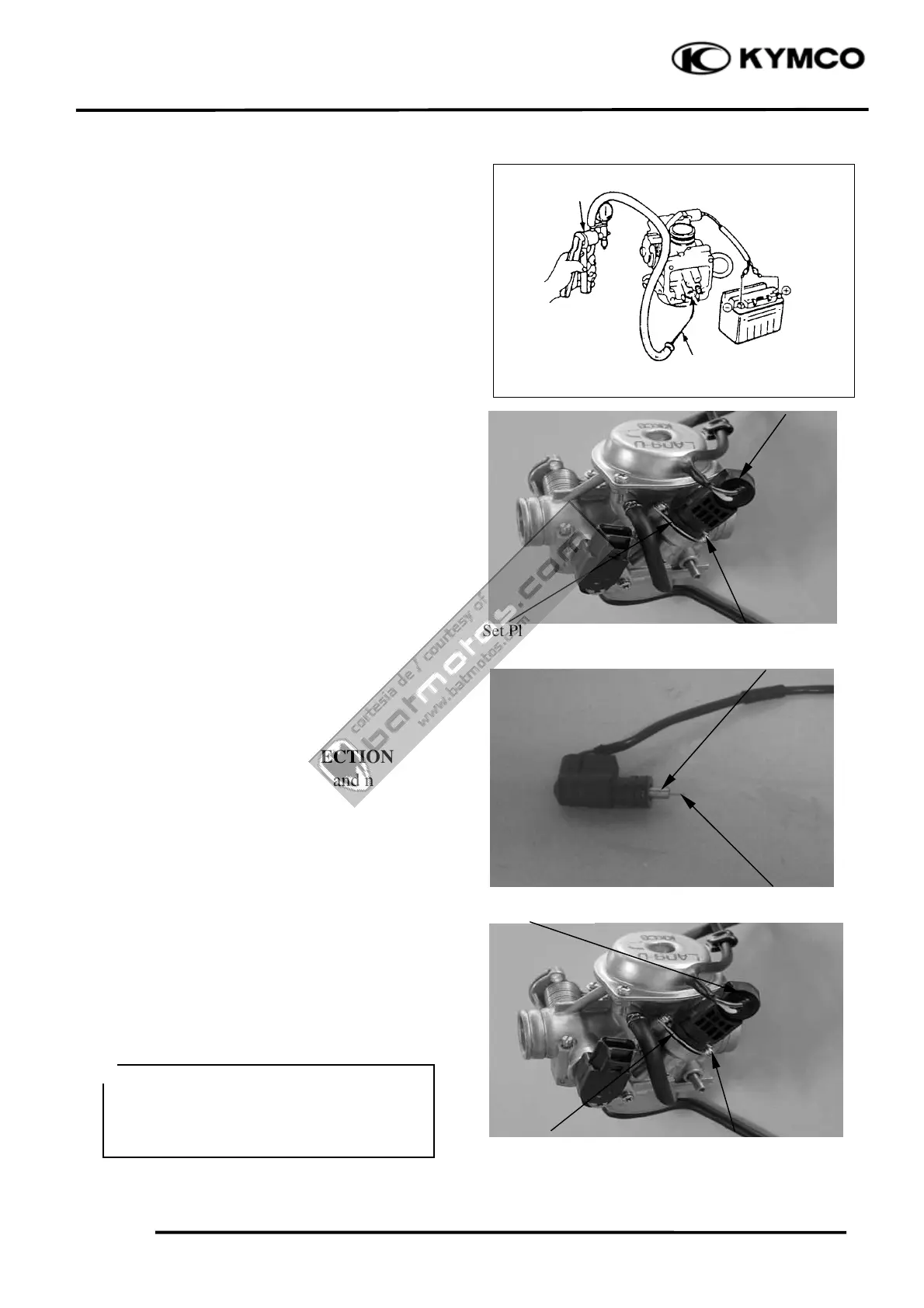

Connect a hose to the fuel enriching circuit
of the carburetor. Connect the auto
bystarter yellow wire to the positive (+)
terminal of a battery and green wire to the
negative (-) terminal. Wait 5 minutes and
blow the hose with mouth or vacuum
pump. If the passage is blocked, the
auto bystarter is normal.
Disconnect the auto bystarter from the
battery. Wait 30 minutes and blow the hose
with mouth or vacuum pump. If air can be
blown into the hose, the auto bystarter is
normal.
REMOVAL
Remove the set plate screws and set plate.
Remove the auto bystarter from the
carburetor.
AUTO BYSTARTER INSPECTION
Check the auto bystarter valve and needle
for nicks, wear or damage.
If any faulty part is found, replace the auto
bystarter as a set.
INSTALLATION
Insert the auto bystarter into the carburetor
body until it bottoms.
Position the set plate into the groove in the
auto bystarter and tighten the screws.
Auto B
y
starte
r
Screws
Bystarter Needle
Bystarter Valve
Auto B
y
starte
r
Screws
Set Plate
Vacuum Pump
Adopte
r
Set Plate
xBe sure to install the auto
b
ystarter an
d
set plate properly.
xInstall the set plate with its bottom face
facing down.
＊
