20. LIGHTS/METERS/SWITCHES
20-7
DOWNTOWN 125i
HANDLEBAR SWITCH
INSPECTION
Remove the front cover (refer to the
“FRAME COVERS
REMOVAL/INSTALLATION” section in
the chapter 2).

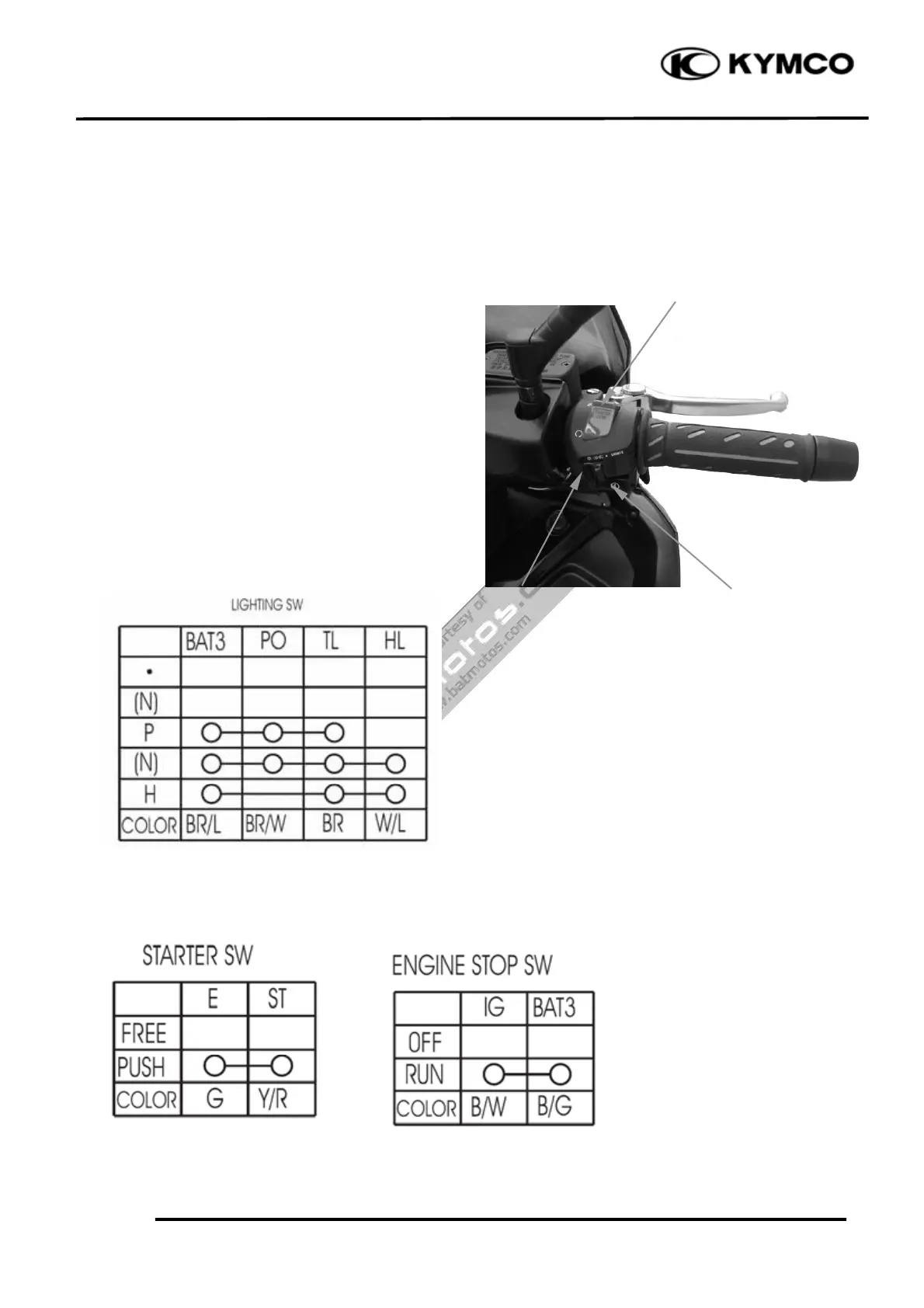

Right handlebar switch
Disconnect the right handlebar switch
connector and check for continuity for switch
side connector terminals.
Continuity should exist between the color
code wires as follows:
Engine Stop Switch
Lighting Switch Starter Switch
