6. ENGINE REMOVAL/INSTALLATION
6-9
MXU 300/250

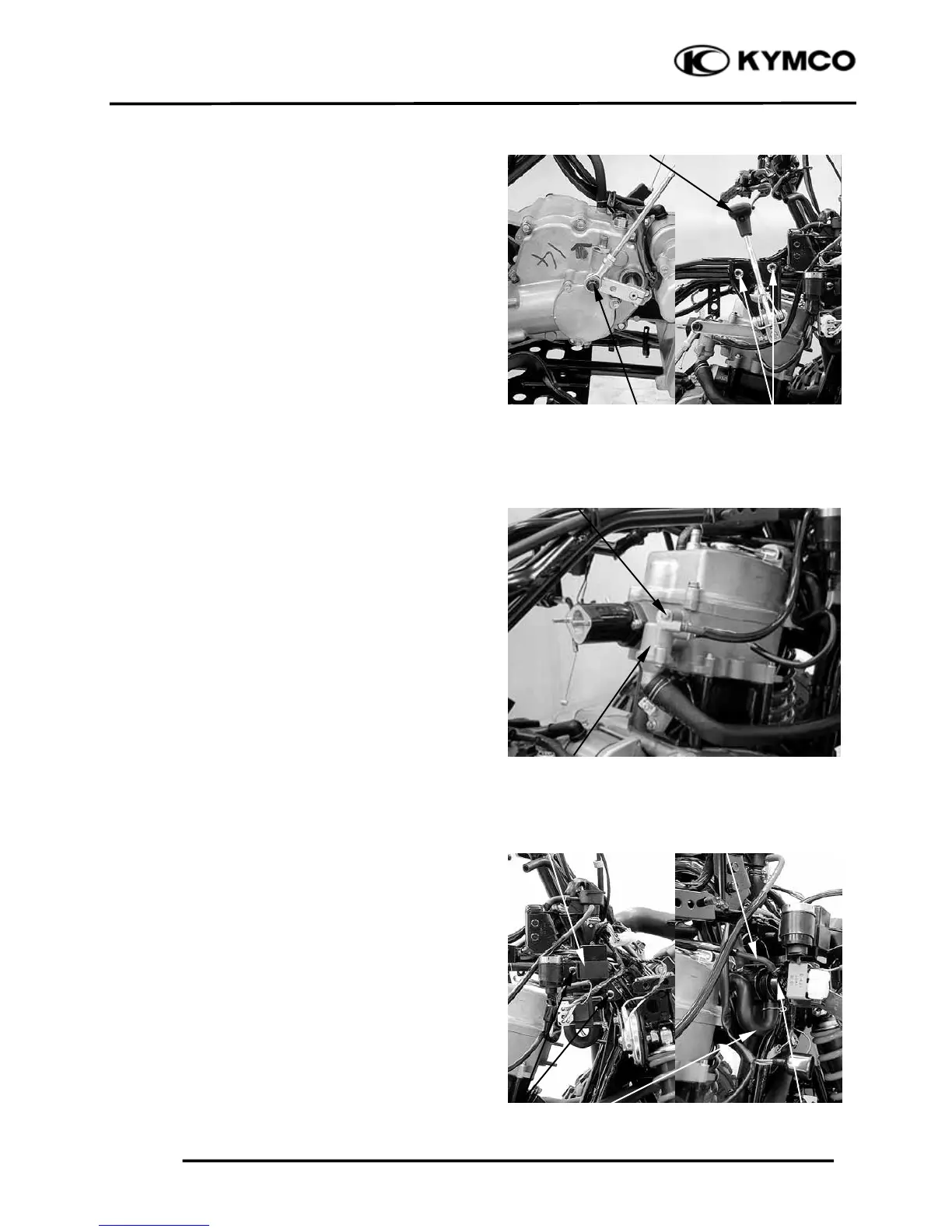

Remove the drive select shift to drive select
arm connecting bolt and nut.
Remove the two mounting nuts and drive
select shift.
Remove the bolt and thermostat.
Remove the two nuts and electrical holder.
Disconnect air supply hose and vacuum
hose from the air solenoid valve, then
remove the air solenoid valve.
Drive Select Shif
t
Bolt Nuts
Bol
t
Thermosta
t
Electrical Holder Vacuum Hose
N
uts Air Solenoid Valve Air Solenoid Valve
