9.DRIVE AND DRIVEN PULLEYS
9-14
MXU 300/250
INSTALLATION

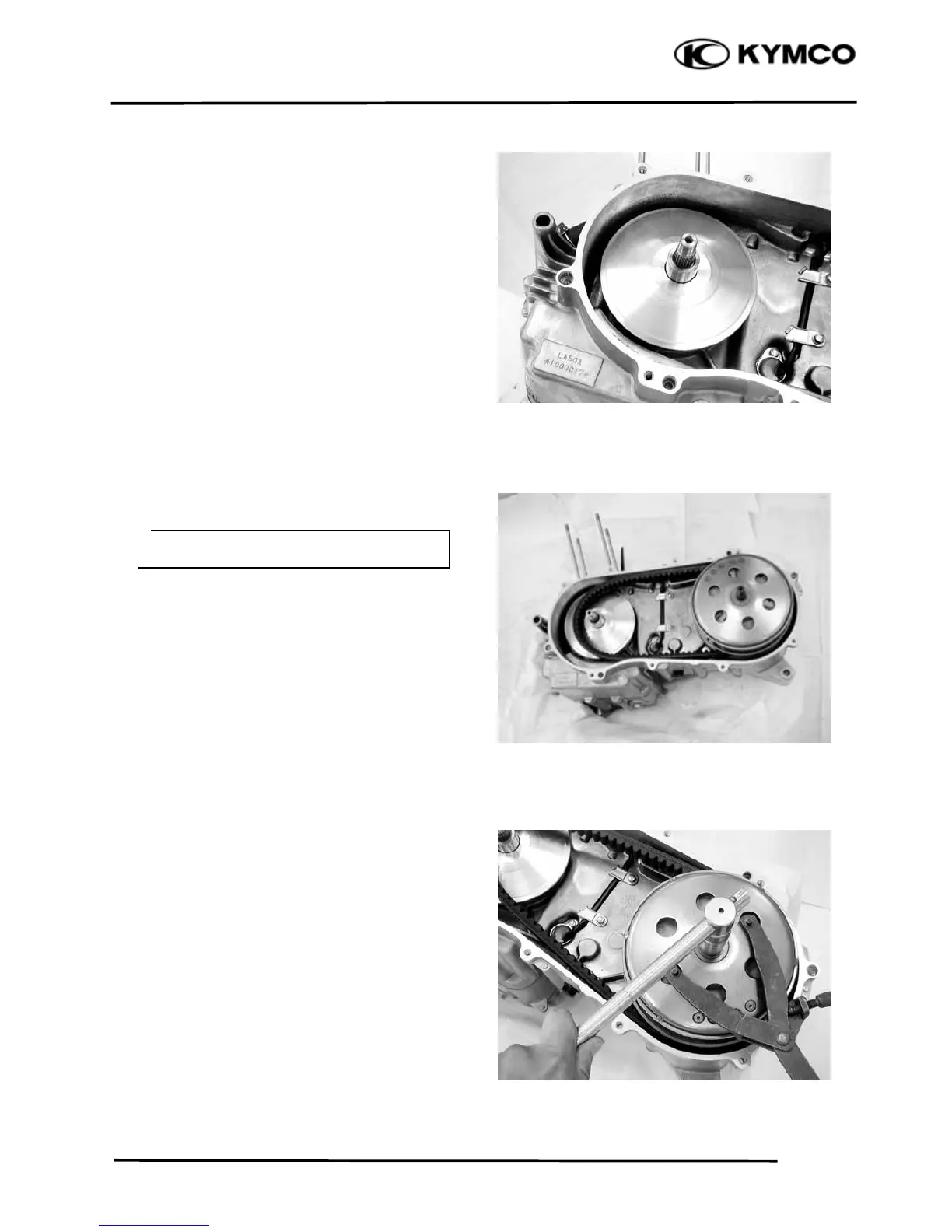

Install the drive pulley face assembly and
collar.
Install the clutch/driven pulley and driven
belt onto the drive shaft.
Install the clutch outer, collar.
Hold the clutch outer with the flywheel
holder.
Install and tighten the clutch outer nut.
Torque: 5.5 kgf-m (55 Nm, 40 lbf-ft)
Special tool: Universal Holder E017
Keep grease off the drive shaft.
＊
