15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-43
MXU 300/250

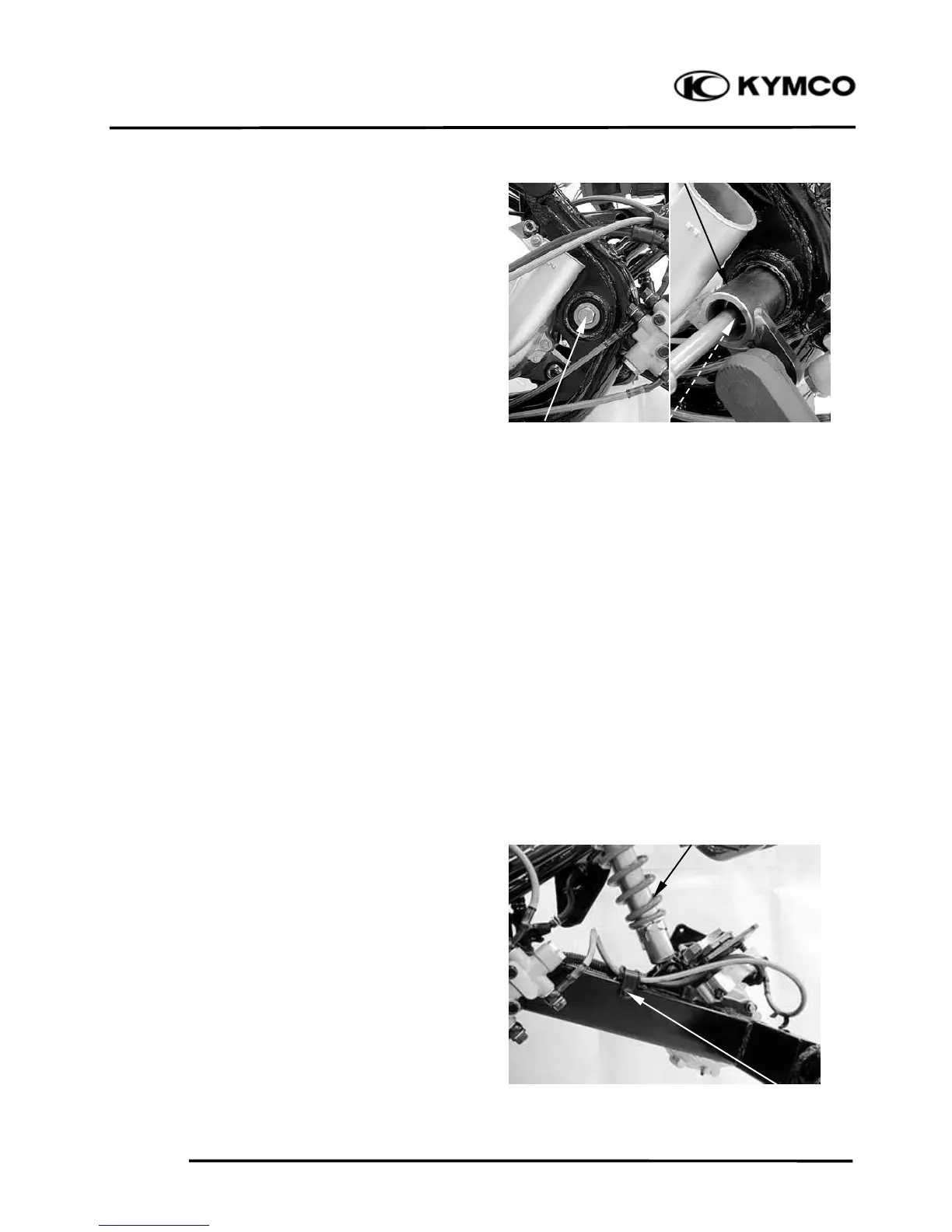

Install the right pivot bolt and the left pivot
adjusting bolt.
Tighten the right pivot bolt to the specified
torque.
Actual: 11.8 kgf-m (118 N-m, 85 lbf-ft)
Tighten the left pivot adjusting bolt to the
specified torque.
Torque: 1.1 kgf-m (11 N-m, 8 lbf-ft)
Move the swingarm up and down several
times to seat the pivot bearings.
Retighten the pivot bolts to the same torque.
Install the left pivot lock nut.
Tighten the lock nut while holding the left
pivot adjusting bolt to the specitied torque.
Special tool: Lock nut wrench F013
Torque:
Actual: 11.8 kgf-m (118 N-m, 85 lbf-ft)
Special tool indicated:
10.5 kgf-m (105 N-m, 76 lbf-ft)
Install the shock absorber (page 15-16).
Install the brake fluid hose band and tighten
the bolt securely.
Fill the final gear case with recommended
oil (page 3-13)
Lock Nut Wrench
Right Pivot Bolt Hold
Bolt/Band
Rear Shock Absorbe
r
