KYMCO MXU 250 - Page 324

16. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
16-10
MXU 300/250

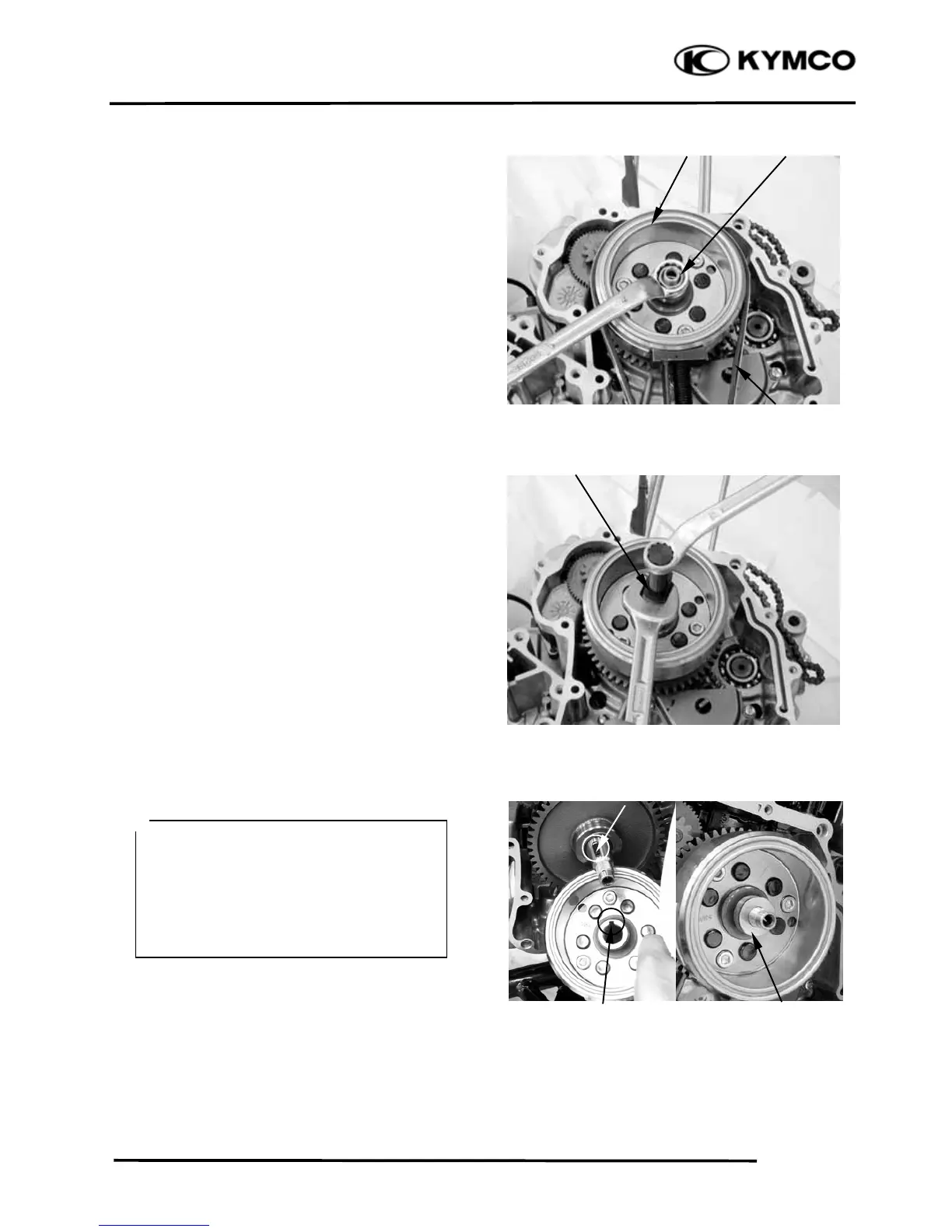

Hold the flywheel with a flywheel holder
and remove flywheel nut and wash.
Special tool:
Flywheel holder E021
Remove the flywheel with a flywheel puller.
Special tool:
Flywheel puller E003
INSTALLATION
Reverse the “REMOVAL” procedures.
Install the flywheel, washer and tighten the
nut.
Torque: 6 kgf-m (60 Nm, 43 lbf-ft)
Install the oil through guide and spring.
Install the A.C. generator onto the right
crankcase cover and tighten the bolts.
Torque: 0.9 kgf-m (9 Nm, 6.5 lbf-ft)
Install the right crankcase cover.
N
u
t
Flywheel
Flywheel Holde
r
Flywheel Pulle
r
Key
Groove Washe
r
‧Before installation, check and make
sure that the inside of the flywheel is
not contaminated.
‧Make sure install the flywheel onto
the crankshaft by aligning the key on
the crankshaft with the groove in the
flywheel.
＊
