4. LUBRICATION SYSTEM
4-4
MXU 300/250

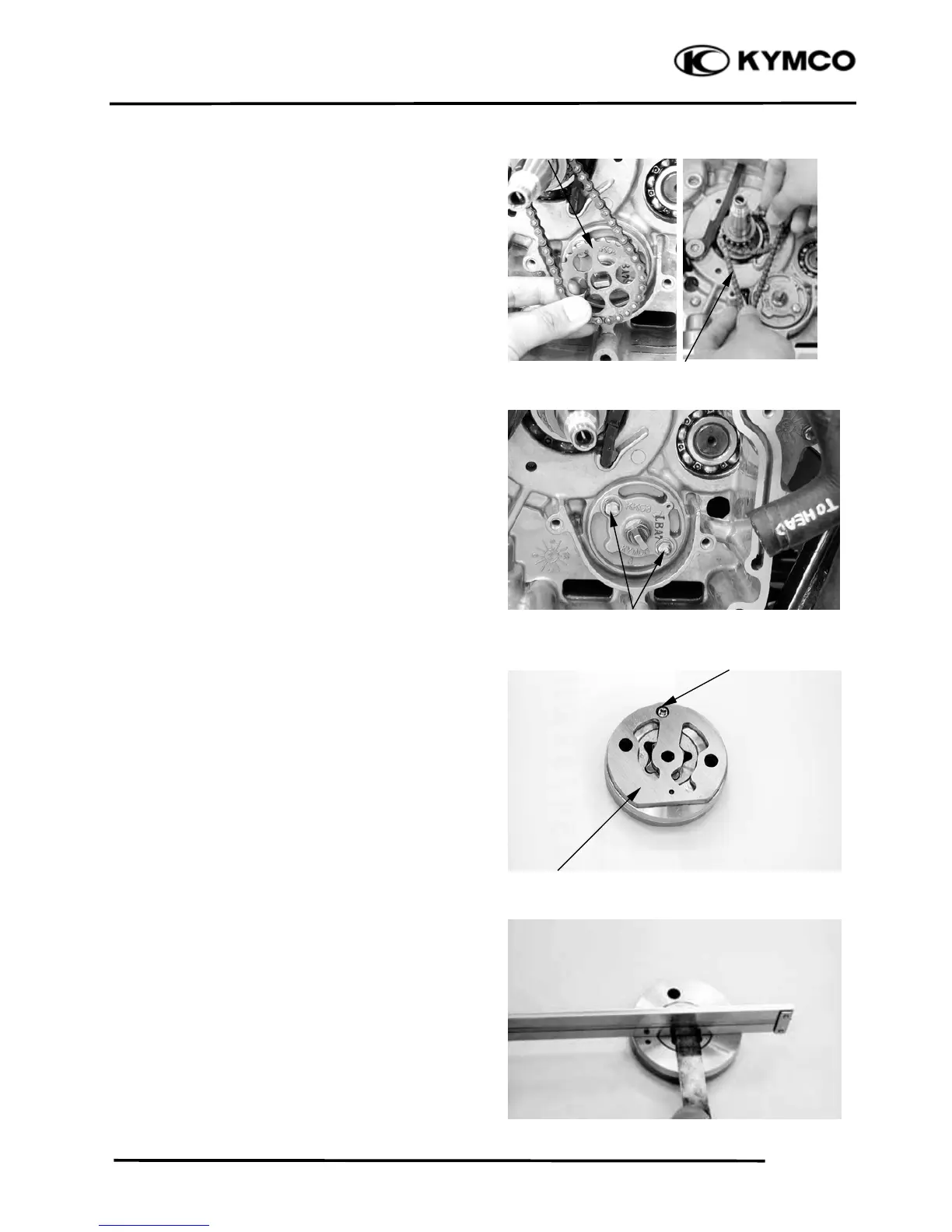

Remove the oil pump drive chain and oil
driven sprocket.
Remove the two oil pump bolts for remove
the oil pump.
OIL PUMP DISASSEMBLY
Remove the screw and disassemble the oil
pump.
INSPECTION
Measure the rotor end-to-pump body
clearance.
Service Limit: 0.12 mm (0.0048 in)
Oil Pump Driven Sprocket
Oil Pump Drive Chain
Oil Pump Bolts
Screw
Pump Bod
y
