FRAME COVERS
(1) REAR HAND GRIP REMOVAL
Remove the three bolts attaching the rear hand
grip.
Remove the rear hand grip.
(2) MET-IN BOX REMOVAL
Remove the three bolts and two nuts
attaching the met-in box.
Remove the met-in box.
(3) REAR FENDER REMOVAL
Remove the screw on each side of the rear
fender.
Remove (3-1) the two nuts attaching the rear
fender.
Remove the rear fender.
Remove (3-2) the license light wire connector.
(4) UNDER COVERS REMOVAL
Remove the frame center cover screws.
Remove the two screws attaching the part of
the frame body cover.
Remove (4-2) taillight rear turn signal light
wire connector.

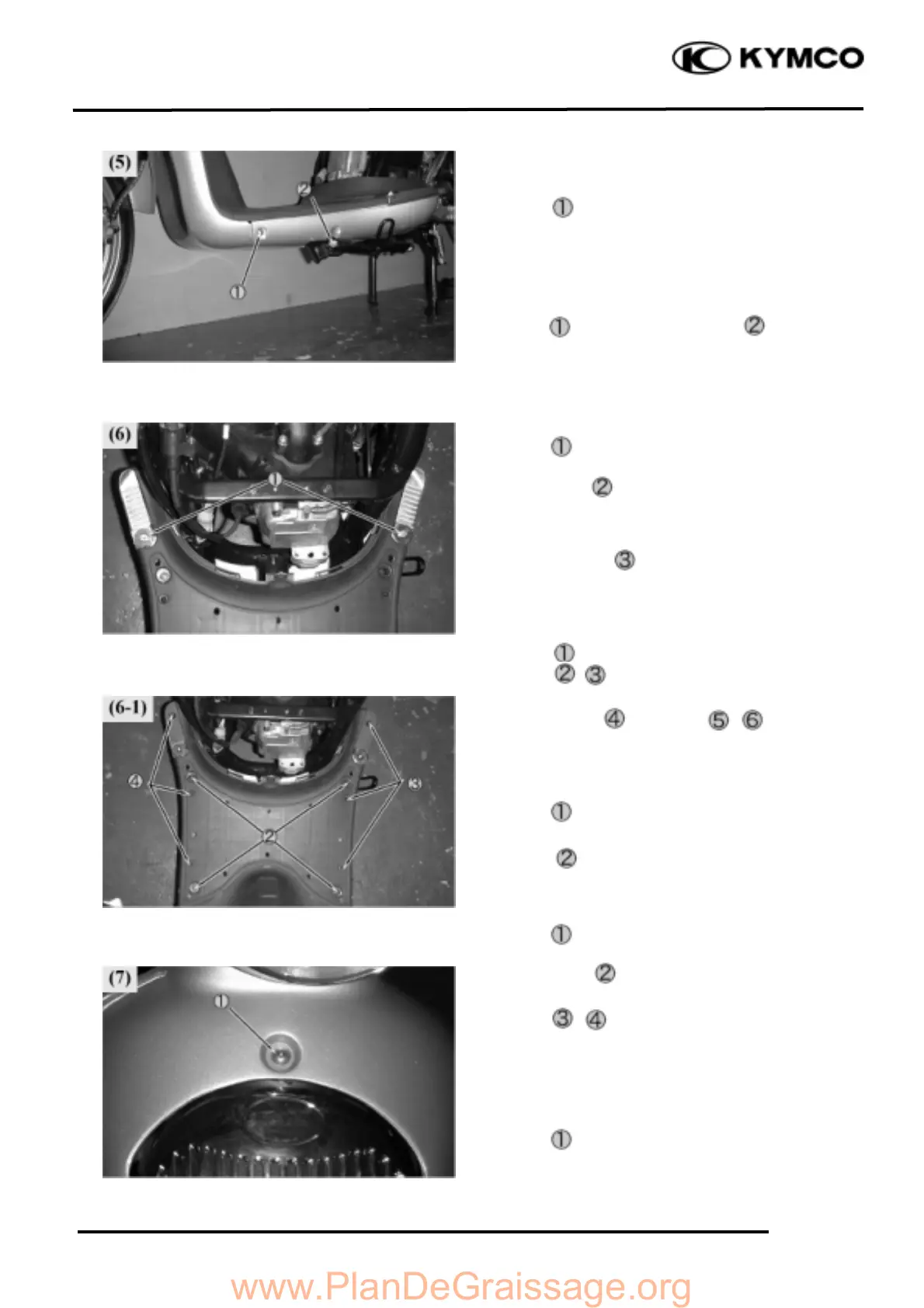

(5) BOTTOM COVER REMOVAL
Remove the one bolt attaching each side of the
bottom protector cover.
Remove the bolt on site stand.
(6) FLOOP BOARD REMOVAL
Remove the two bolts attaching the rear floor
board.
Remove (6-1) the four bolts attaching the floor
board.
Remove the six screws attaching the floor
board.
Remove the floor board.
(7) FRONT COVER REMOVAL
Remove the bolt on the front of the front
cover.
Remove the front cover.
