KYMCO PEOPLE S 125 Service Manual

12 . FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION
12-6
PEOPLE S 4T

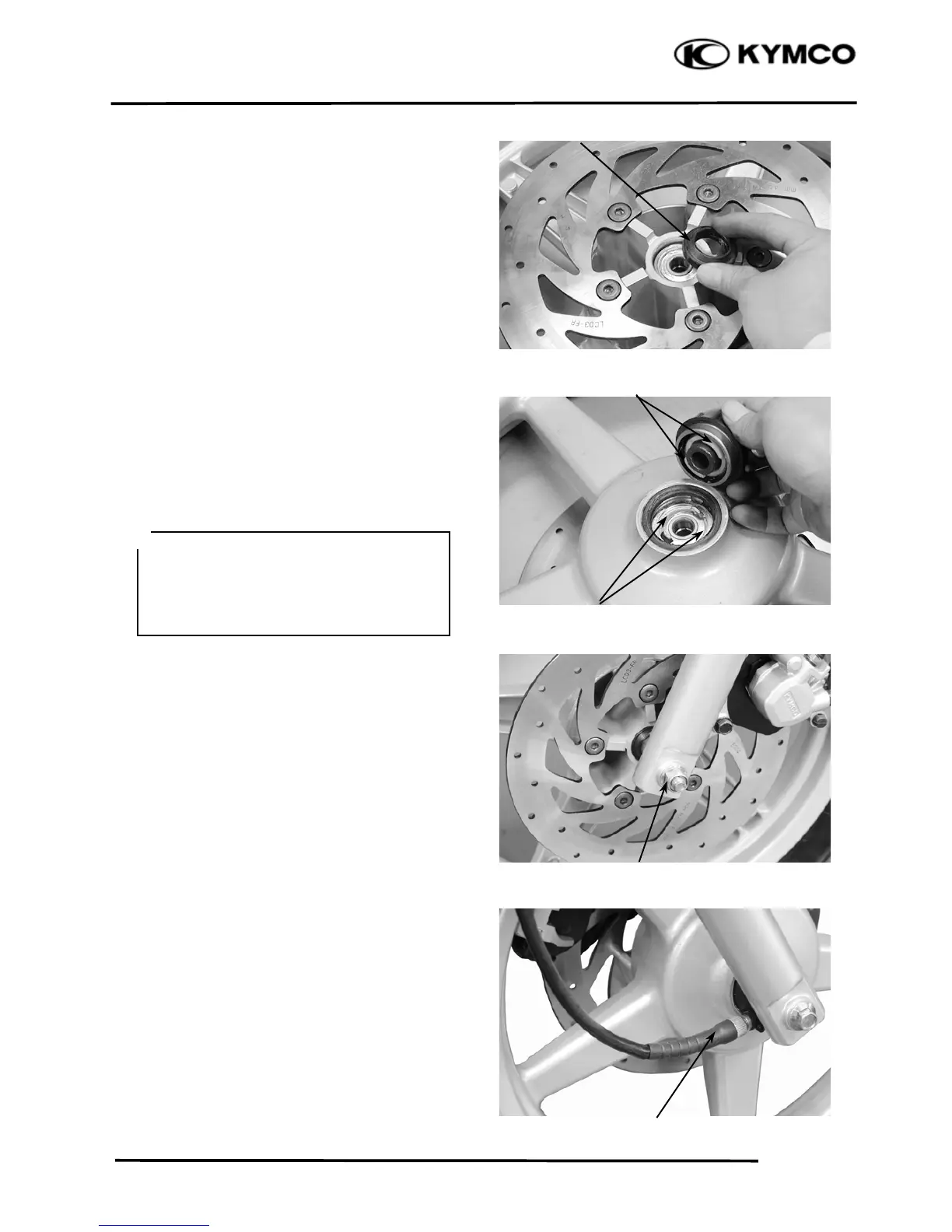

Apply grease to a new dust seal lip and install
the dust seal.
Install the side collar.
INSTALLATION
Apply grease to the brake panel dust seal lip.
Apply grease to the speedometer gear
engaging and sliding parts.
Install the brake panel by aligning the
speedometer retaining pawls with the hub
cutouts.
Apply a thin coat of grease to the axle shaft.
Install the front wheel by aligning the brake
panel groove with the front fork tab.
Insert the axle shaft.
Install and tighten the axle nut.
Torque: 5.0~7.0kg-m
Install the front brake cable and rotate the
front tire to check the speedometer if be
performed.
Connect the speedometer cable.
Pawls
If not aligned, the retaining pawl will be
deformed when the axle nut is tightened.
After installing the axle, turn the wheel to
make sure that the speedometer drive
shaft rotates freely.
＊
Cutouts
Dust Seal
A
xle Nut
Speedometer Cable
