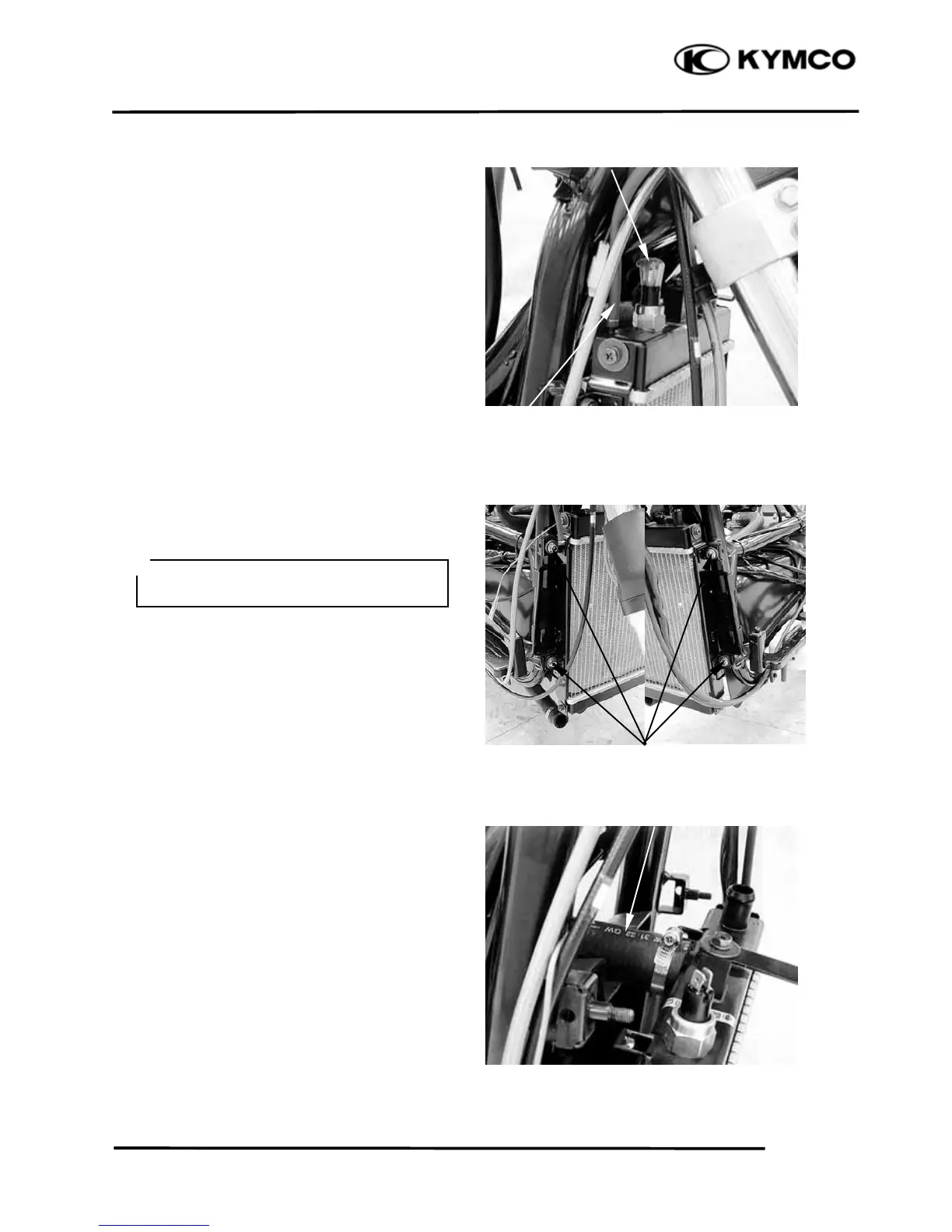

6. COOLING SYSTEM
6-14
XCITING 500
Disconnect the fan motor switch
connectors.
Disconnect the air bleed hose.
Remove the four nuts and radiator from the
frame.
Loosen the hose band and disconnect the
radiator upper hose from the radiator.
Be careful not to damage the radiato
r
core.
＊
Fan Motor Switch Connectors
Air Bleed Hose
Upper Hose
Nuts
