8-30

Troubleshooting > Clearing Paper Jams

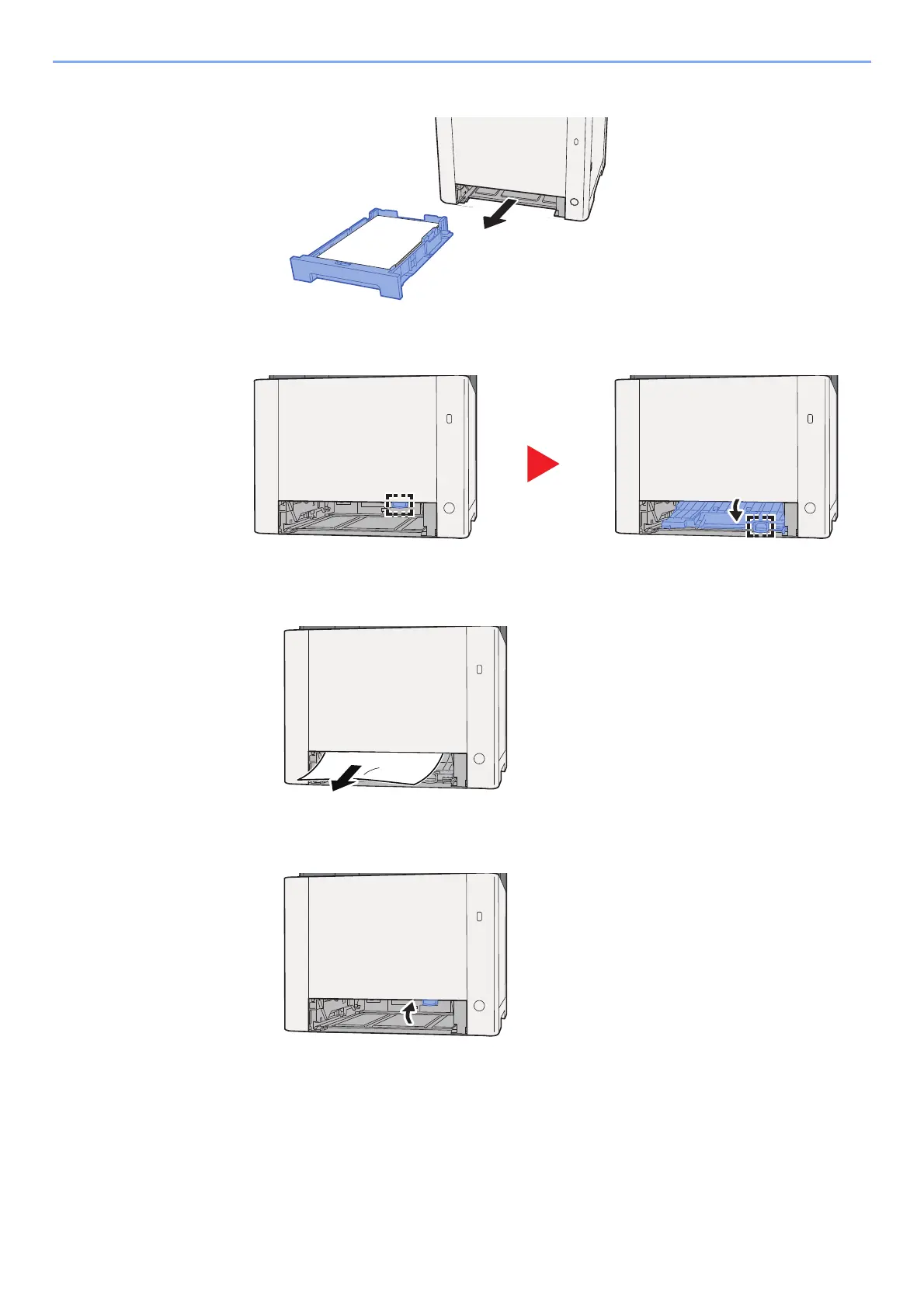

Pull Cassette 1 out toward you until it stops.

Open Feed Cover.

Remove any jammed paper.

Push Feed Cover back in.
