KYORITSU New SNAP 7 User Manual

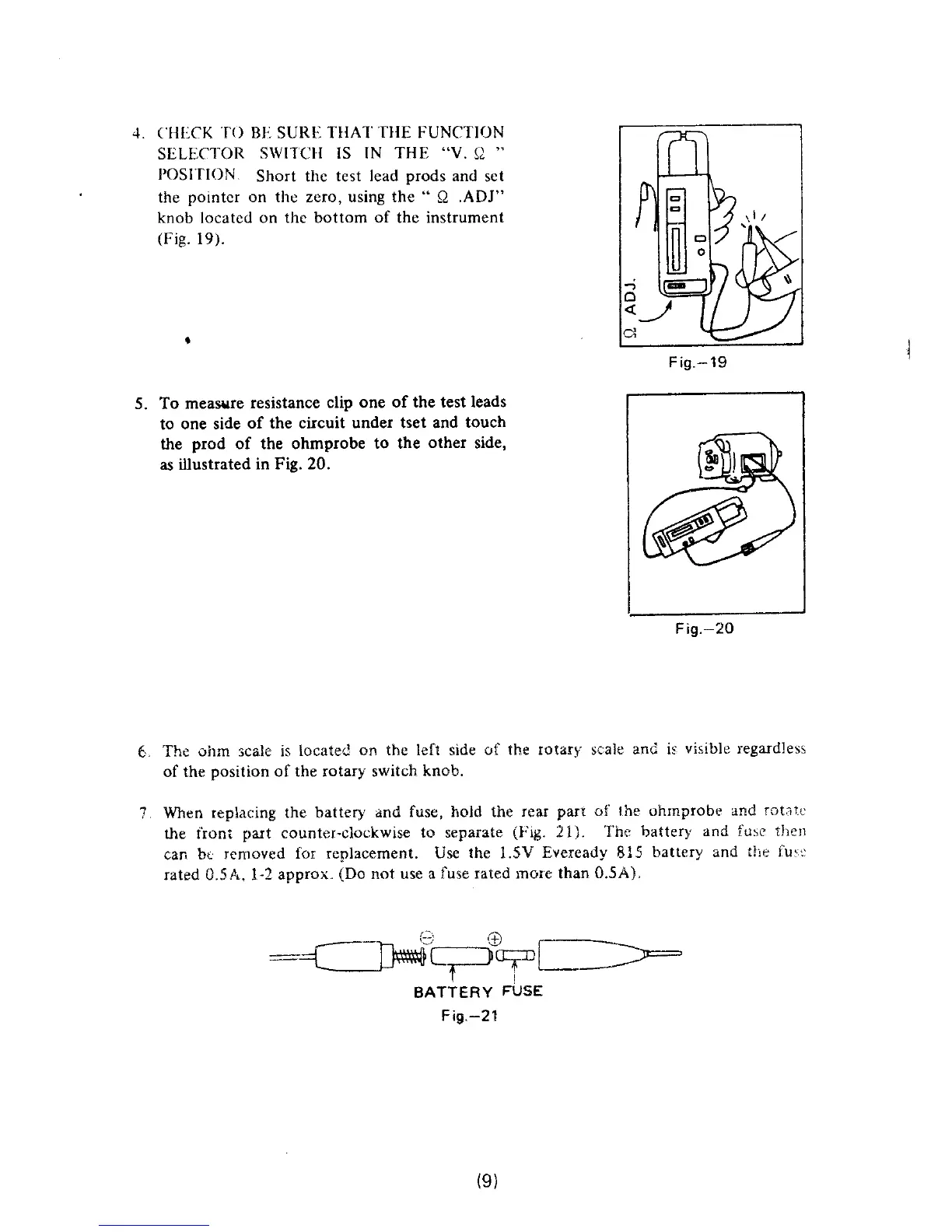

5.
('lll:CK
'IO
BI:
SURhI
1'lIAl
lllE
F'UNCTITiN
SELEC'TOR
SWIIC}I IS IN
TIIE
"V.
Q
''
POSI'IION.
Short the
test lead
prods
and
set
the
pointer on the
zero,
using the
"
O
.ADJ"
knob
located
on thc bottom of the instrument
(Fie.
l9).
t
To
measrue
resistance
clip one
of the test leads
to one side
of the circuit
under tset and
touch
the
prod
of the ohmprobe
to the
other
side,
as illustrated
in Fig. 20.
F ig.-20
The
ohm :cale is
located
on the left side
of the rolary scaie
and i::
visible
regardless
of the
position
of the rotary switch
knob.
When
replacing the battery
and
fuse, hcild the
tear
part ol t.he ohmprobe
anC rotrl.r:
the froni
part
counter-clockwise
to separate
(Fig.2l).
lihe battery
and iuse then
can
br removed
for rcplacement.
Use the 1.5V
Eveready
815
battery and
ilie t-ur:'
rated 0.5A. l-2
approx"
(Do
not use a
fuse rated more than
0.5A).
F
is.-
19
BATTERY
F ig.-21
(e)
