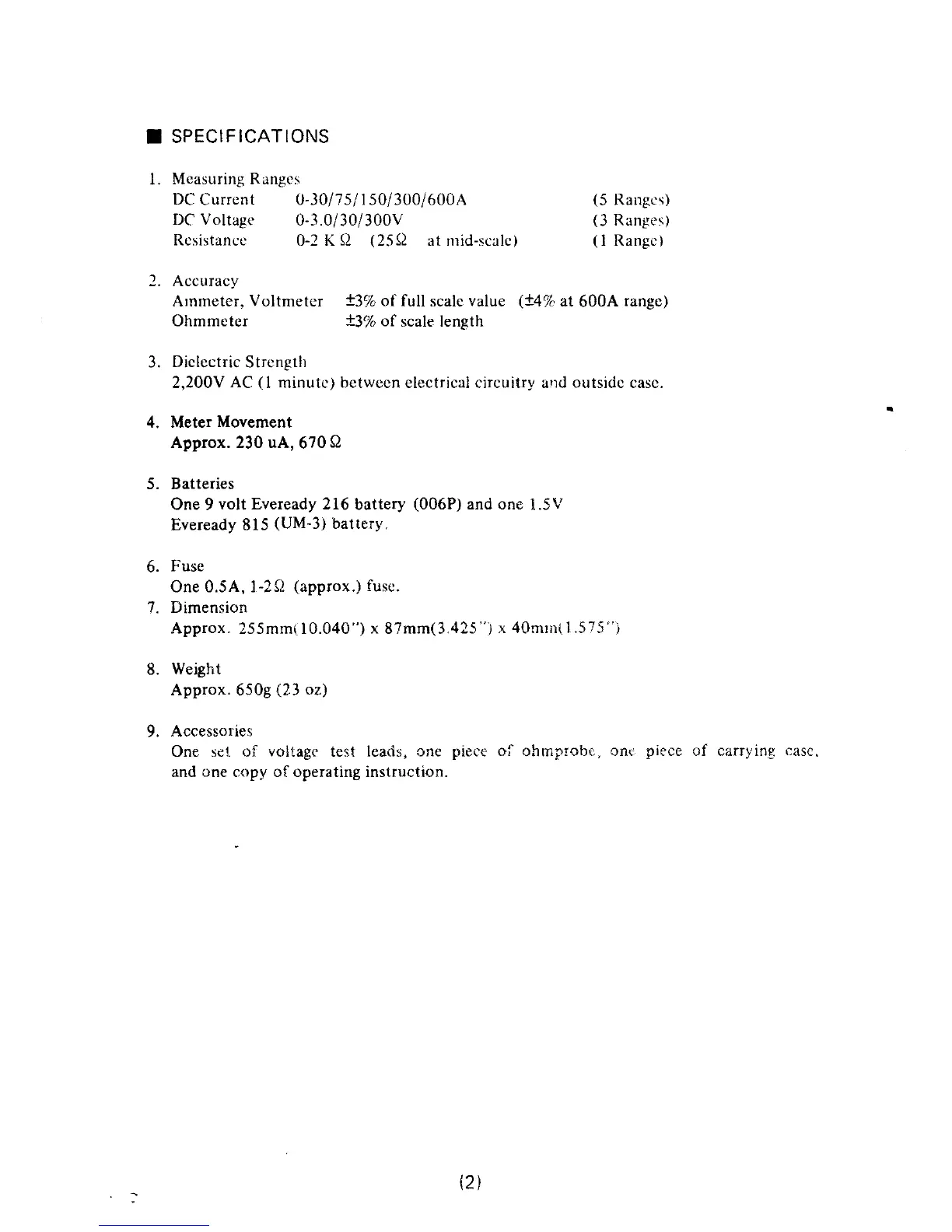

SPECIFICATIONS
l.
Measuring Range s
DC
Current 0-10/75/ I 50/300/600A
(5
Rangcs)
DC Voltage
0-3.0/30i
300V
(3
Ranges)
Resistancc
0-2 K Q
(25Q
at nrid--scalc)
(l
Rangc)
2. Accuracy
Arnmeter,
Voltmeter
13%
of full
scalc
value
(!4%
at
600,4'
rangc)
Ohmmeter
+l'le
of
scale length
3.
Dielectric
Strength
2,200V
AC
(l
minutc) between electrical oircuitry aud outside casc.
4. Meter
Movement
Approx. 230 uA,
670
Q
5. Batteries
One
9
volt Eveready 216
battery
(006P)
and one
l.5V
Eveready
815
(UM-3)
battery.
6.
Fuse
One 0.5A, l-20
(approx.)
fuse.
7.
Dimension
Approx"
255mrn(10.040")
x
87mm(3.425
')
x 40mtn(I.575"i
8.
Weight
Approx.
650g
i23
oz)
9.
Accessories
One se1 oi
voltagr
test leads,
cne
piece oi
ohrnprobc,
onc
piece
cf carrying
case.
and
one
copy of operating instruction.
