4.2 Connecting KARA to LA8
Maximum of 6 enclosures per LA8
3 KARA enclosures can be connected in parallel to each pair of output channels on the LA8 (1/2 and 3/4).
Impedance load
1 enclosure
8 Ω
2 enclosures
4 Ω
3 enclosures
2.7 Ω

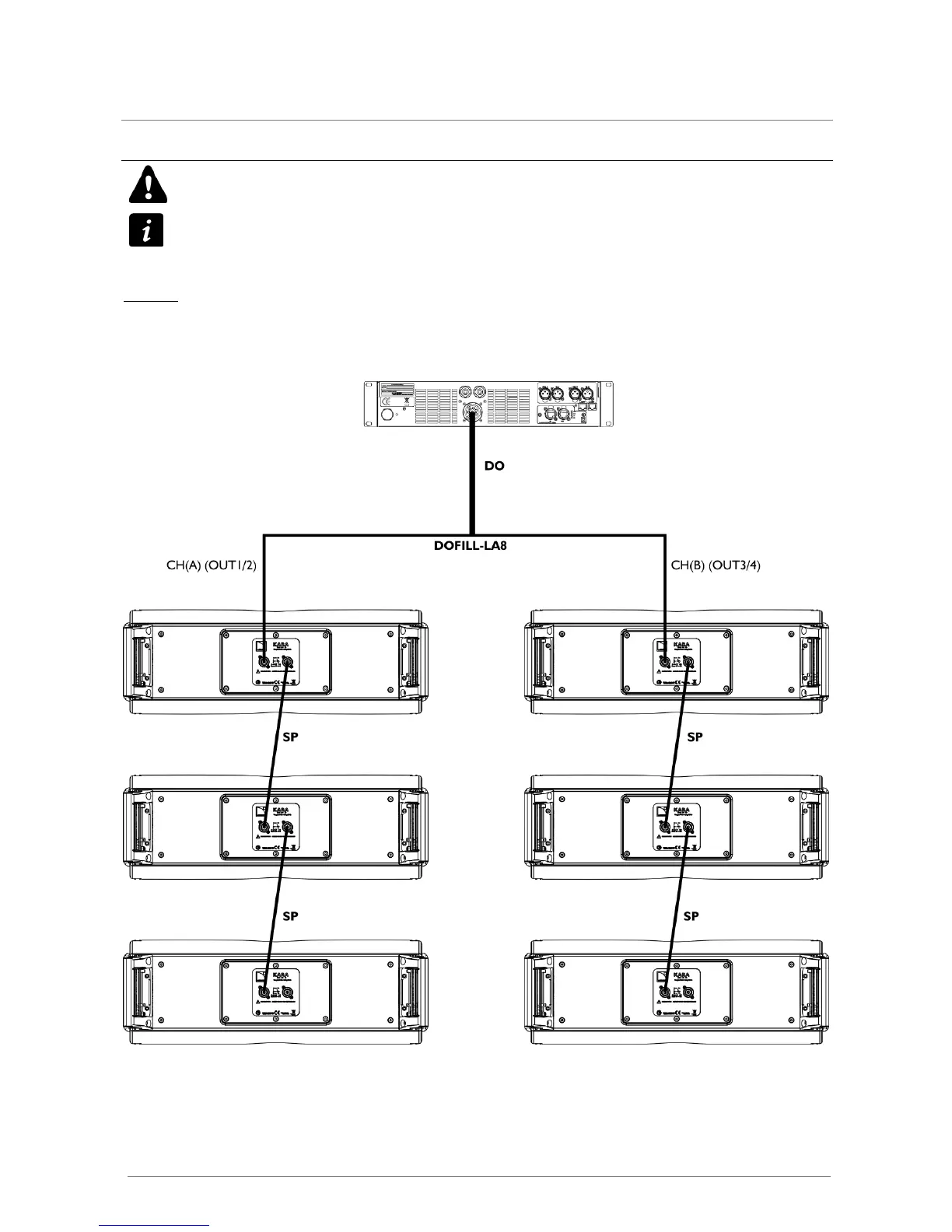

Option A
 Connect a DO cable (DO.7, DO10 or DO25) to the LA8 PA-COM
®
connector.
 Use a DOFILL-LA8 to split the signal into two channel pairs each one feeding one enclosure.
 Use SP cables to connect additional similar enclosures in parallel with the first ones.
