MPM-1000A Operator Manual 1000-7075 Rev D
6-22

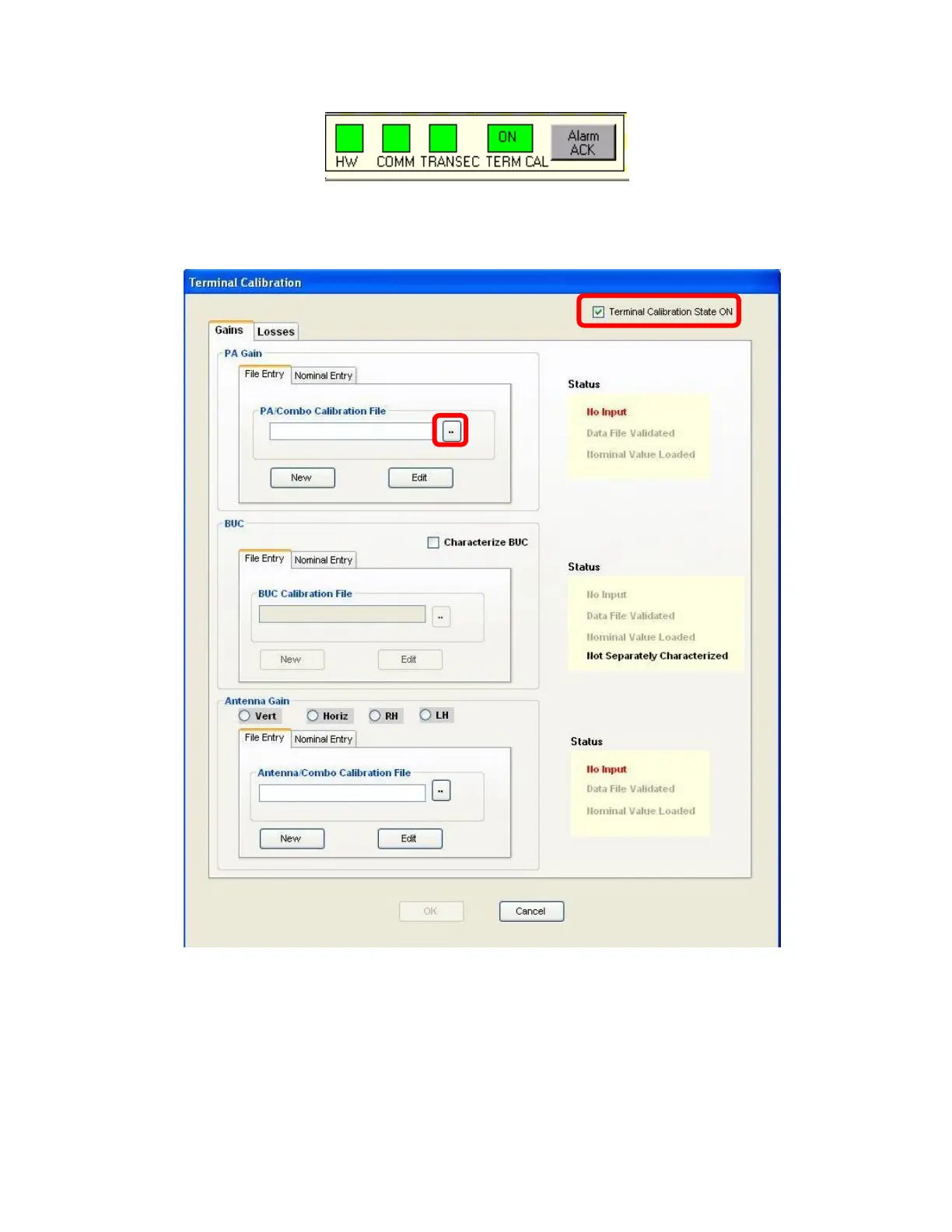

Figure 6-26 TERM CAL ON Status box
c. On Gains Tab, select on File Entry under the PA Gain field of the Terminal
Calibration. (See Figure 6-27)
Figure 6-27 Terminal Calibration Screen
d. Select the browse button (..) and a dialog window will open for you to select a
file. (See Figure 6-28)
