La Crosse Technology CA87092 - Page 4

C
C

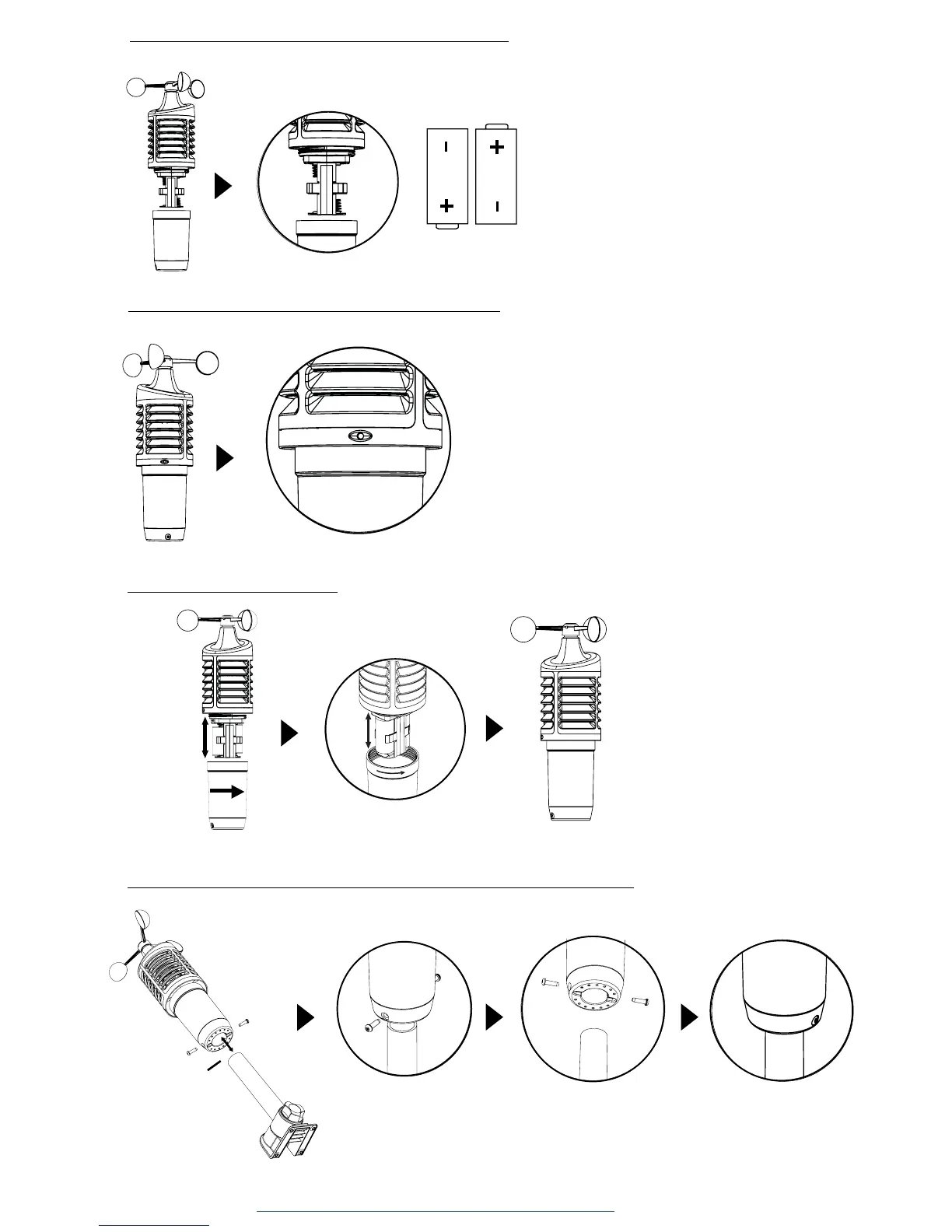

2. Install two “C” batteries according to polarity.
3. The red LED light will flash when transmitting.
4. Replace the battery cover
5. Insert pole into bottom of sensor and secure with two screws.
Do not
over tighten
screws
Turn right
to
tighten
Connect
Connect
the sensor to
the base
Screws into
designated
holes
Insert screws
on each side
of the sensor
Page | 3 www.lacrossetechnology.com/ca87092 Model: CA87092
