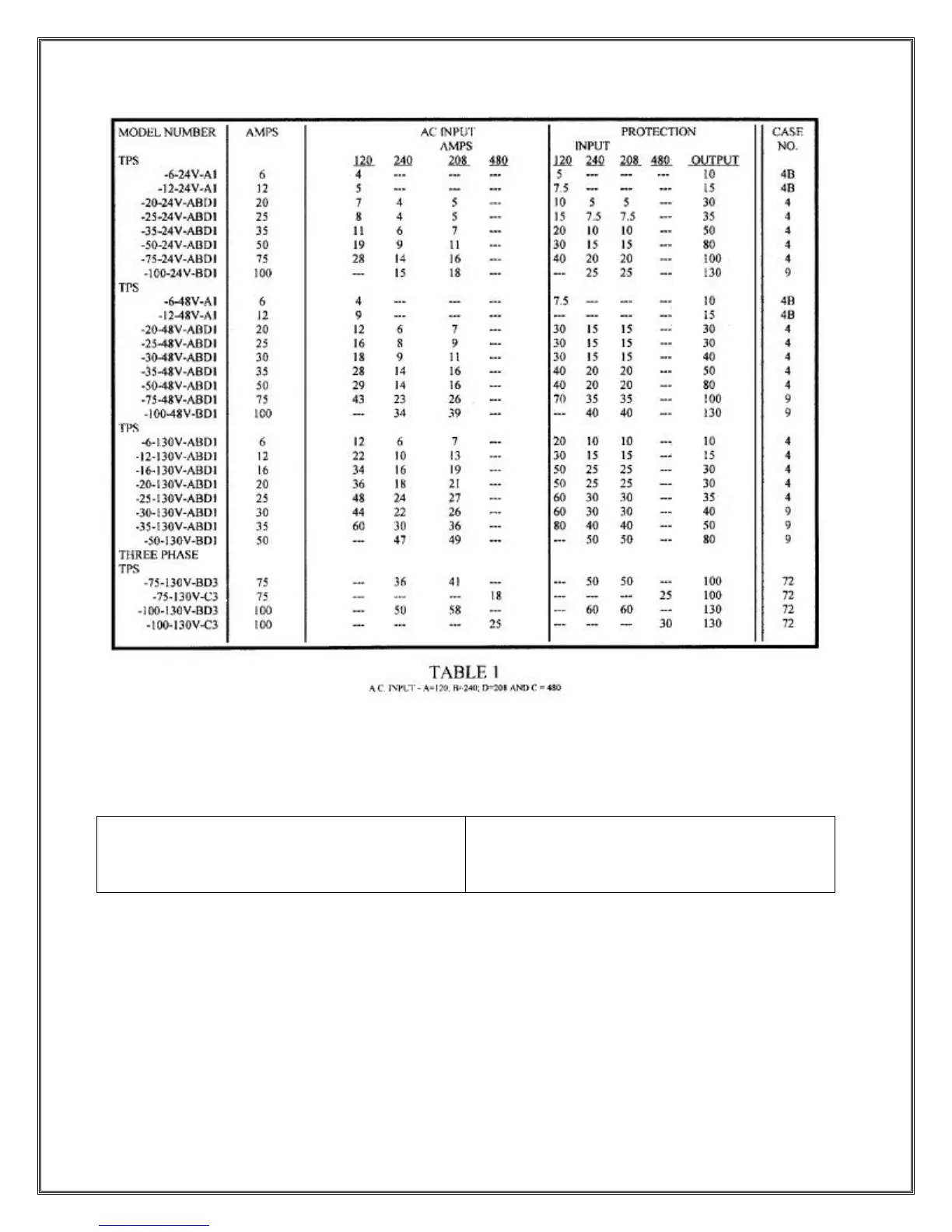

MODEL TPS - INSTRUCTIONS AND TROUBLESHOOTING INFORMATION
8 OF 20
CPN 40615
5.3 STATUS/ALARM INDICATORS
A green pilot light indicator illuminates to indicate a.c. voltage is present to the rectifier.
A red a.c. power failure light with Form “C” contacts for customer connections.
Float Indicator
A green LED illuminates to indicate that the
rectifier is in the float mode of operation.
Equalize Indicator
A yellow LED illuminates to indicate that the
rectifier is in the equalize mode of operation.
NOTE: REFER TO “INFORMER ACCESSORY ALARM PACKAGE” SECTION OF MANUAL FOR
ALARMS.
5.4 PARALLELING
This rectifier will parallel with any other La Marche Model TPS Charger.
5.5 LOAD SHARING
A load sharing circuit is provided on the terminal board. When connected, two (2) or more La Marche
TPS units are forced to share the load equally within +/- 5%. Individual unit outputs must be greater
than 10% of rated output.
