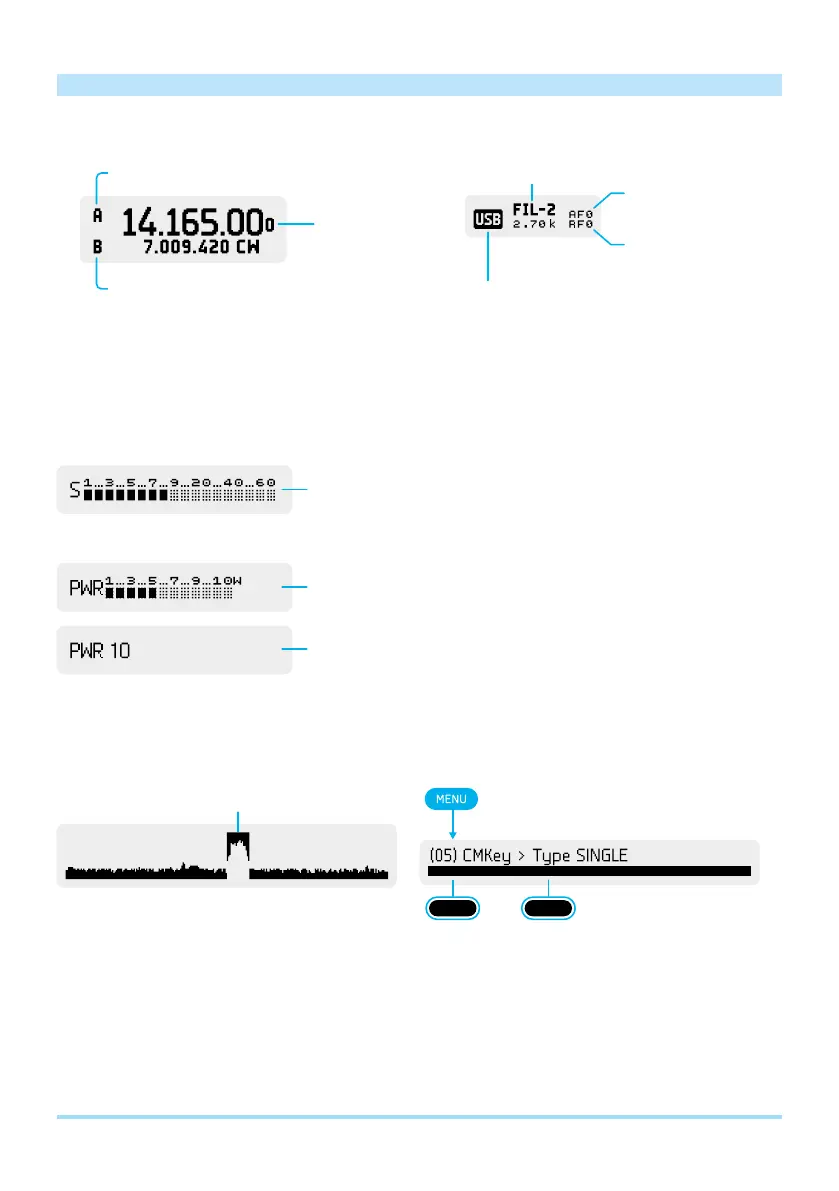

Controls end User Interface
9
3 — VFO A / B
VFO A
Basic VFO
VFO B
4 — Info block 1
Basic modes or alternative modes:
Filter band width
Receiver gain (0-100)
Monitor (0-100)
Radio frequency gain
Volume (-50+5)
A B C D E F G
5 — Graph bar
Power output (PWR),
SWR, MIC, ALC
Transmit mode:
Power output (NUM),
SWR (NUM)
Receive mode:
S-meter
6 — Info block 2
A
C
B
D
F
G
E
L
I
J
K
– Noise reduction ON
– Noise blanking ON
– Notch filter ON
– Attenuator ON
– Monitor ON
– VOX ON
– Speech compression ON
– Preamp ON
– Squelch ON
– Split mode effect ON
– Virtual intermediate frequency ON
7 — Pan-adapter
Receiving or transmission channel
8 — Menu
Menu Up Menu Down
– Function buttons
