Lab599 Discovery TX-500 - Main Display and Interface Elements

Controls end User Interface
8
USER INTERFACE

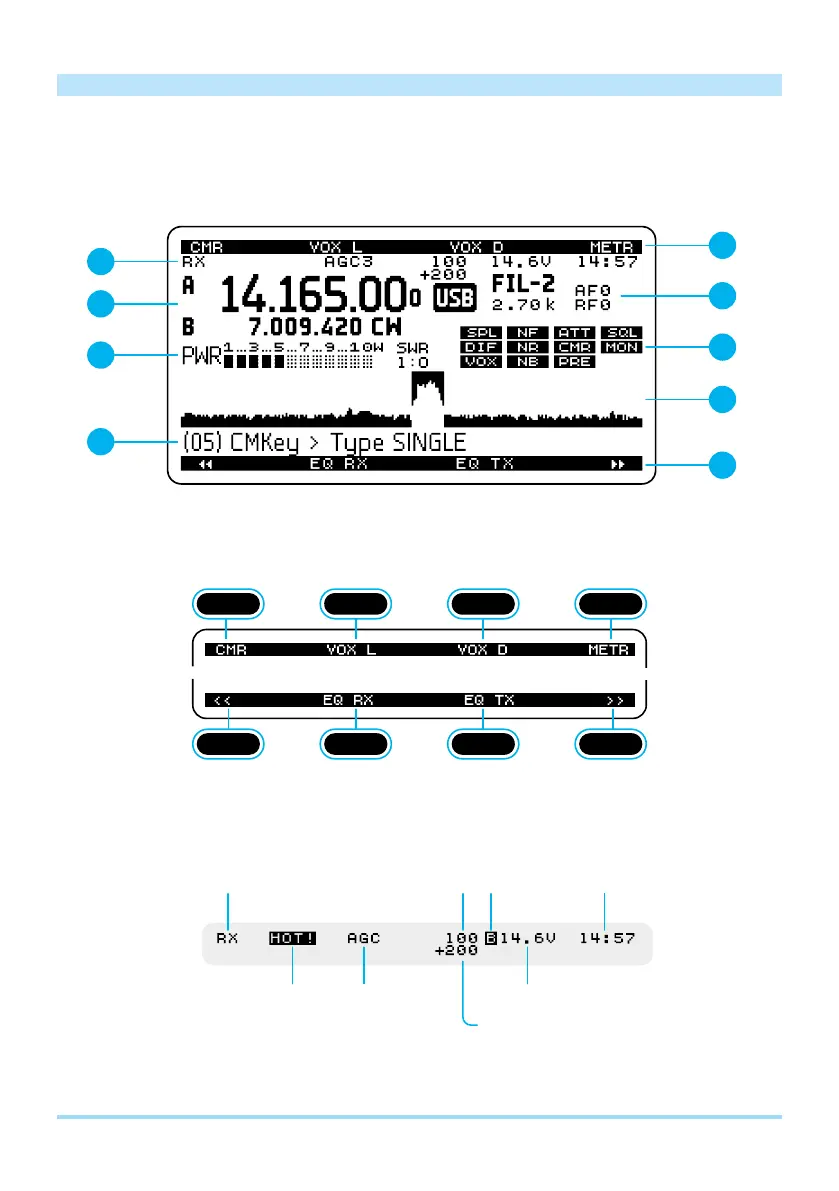

Main display
1
2
4
3
6
5
7
8
9
19 — Function buttons
2 — Information bar title
TX/RX mode
Clock
battery low
Autogain control
(delay 1-10)
Hight temperature
alert
Clock
Supply voltage
Step VFO (Step RIT/XIT), Hz
or LOCK VFO
VFO offset, Hz (RIT/XIT)
