6. When replacing the screen make sure the two tabs on the bottom of each side of
the distribution tube slide under the metal plate in the back of the sump and the
screen is seated in the sump emboss of the tank floor.
7. Re-secure the screen to the sump with the thumb screw.

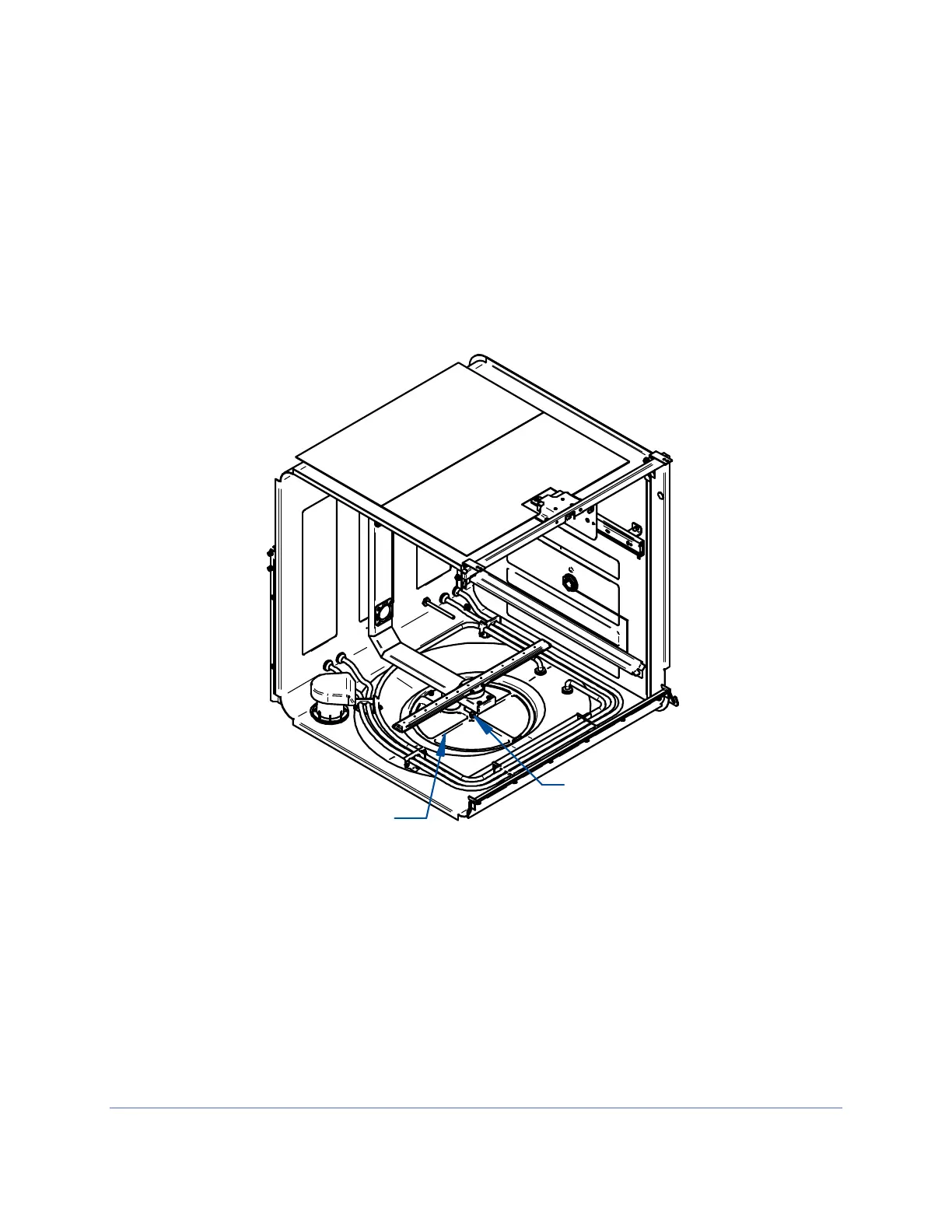

THUMB SCREW
FILTER SCREEN
Figure 8-2
