LABEL-AIRE Write-up 3138NV-DAT - FRONT AND SIDE APPLICATOR

11

FRONT AND SIDE APPLICATOR
Product Detector #1 must be positioned far enough upstream to at least allow the swing tamp
time to reach the fully extended position slightly before the product arrives at the apply position.
See Figure 1.
When using two product detectors, product Detector #2 must be positioned downstream of
Product Detector #1 and should be positioned upstream
2
of the retracted side tamp. Product
Detector #2 must be positioned far enough upstream to allow the side tamp time to reach the
fully extended position, or the side of the product, as the product arrives at the apply position.
See Figure 1.

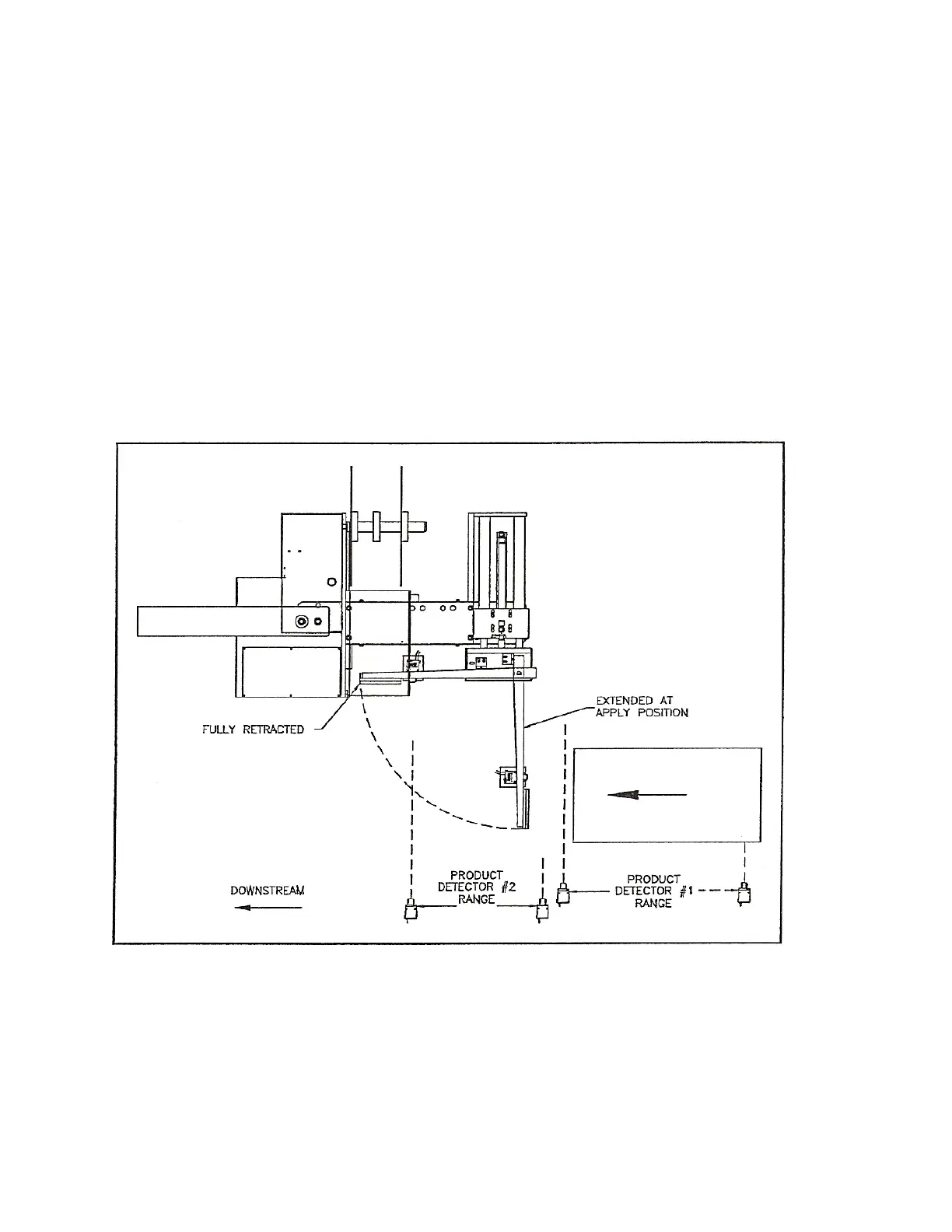

Figure1
