LABEL-AIRE Write-up 3138NV-DAT - Normal Mode

24



7.Dividethedistance"A"bytheconveyorspeedpersecond.Theresultingnumberistheapproximate
LABELONPRODUCTPOSITION.
Usethe[UP]andthe[DOWN]buttonstosettheLABELONPRODUCTPOSITIONtoslightlymorethanthe
calculatednumber.
8.Settheswingtampairregulator
tozero.
SPECIFICMODE
9.Manuallyextendtheswingtamp.
MeasurethedistancefromProductDetector#2
tojustbeyondthefullyextendedswingtamp.
Recordthedistance"B".
NORMALMODE
9.Manuallyextendtheswingtamp.
MeasurethedistancefromProductDetector#1
tojustbeyondthefullyextendedswingtamp.

Recordthedistance"B".
Distance"B"isslightlygreaterthanthedistancethattheproductwilltravelduringtheSECONDLABEL
POSITIONtime.


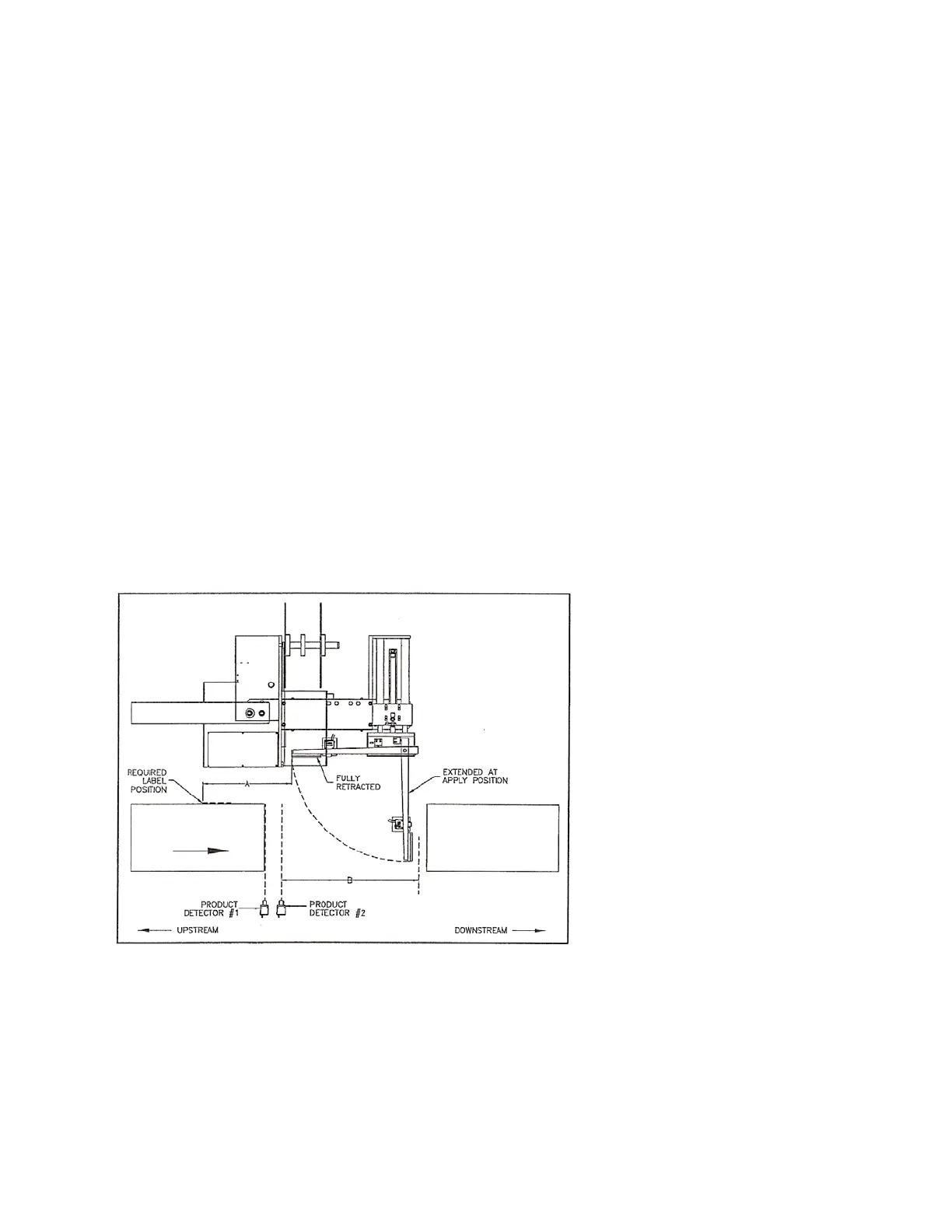

Figure10LabelPlacementSide&Rear

10.Dividemeasurement“B”bytheconveyorspeedpersecond.Theresultingnumberisthe
approximatesecondLabelposition.
