Labgear LDA204L - Installation Location; Location; Fixing; Electricity Supply

Remote Rooms
Or
FM Aerial
VCR/DVR
TV
TV
FM/DAB
PSW122
Suitable for combined
TV and Radio outlet
PSW111
Suitable for TV outlet
TV
TUNER
TV
2
FULL
1 2 3 4 5 6 7 8

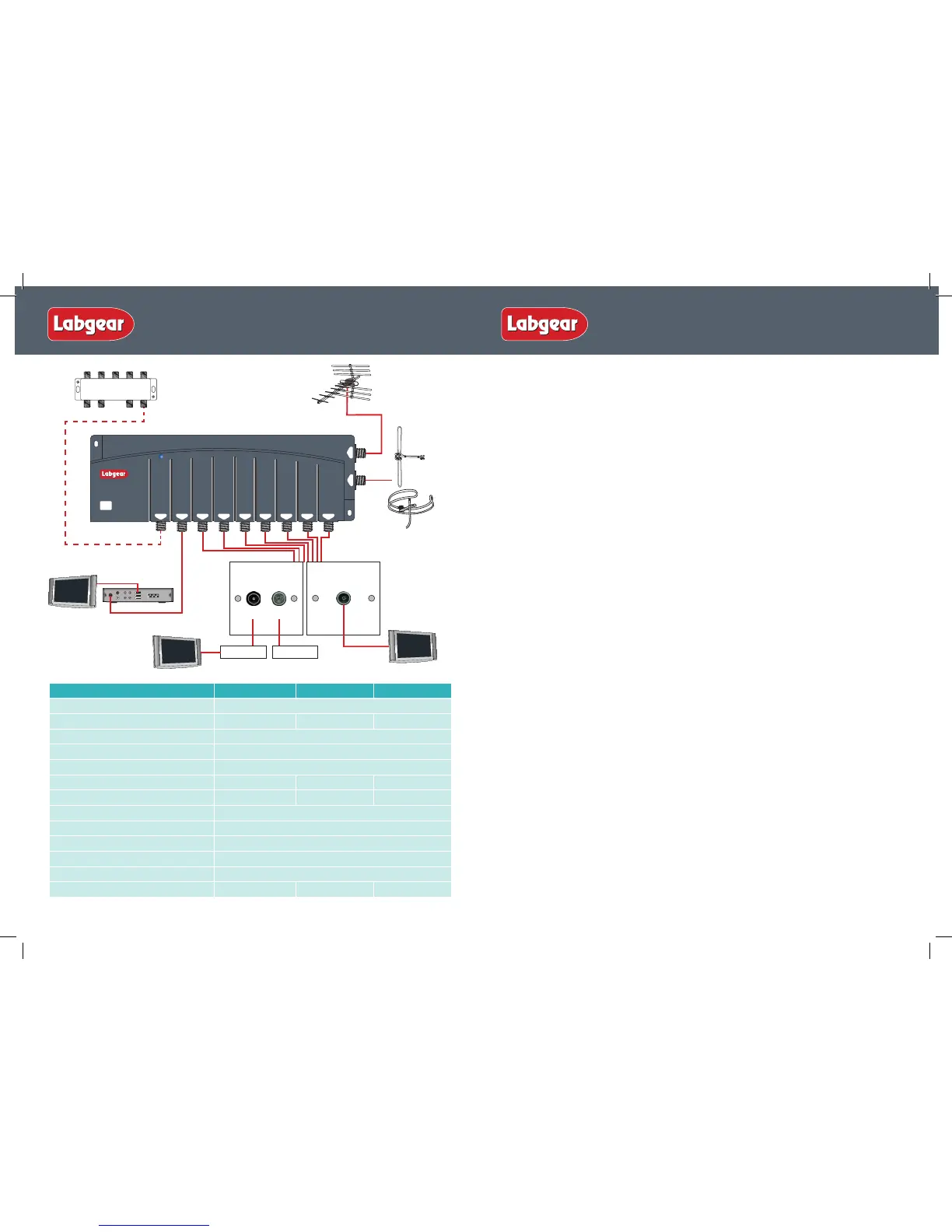

LDA208L
Lte 800
READY
UHF
VHF
AUTO 12V
Full Power to a
passive splitter
ANT IN
Freeview™ Receiver/
PVR/DVD Recorder
UHF Aerial
DAB Aerial
TV with built in
Freeview™ Receiver
Splitter e.g. FBS138
Installation
Important note: attention is drawn to the General Safety Precautions Panel on page 4 which
contains advice on safe installation and operation of these products.
Location
Choose a location for the amplier from which it is convenient to run cables from the
antennas and to the system outlets. Typical examples of suitable locations are a loft space or a
cupboard. In weak signal areas it is best to keep the antenna cables as short as possible.
Select a cool, dry location to install the amplier. This means a location where the ambient
temperature will remain between -10°C and +40°C, and which is free from risk of dripping or
splashing water.
The xing location should allow adequate access to the equipment for wiring and maintenance.
Clearance of at least 25mm should be allowed around the left hand side and top of the unit for
ventilation. More clearance will be needed on the other sides to allow access for cables.
Fixing
The amplier should be xed to a wall or other suitable hard surface, using suitable screws and
masonry plugs (not supplied). The amplier should not be left supported by its own wiring, nor
should it be left resting on a carpet or other insulating and/or inammable surfaces.
Electricity Supply
Fixed wiring and connection of the electrical supply to these products should be carried out in
accordance with BS7671 (IEE Wiring Regulations) .
Each amplier is supplied with a tted 13A mains plug. If this is not suitable, see General Safety
Precautions Panel on page 4.
As an alternative to the use of plug and socket connection, the amplier may be connected to
the supply using a switched fused connection unit BS 1363-4.
A 3 Amp fuse to BS1362 should be tted in the fused connection unit.
If the power unit is connected to the supply other than by means of its tted fused plug or a
fused connection unit, It must be protected by a non-time delayed fuse or a type B MCB at the
distribution board of rating not exceeding 6 Amp. An isolating switch should be provided near
to the unit to allow it to be disconnected from the supply when necessary.
Signal Connections
Input and output signal connections are made using F type (IEC 60169-24) connectors.
Good quality plugs should be used, preferably of the crimp on type. If twist on connectors are
used make sure they are the right size to t the cable you are using. For outside connections
use waterproof connectors.
3
2
LDA204L LDA206L LDA208L
No of Inputs 2
No of Outputs
4 6+1 8+1
Frequency Range UHF 470-790MHz
Frequency Range FM/DAB 47-300MHz
UHF/FM/DAB Gain per port 8dB
Gain to full output
- 16dB 16dB
Max Out put level (IMA3-60dB). EN50083-5
102dBµV 98dBµV 96dBµV
Noise Figure 3.5dB
Return Loss Input/Output 10dB/10dB
Isolation between outlets 20dB
Line Power 12V / 50mA
Built-in Power Supply 220-240V~50Hz at <3W
Dimensions 184 x 85 x 35mm
265 x 95 x 35mm 265 x 95 x 35mm
Installation Instructions Installation Instructions
