Labgear LMA113R - General Safety Precautions; Electrical Safety and Installation; Working Safely at Height; Typical Installation and Connections

OUT 1
IN
Power pass
PSW111
TV outlet
PSUFC
TV
Specications LMA113R LMA209R LMA125VR LMA415VR
No of Inputs / Outputs 1 / 1 1 / 2 1 / 1 2 / 4
Frequency Range 470-782MHz 470-782MHz 87-230/470-782MHz
Gain per port 13dB 10dB 12-25dB 0-15dB
Noise Figure Typ. <2dB Typ. <2dB Typ. <2dB Typ. <2dB
Max Output level (IMA3-60dB) 98dBµv 94dBµv 101dBµv 94dBµv
Isolation between outlets N/A 22dB N/A 22dB
RED, EMC and LVD Compliant Compliant
Power Requirement 12V DC 30mA 12V DC 60mA
Power Supply
PSUFC
DC Output
12VDC - Voltage tolerance 5% - Current 300mA max
Power Requirement
220-240V~50Hz at <3W
Signal Insertion Loss
0.5dB
Typical Installation and Specications
COMPLIANT
2
General Safety Precautions
• To avoid risk of electric shock during
installation we recommend that the power
unit and all associated TV receivers, etc.
are isolated from the mains until the
installation is complete.
• Fixed wiring for electrical supply to these
products should be carried out in
accordance with BS7671 (IET Wiring
Regulations).
• Distribution systems supplying signals to
more than one household should comply
with the safety
requirements of BS EN60728-11.
This requires the system to be earth bonded
or the use of isolated outlets.
• If you are in any doubt about an installation,
refer to a qualied aerial installer.
• When working on an installation outside,
beware of overhead power lines.
• Observe safe working practices, tread carefully
and ensure adequate lighting is available
in loft or roof space.
• Always follow manufacturer’s operating/safety
instructions when using tools/ equipment.
• Only carry out work outdoors at height if you
are competent in the use of ladders and
related access equipment.
• Always read and follow the manufacturer’s
instruction label afxed to the ladder.

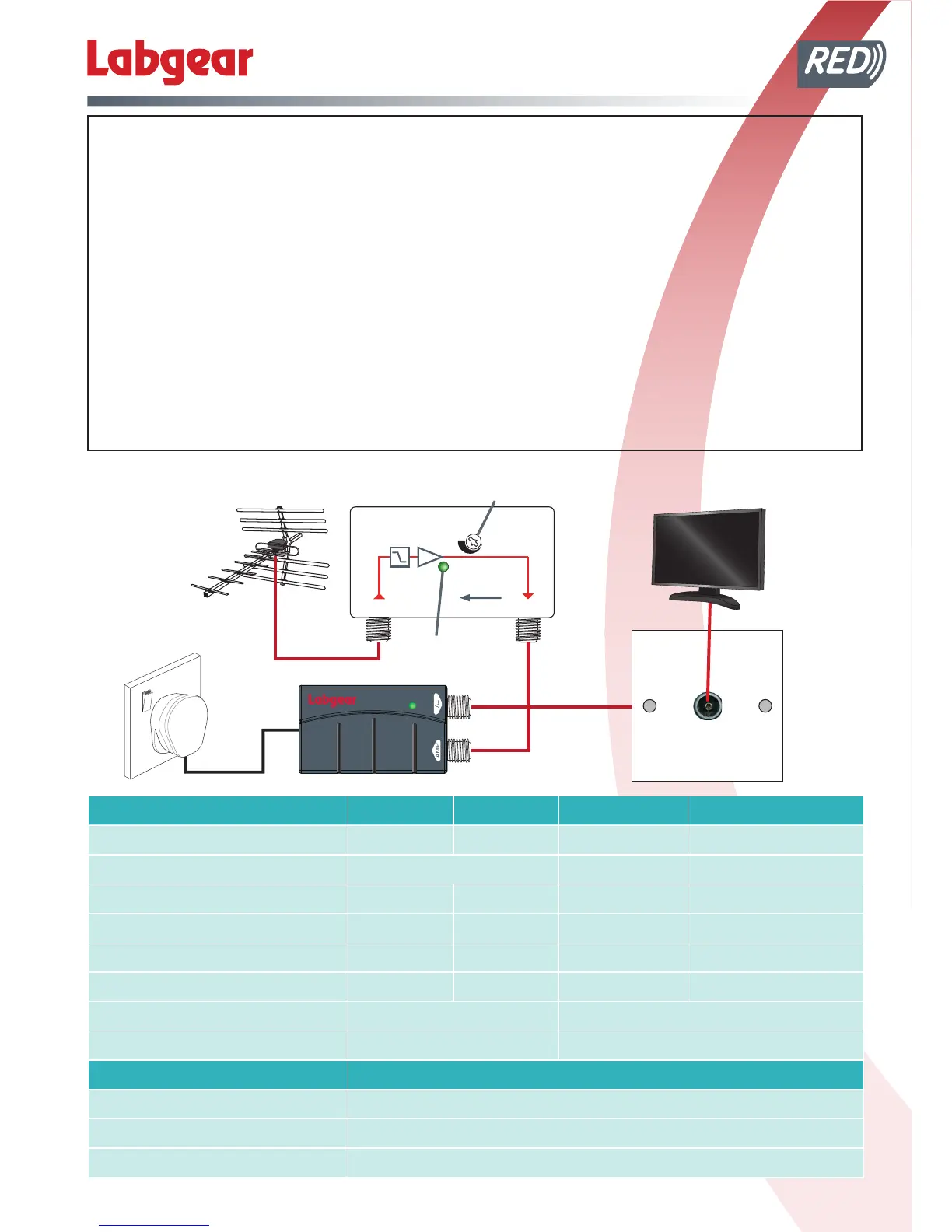

Typical Connection
Power LED
Adjustable
gain contro
l
Fig. 1
