46 | MSD Legend Series Operation & Maintenance Manual

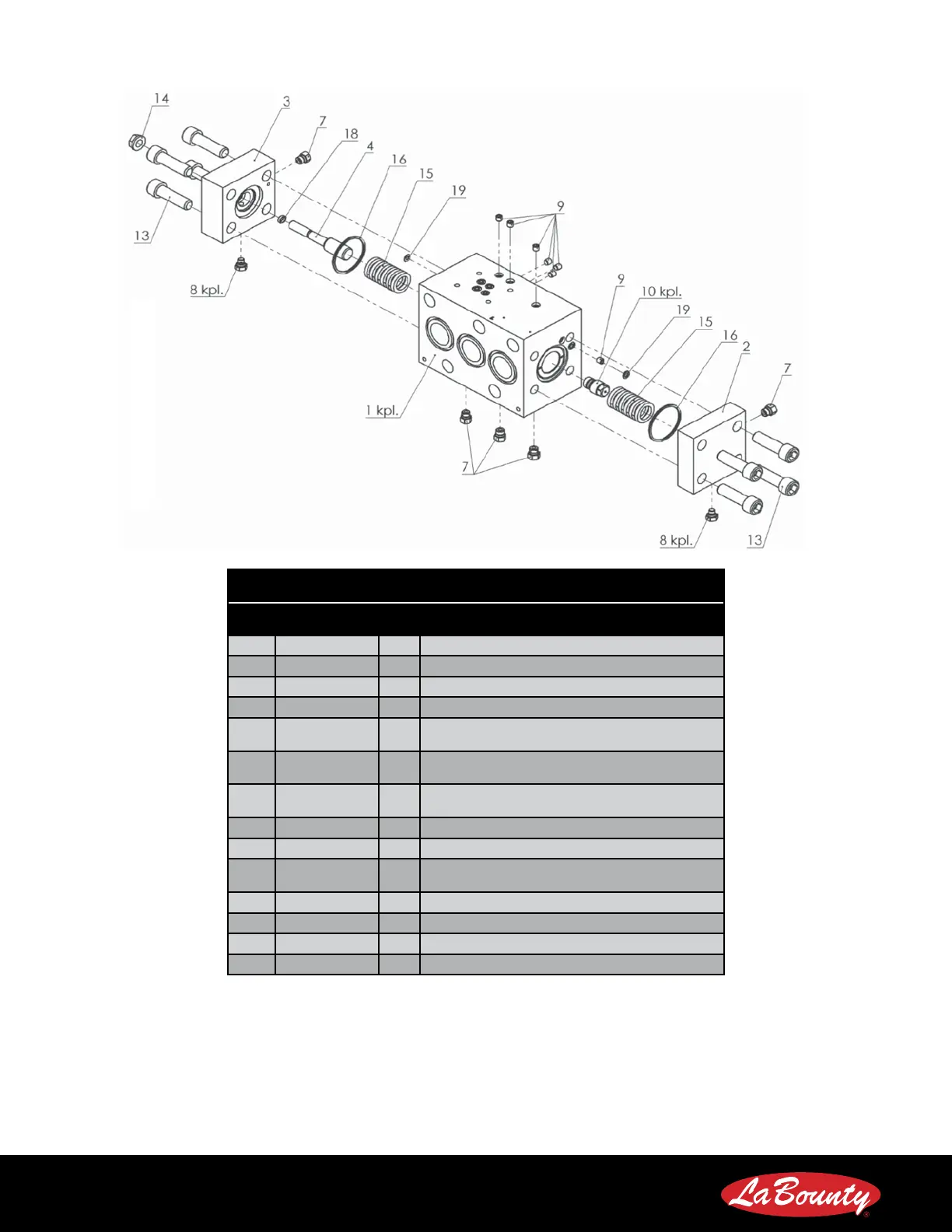

Main Valve Assembly
Main Valve Assembly
Item Part Number Qty Description
1 513876 1 Main Valve Housing
2 511568 1 Valve Cap
3 511569 1 Valve Cap
4 511548 1 End Stop
7 511515 5 Screw Plug
Torque to 15 ft. lbs. (20 Nm)
8 513086 2 Screw Plug
Torque to 15 ft. lbs. (20 Nm)
9 513087 7 Screw Plug
Torque to 7 ft. lbs. (10 Nm)
10 513877 1 Check Valve
13 513878 8 Socket Head Cap screw
14 511504 1 Grommet Nut
(Torque to 22 ft. lbs. (30 Nm)
15 511550 2 Spring
16 511503 2 O-Ring Seal
18 511505 1 Thread Seal
19 512347 2 O-Ring Seal
