INSTRUCTIONS FOR INSTALLATION AND USE.
SMD90B35E-C
T
ERMINAL
F
UNCTION
R
ATINGS
T
ERMINAL
F
UNCTION
R
ATINGS
L-N Power supply 230 Vac;50/60Hz L3, L4 Auxiliary loads 8(3)A; 230 Vac
L1, L2 Compressor 20(6) A; 230 Vac L9, L10 Defrost 8(3)A; 230 Vac
L5, L6 Evap. Fans 8(3)A; 230 Vac A1-A2 Alarm 8(3)A; 230 Vac
A3
L7 Indoor lights 8(3)A; 230 Vac

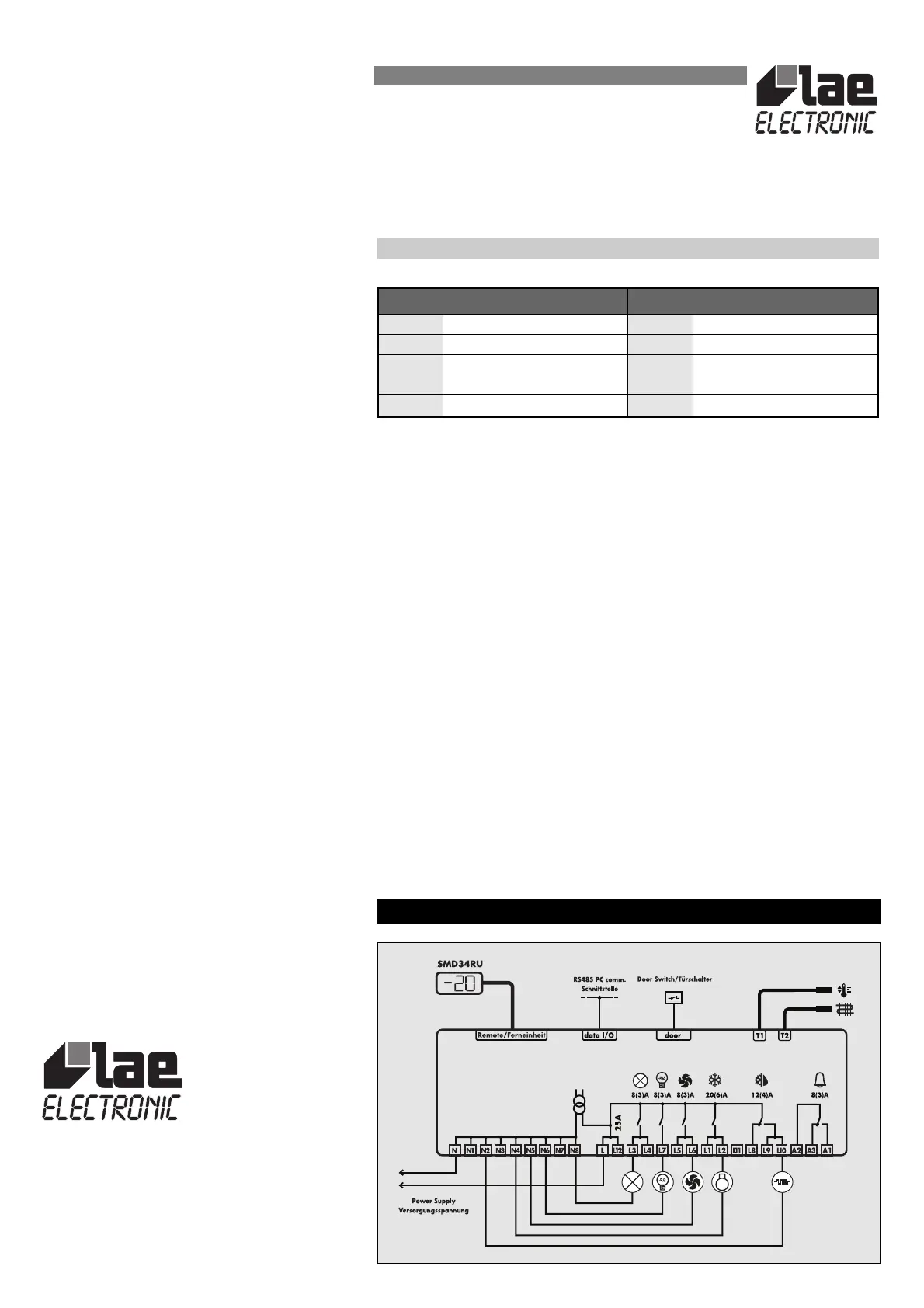

WIRING DIAGRAM
