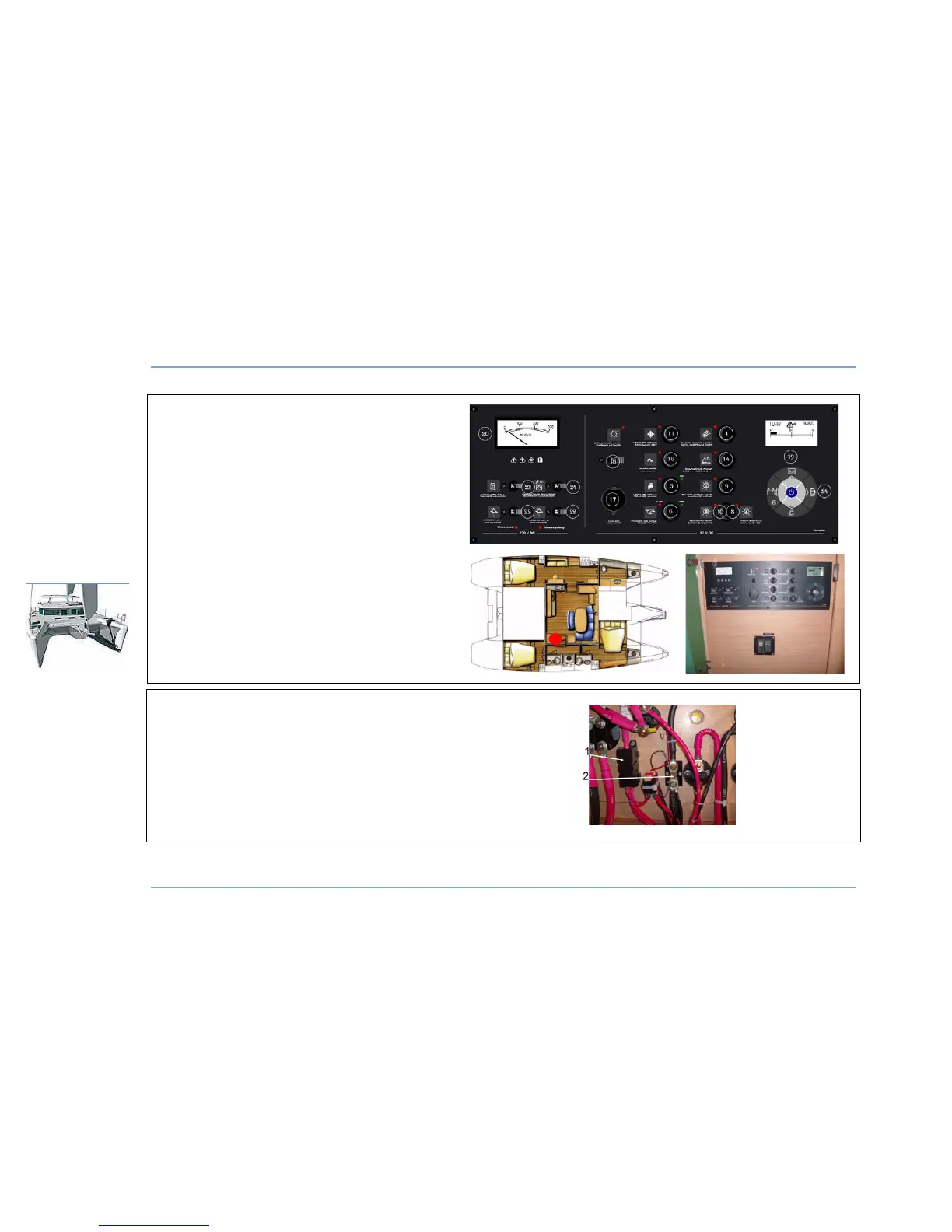

Lagoon 421 - Electrical Panel

LAGOON 421
ELECTRICITY
56
1 - Navigation - 10A
5 - Water unit - 10A
6 - Bilge pump - 15A
8 - Navigation lights - 10A
9 - Mooring light - 10A
10 - Steaming light - 10A
11 - Fridge - 10A
14 - Deck light - 10A
15 - Interior lighting - 10A
16 - Comfort - 15A
17 - 12 V socket - 15A
18 - Fuel oil gauge
19 - Water gauge
20 - Voltmeter
22 - 220 V socket
23 - Water heater - 10A (220V) ou 15A (110V)
24 - Charger - 10A
1 - General fuse 12V - 100A
2 - SHUNT 12V 100A (used to measure current)
Lay out of: Starboard aft cabin
ELECTRICAL PANEL
