4.2. Steering system
- At least once per year check the tension of the cables; in case of doubt, consult your dealer.
- Boats equipped with a steering wheel are provided with an emergency tiller, make sure that it is accessible
at all times.
- Remove the deck plate, fit the tiller into the socket on the top of the rudder stock and operate the valve.
- The emergency tiller is designed for running at reduced speed only in the event of a steering failure.

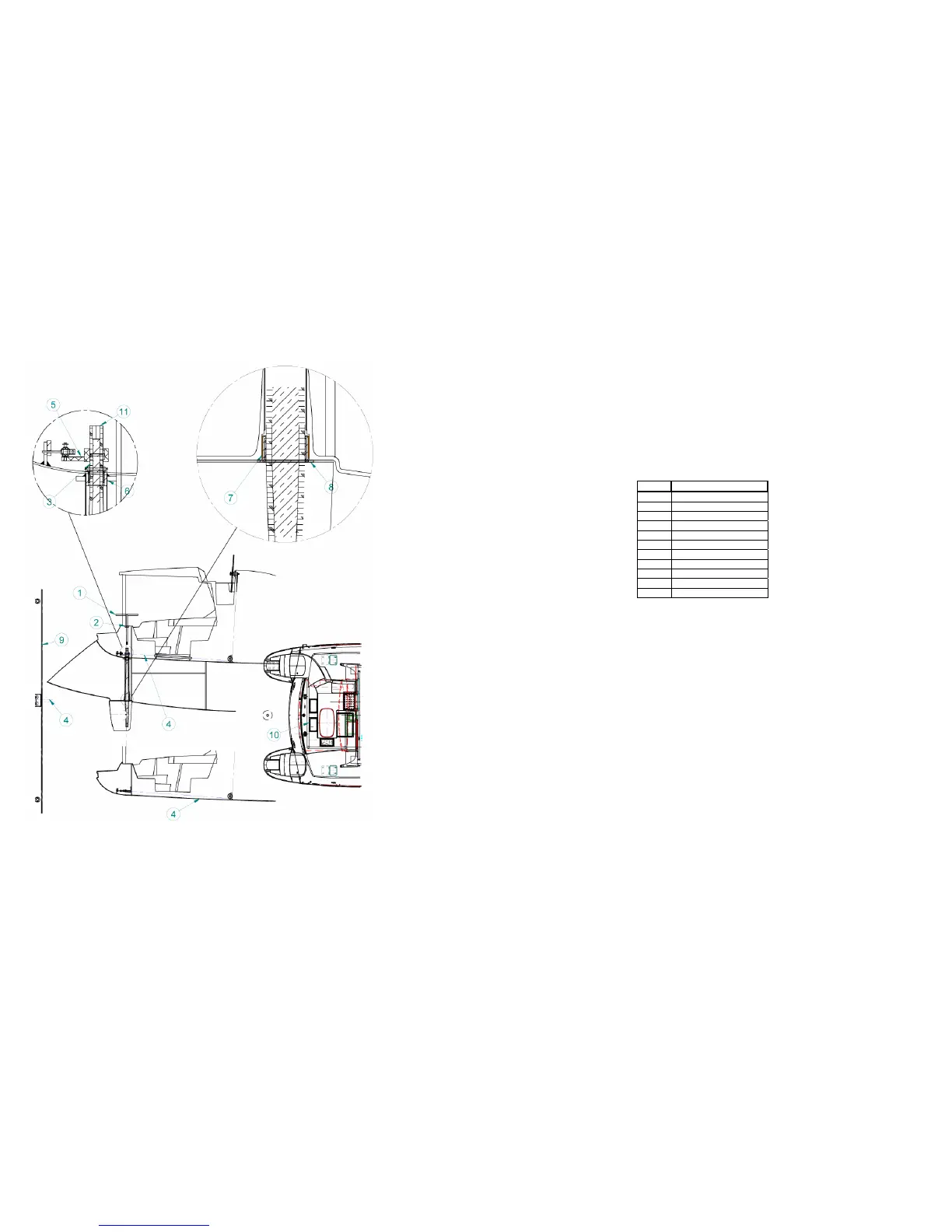

REP DESIGNATION
1 Emergency tiller
2 Rudder stock access cover
3 Rudder stock
4 Steering cable
5 Steering arm
6 Rudder stock tube bush
7 Bronze bush
8 Compensation bush
9 Link
10 Emergency tiller fitting
11 Rudder stock head recess
