4.6. Pumps, seacocks and skin fittings
4.6.1. Pumps
- The bilge pump system is not intended to guarantee the buoyancy of the boat in case of damage.
- Never let the pumps run dry, this could damage them.
- Bilge water should be kept to a minimum.
- Visually check at regular intervals the working condition of each bilge pump.
- Make sure that the suction points or pump strainers are not obstructed by debris.
- If there are watertight bulkheads isolating the fore and aft peaks fitted with cocks, they should be normally
closed and only opened to drain water into the main bilge.

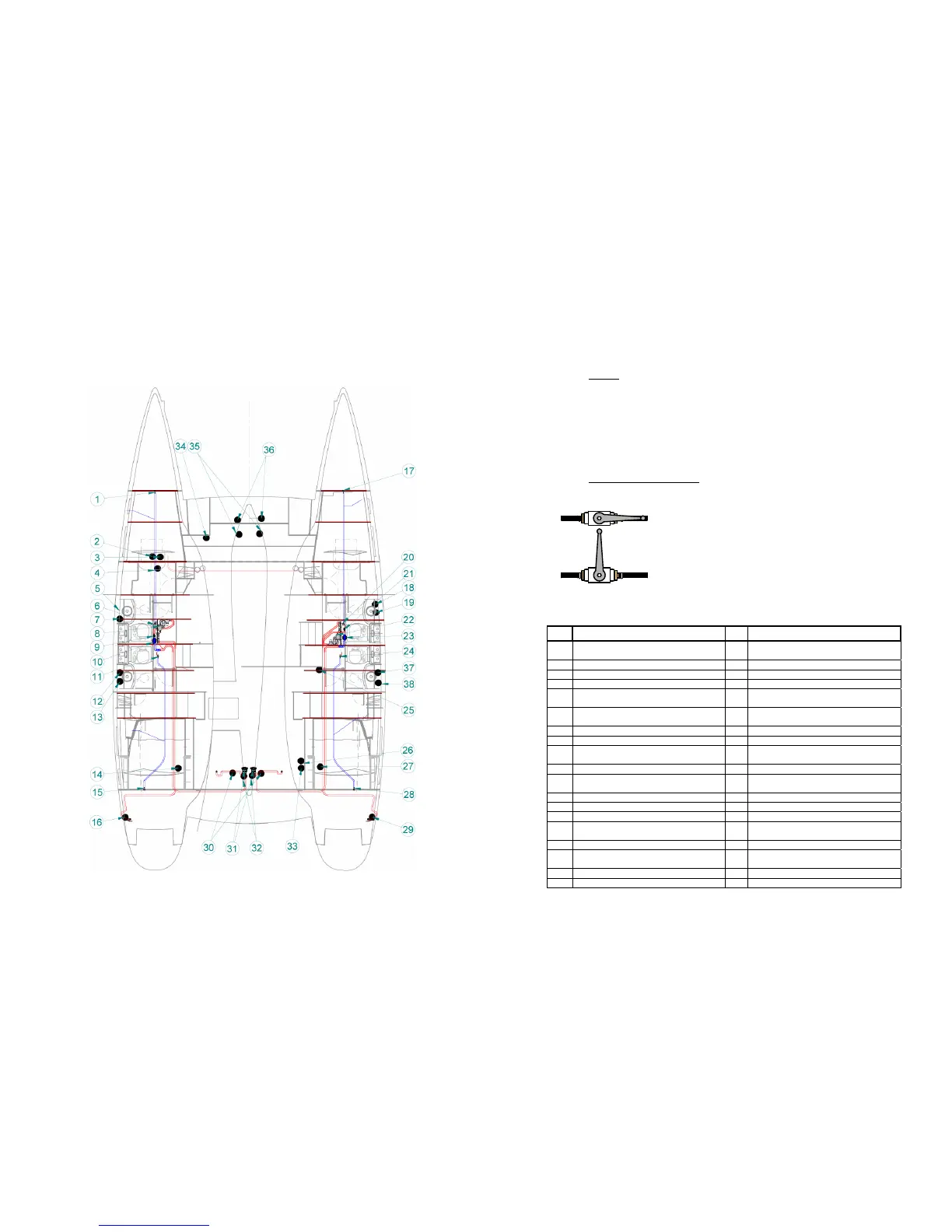

4.6.2. Seacocks and skin fittings
OPENING AND CLOSING OF SEACOCKS
OPEN
CLOSED
- Maintain seacocks, cockpit draining drains, deck plates and other opening / closing devices in the closed or
open positions, depending on the case, to minimise the risk of flooding.
REF Description REF Description
1 Forward port watertight compartment
bulkhead drain
20
Forward std watertight compartment draining
valve
2 Log through-hull fitting (optional) 21 Std electric bilge pump strainer (37L/min)
3 Sounder through-hull fitting (optional) 22 Std shower draining pump
4 Air-conditioning seawater inlet (optional) 23 Std electric bilge pump (69L/min)
5 Forward port toilet inlet
24
Aft std watertight compartment draining
valve
6 Forward port watertight compartment
draining valve
25
Kitchen sink drain
7 Forward port toilet outlet 26 Aft std cockpit drain
8 Port shower draining pump 27 Std air-conditioning outlet (optional)
9 Port electric bilge pump strainer (37L/min)
28
Aft std watertight compartment bulkhead
drain
10 Port electric bilge pump (69L/min) 29 Std electric bilge pump outlet
11 Aft port watertight compartment draining
valve
30
Lazarette drains
12 Aft port toilet inlet 31 Manual bilge pump (2 x 0.9l/min)
13 Aft std toilet outlet 32 Manual bilge pump outlet (x 2)
14 Port air-conditioning outlet (optional) 33 Gas locker drain
15 Aft port watertight compartment bulkhead
drain
34
Pressurised water unit
16 Port electric bilge pump outlet 35 Fwd locker drain
17 Forward std watertight compartment
bulkhead drain
36
Chain locker drain
18 Forward std toilet inlet 37 Aft std toilet inlet
19 Fwd std toilet outlet 38 Aft std toilet outlet
