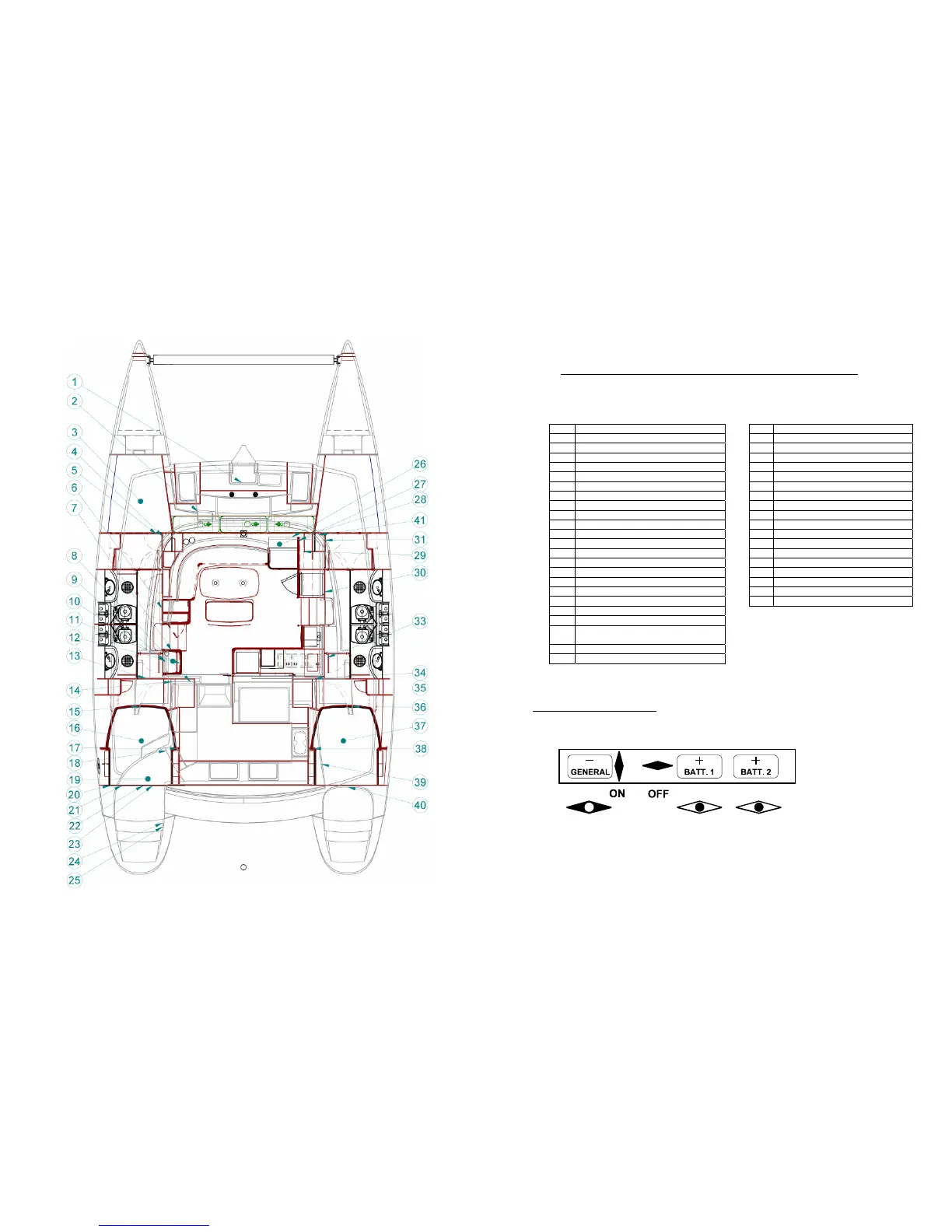

4.3.3. Location of battery switches, switchboards and electrical appliances…
- Before changing a fuse, switch off the battery switches.
Some of the equipment in the following table could be on option..
REF DESCRIPTION REF DESCRIPTION
1 Windlass 24 Shore power socket
2 Windlass circuit breaker 25 Shore power air-conditioning socket
3 Fwd port cabin air-conditioning 26 Car radio
4 Fwd port cabin air-conditioning control 27 Fridge electric compressor
5 220/110 V Socket 28 Saloon air-conditioning
6 Converter 29 220/110 V Socket
7 Electrical distribution panel 30 Saloon air-conditioning control
8 Top cockpit speaker 31 220/110 V Socket
9 Winch relay (back of distribution panel) 32 220/110 V Socket
10 220/110 V Socket 33 Microwave
11 220/110V circuit breaker 34 Cockpit speaker
12 Windlass circuit breaker 35 Std aft cabin air-conditioning control
13 Saloon speaker 36 Battery switch
14 Port aft cabin air-conditioning control 37 Std aft cabin air-conditioning
15 Battery switch 38 Prise 220/110 V
16 Port aft cabin air-conditioning 39 Water heater
17 220/110 V Socket 40 Load repartitor
18 Cockpit speaker 41 Fwd port cabin air-conditioning control
19 Autopilot computer
20 Shore power socket circuit breaker
21 Shore power air-conditioning socket circuit
breaker
22 Battery charger
23 Load repartitor
Operation of battery switches
