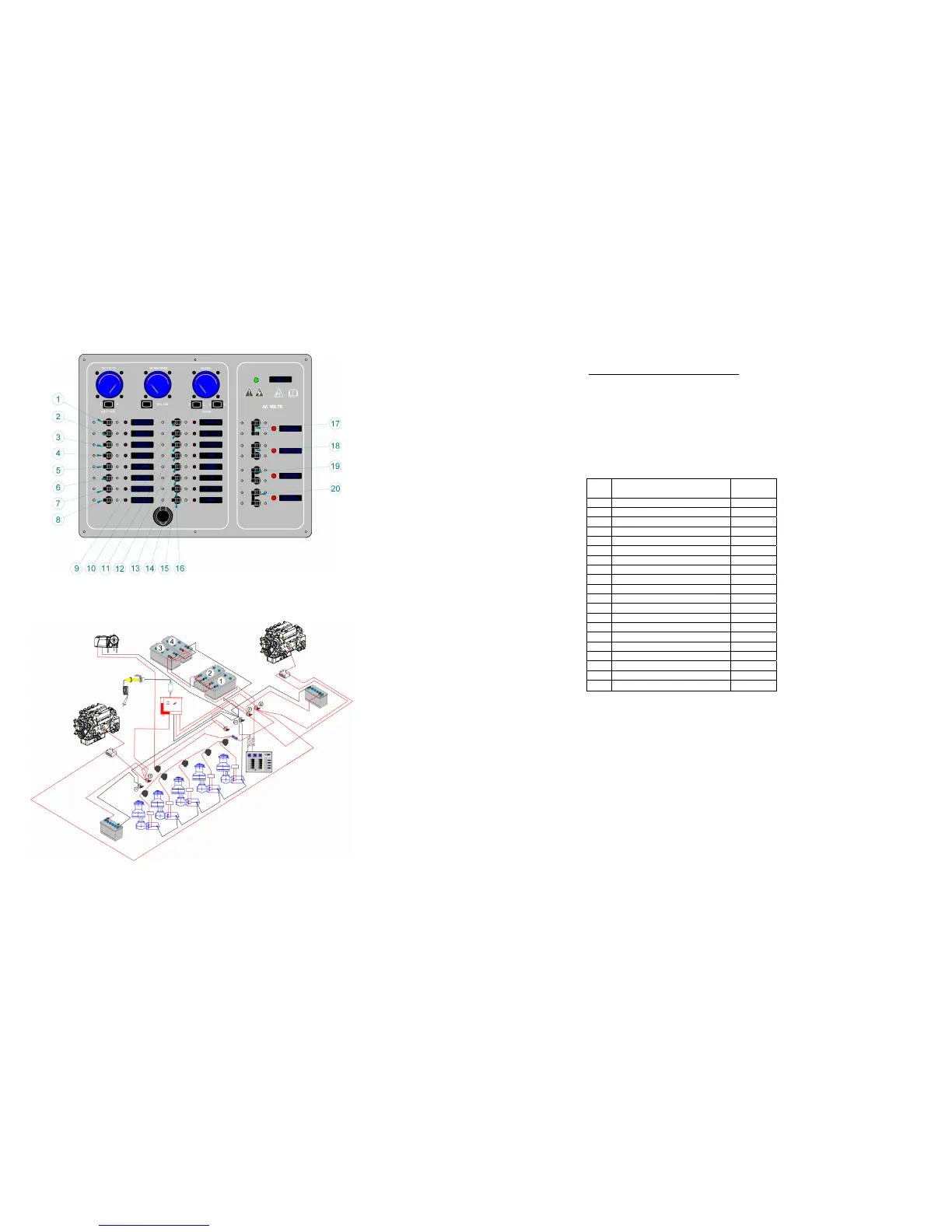

4.3.4. Switchboard and electrical systems
- Before changing a fuse, switch off the battery switches.
The fuses of functions presented on the switchboard are found behind it.
Some equipment could be on option.
REF FUNCTION Fuse
1 Navigation lights 10
2 Anchor light 5
3 Masthead light 5
4 Deck light 10
5 Interior lighting 15
6 Saloon lighting 20
7 Instruments lighting 5
8 12V DC socket 10
9 Pressurised water unit 15
10 Std bilge pump 15
11 Refrigerator 10
12 Comfort 15
13 Navigation central unit 10
14 VHF 10
15 Port bilge pump 10
16 Spare 2 15
17 220V AC sockets 10
18 220V AC battery charger 10
19 220V AC water heater 10
20 220V AC spare 10
