1/ Loosen the lock nut.
2/ Assemble the saddle onto the bed of
the lathe. Ensure that the “V” clamp at
the front is engaged with the lathe bed.
3/ Engage the “V” clamp at the rear of
the lathe and tighten the lock nut.
4/ You will have to adjust the lock nut
so that the clamping handle at the front
of the saddle is in a comfortable
position when the saddle is locked.
5/ To disassemble reverse the
procedure.
Note the bowl turning saddle is the
larger of the two.
Fit the tool rest, adjust to the height
that suits the job that you are doing and
lock with the clamp handle.

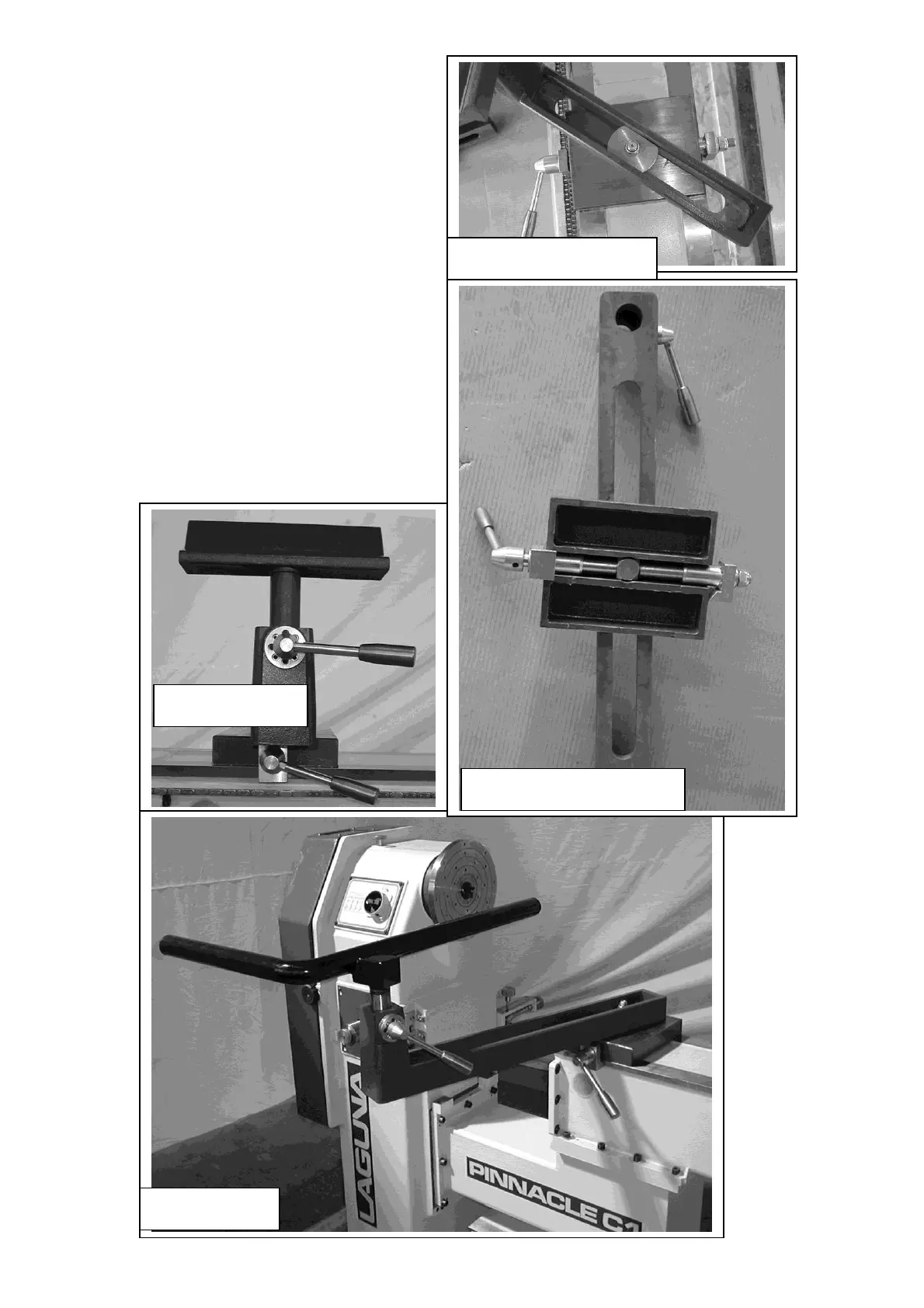

Tool rest fitted to lathe
