4/ Loosen the chain guard plate and remove.
The plate has keyhole slots for easy removal.
5/ Loosen the chain by releasing
the chain cam and slide the chain
block off.
6/ Pull the chain through the headstock and
remove it from the drive dog gear. It is not
necessary to remove the chain from the copy
saddle.
7/ Replace the panel and the drive dog to stop
saw dust getting in to the enclosure.
8/ Leave the chain attached to the copy saddle and it is recommended that the chain is
stored in a plastic bag attaches to the copy saddle. This should reduce the possibility
of damage and help to keep the chain clean.
9/ To replace the chain reverse the procedure.

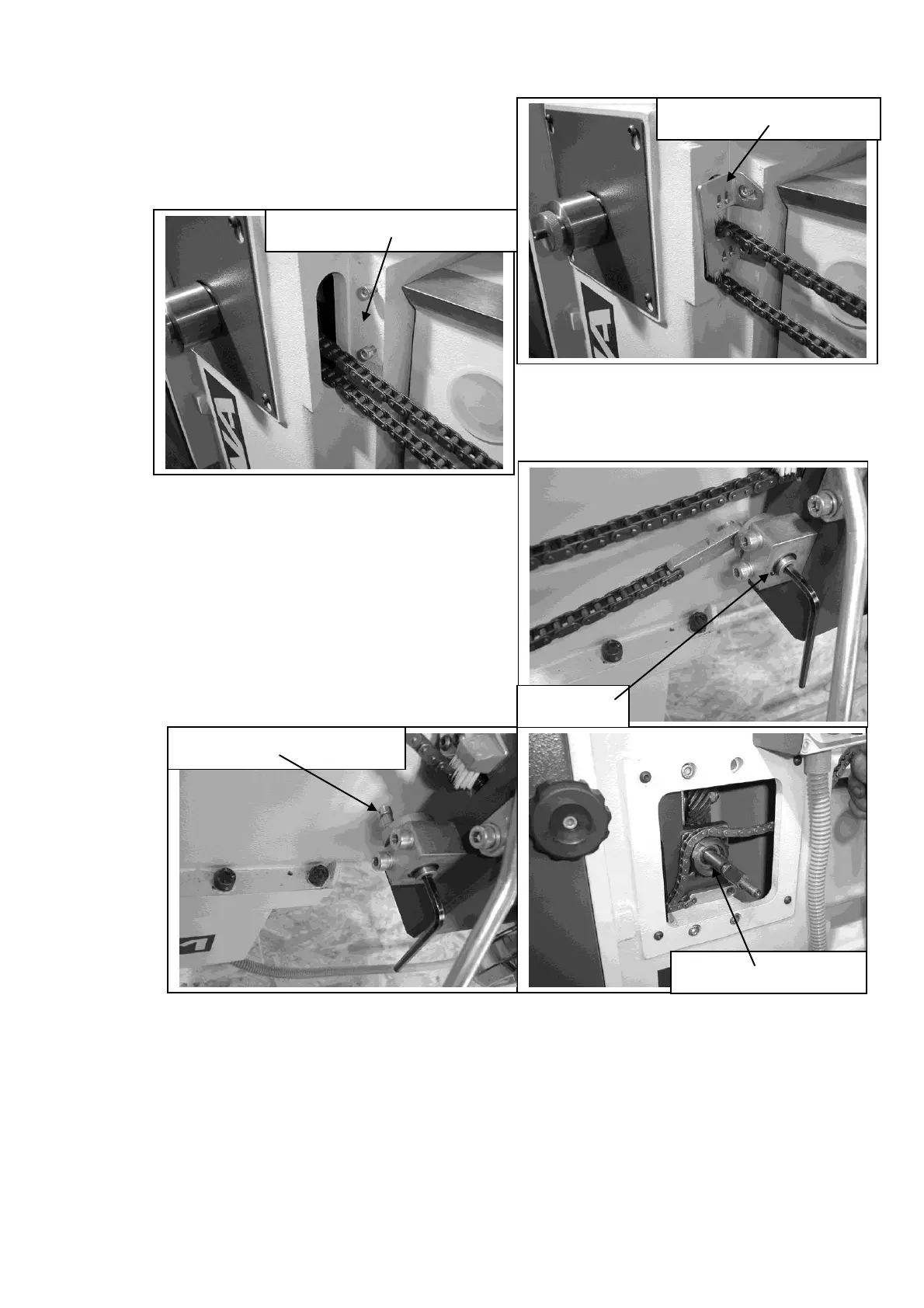

Chain guard plate removed
