Lake Shore Model 102 User’s Manual
3-2 Operation

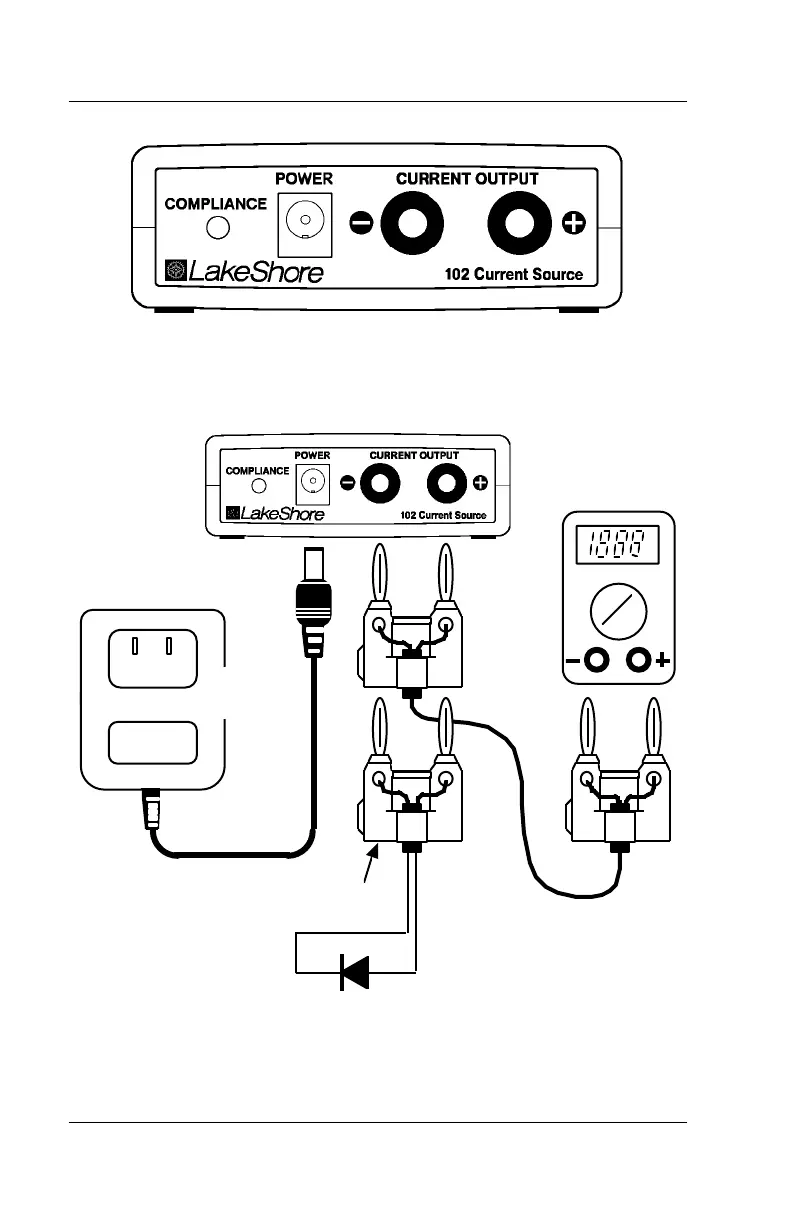

Figure 3-1. Model 102 Front Panel
CAUTION
Indoor Use Only
Wall-Mount AC
Transformer
Model 102 Current Source
Digital
Voltmeter
(Not Supplied)
Sensor
(Not Supplied)
DVM Cable
(Not Supplied)
Double Banana Jacks
C-102-3-2.eps
Figure 3-2. Typical Model 102 Application
