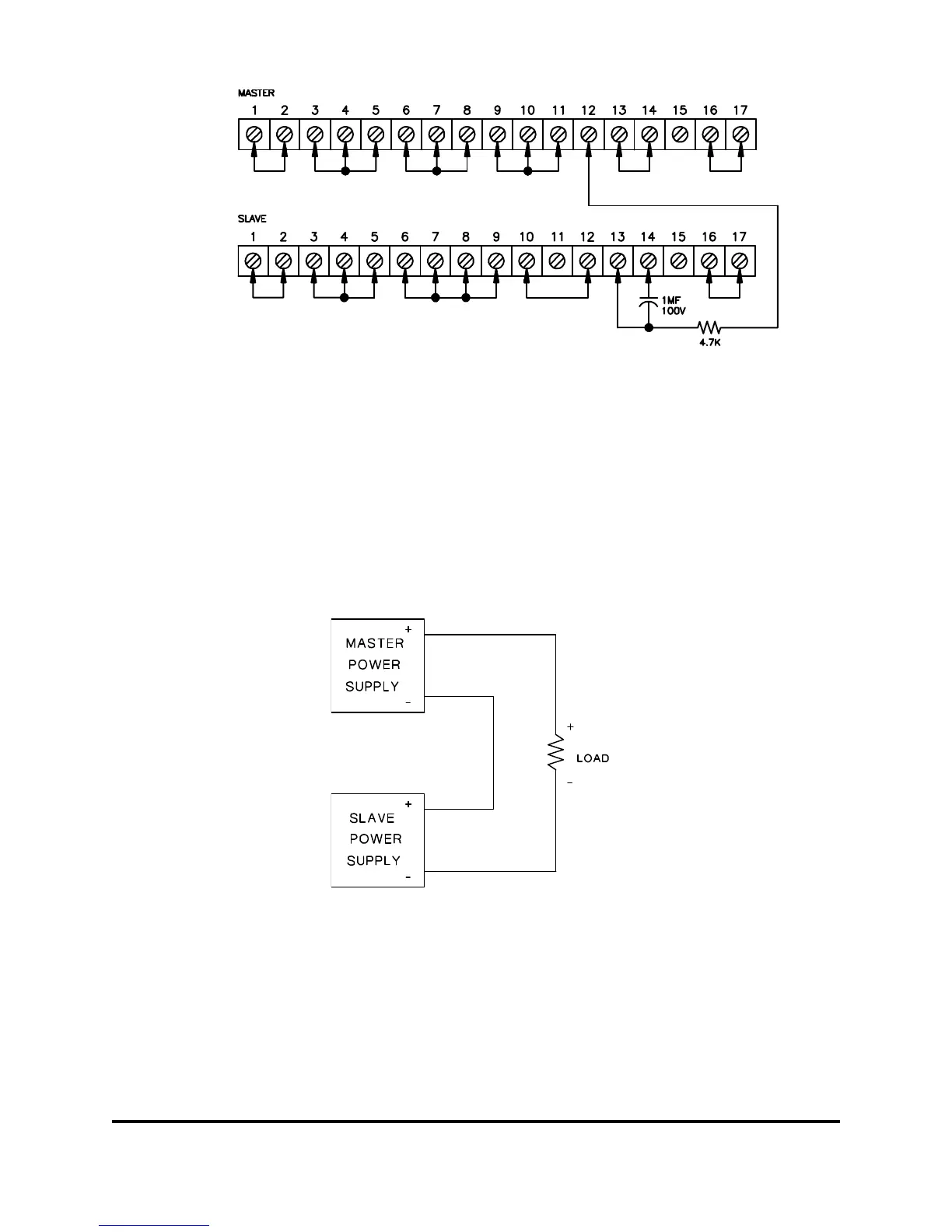

Figure 3.12: Parallel Operation, Master/Slave
3.6 SERIES OPERATION
Two EMS power supplies can be operated in series simply by connecting the negative output
terminal of one unit to the positive output terminal of the other. In this configuration each
unit is adjusted independently, and the total output voltage is the sum of each unit's output
voltage.
NOTE: The voltage at any output terminal must never exceed 600V with respect to chassis
ground. Consult Electronic Measurements, Inc. Engineering Department for series
operation of more than two power supplies.
Figure 3.13: Series Operation
83-473-000 Revision J
3 - 11 Operating Instructions
