lamber F92-dy - Page 46

+
+
-
-
+
+
-
-
Dis.2
L
E
E
S
23,62 in 25,59 in
59,00 in
16,90 in (F94-dy)
35,43 in (F94-dy)
24 in
15,75 in (F94-dy)
14,57 in
1,97 in
2,56 in
25,59 in
A
L
S
E
14,96 in
6,0 in
MINIMUM FLOOR CLEARANCE
HAUTER MINIMAL DU SOL
10,24 in
7.9 in
S

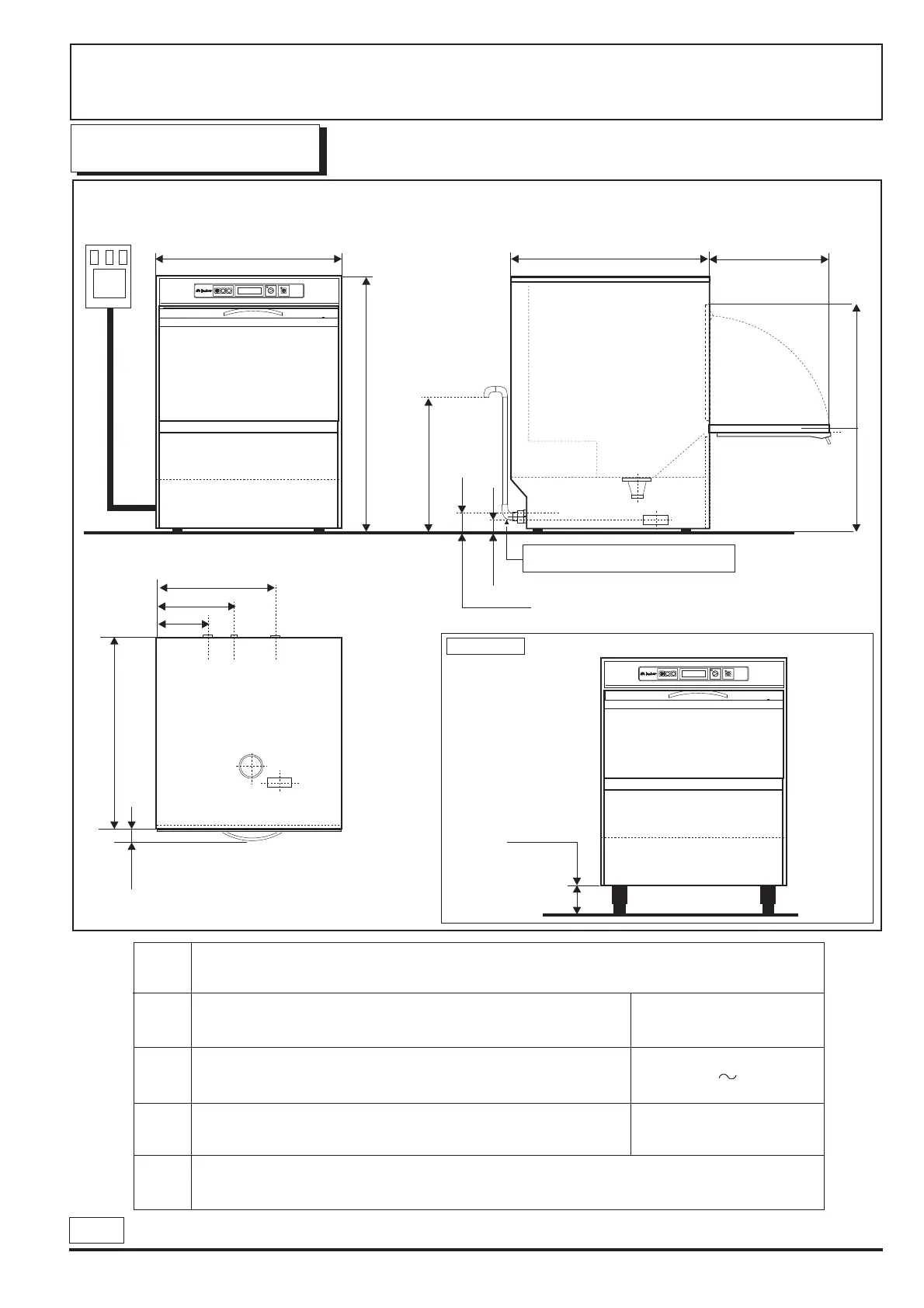

UNDERCOUNTER DISHWASHER/GLASSWASHER
LAVE-VAISSELLE/LAVE-VERRE SOUS TABLE
FREE STANDING/LAVE-VAISSELLE FRONTAL
OPTION
INSTALLATION - BRANCHEMENTS
E
L
S
D
Water inlet - Electrovanne chargement
Electric input - Branchement eléctrique
3/4" G
32 mm - 1"1/4 G
Drain - Evacuation Eau
Drain System:Separate drain pump lift up to 24 inches above floor level
Système de vidange: pompe de vidange séparée soulevée de 61 cm (24 inch) du sol
A
Maximum height for drain to wall
Hauteur maximale pour vidange à mur
Max height
Hauteur max
208/1 60Hz
1,38 in
F92-dy / F94-dy
D
Drain Pipe
Tuyau vidange
Cable Length:
Longueur des cable/Tuyau:
13,78 in (F92-dy)
32,28 in (F92-dy)
12,60 in (F92-dy)
R00-10/07/2016
