lamber F92-dy - Vacuum Breaker Valve Connection

Vacuum Breaker Valve connection:
The machine is supplied with an air gap comply with ANSI/ASSE 1001.

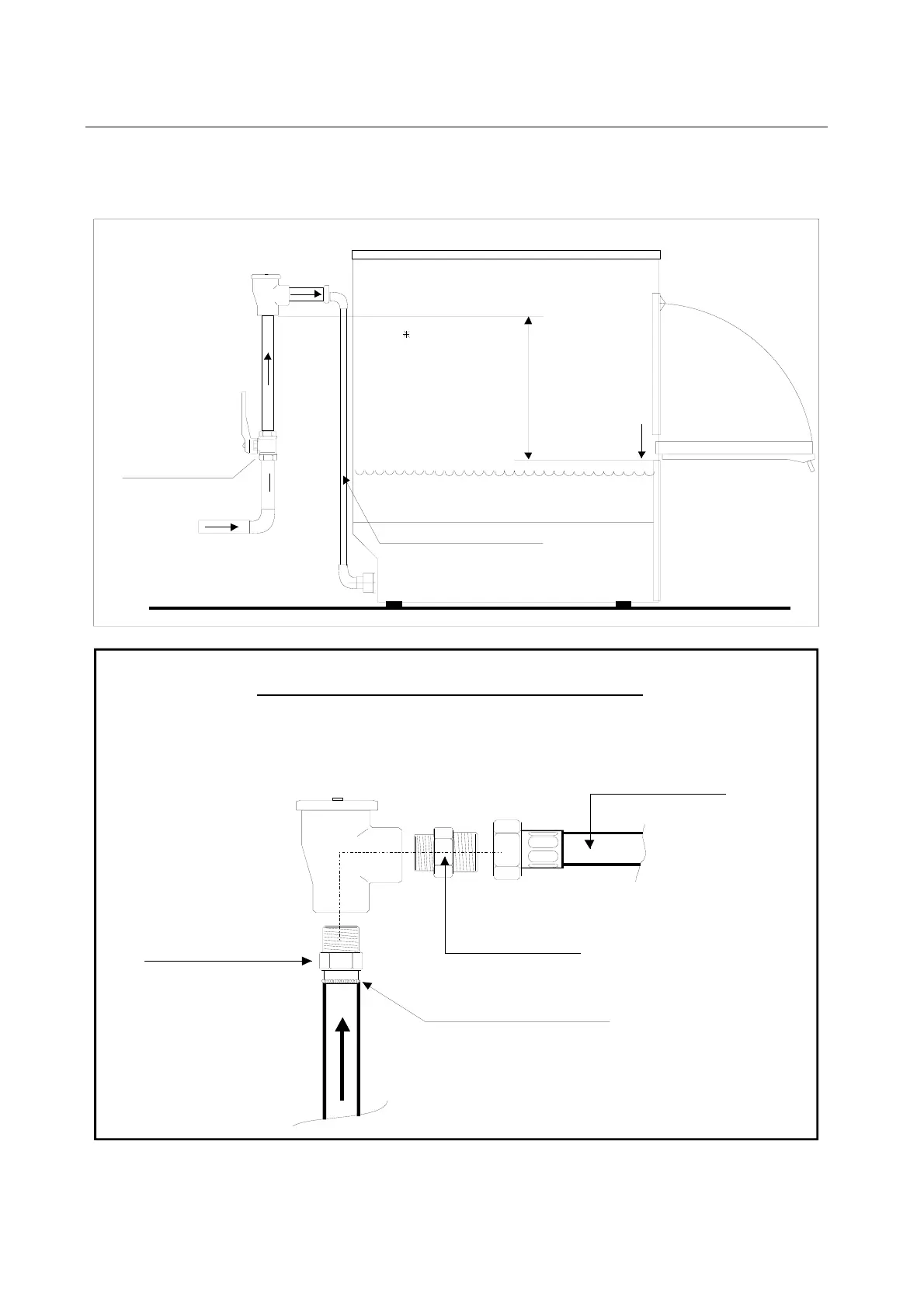

Connect this valve by connecting it to the inlet hose of the dishwasher, as in the picture below , comply with
ANSI/ASSE 1004.
Supply Valve
Water inlet
Inlet Pipe
Vacuum Breakers
min 6”
6” for
ASSE standards
Overflow or Maximum
Liquid Level
Water inlet
to weld !
Vacuum breaker Installation
Dish/Glasswasher
Inlet Pipe cod.0900007
Nipple ½ ”
cod.0200944
Reduced Nipple 3/4 -½”
cod.0200919
”
cod.0500603
Vacuum Breakers
